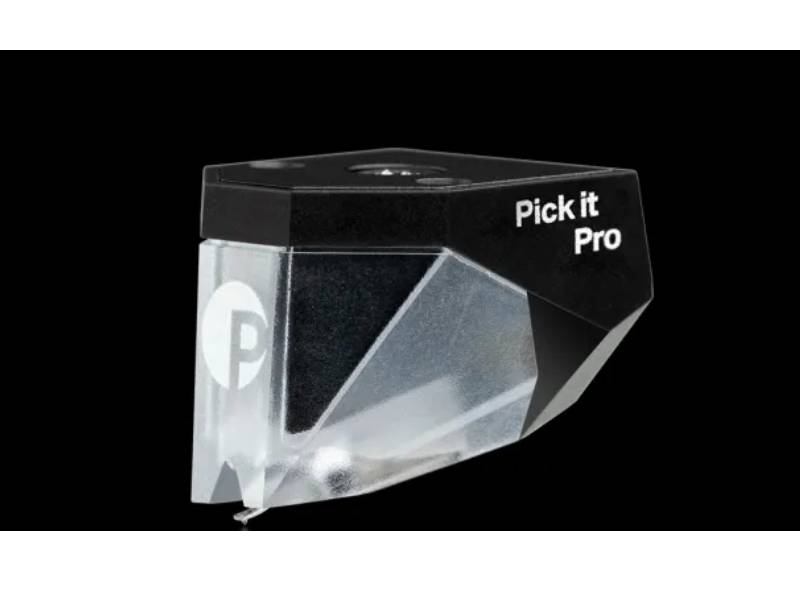

Project Audio Pick it Pro Audiophile MM Cartridge - PROJECTPRO

Model #:PROJECTPRO , UPC #:9120097828408
$159.99

Intensive research, development and listening tests have been necessary to gain the the desired sound from the new Pick it PRO.



THE DIFFERENCE IN SOUND

Cartridges are electromechanical transducers, where mechanical energy is transformed into an electrical signal. The real difference in sound happens here. The colour and life of the music come from the cartridge.

You cannot judge the cartridge by looking at just one specific part. Experience and the art of fine-tuning make a cartridge unique and special. The perfect combination of components is the key to achieve the great charismatic sound of the Pick it PRO.


Specifications
Recommended load resistance:47kOhm
Tracking angle:20°
Internal impedance, DC resistance:750 Ohm
Tracking force, recommended:2,0 g (mN)
Tracking force, range:1,8 - 2,2 g (mN)
Stylus tip radius:r/R 8/18 μm
Stylus type:Elliptical
Frequency response:20 - 20 000 Hz +/- 2dB
Tracking ability at 315Hz:70 μm
Channel separation at 1 kHz: 22 dB
Output voltage at 1 kHz: 4 mV
Cartridge principle: MM (Moving-Magnet)
Internal inductance:450mH
Recommended load capacitance:150-300pF
Cartriddge weight:7,2 g
