This Bowers & Wilkins architectural monitor is designed to be used anywhere: it's perfect for use around the pool or mounted outdoors year-round, thanks to its weather resistance.
Flexible, durable and great-sounding.

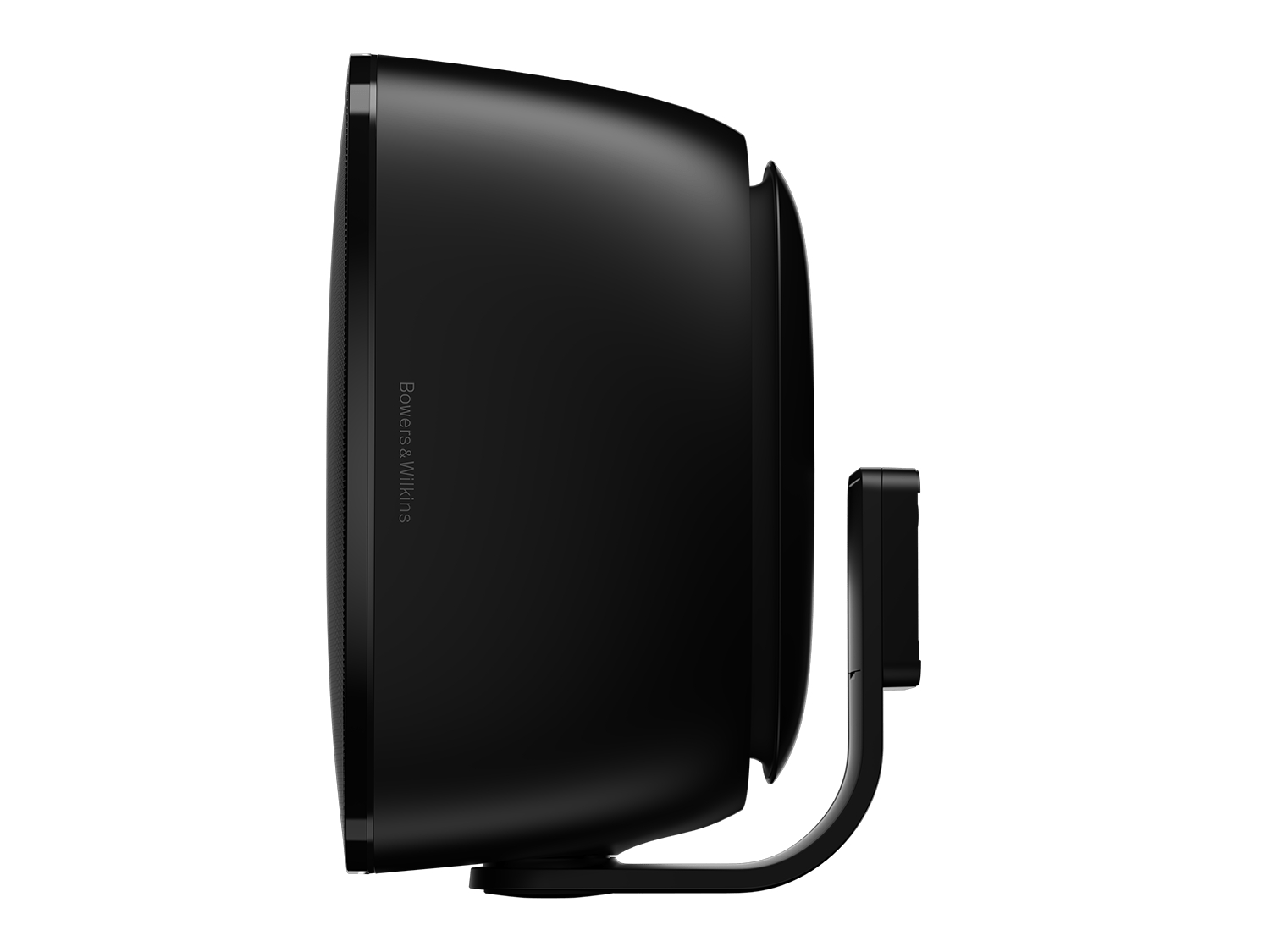

The easy-install bracket allows the AM-1 to be mounted vertically or horizontally, for total flexibility of installation.
Better bass, sealed tight

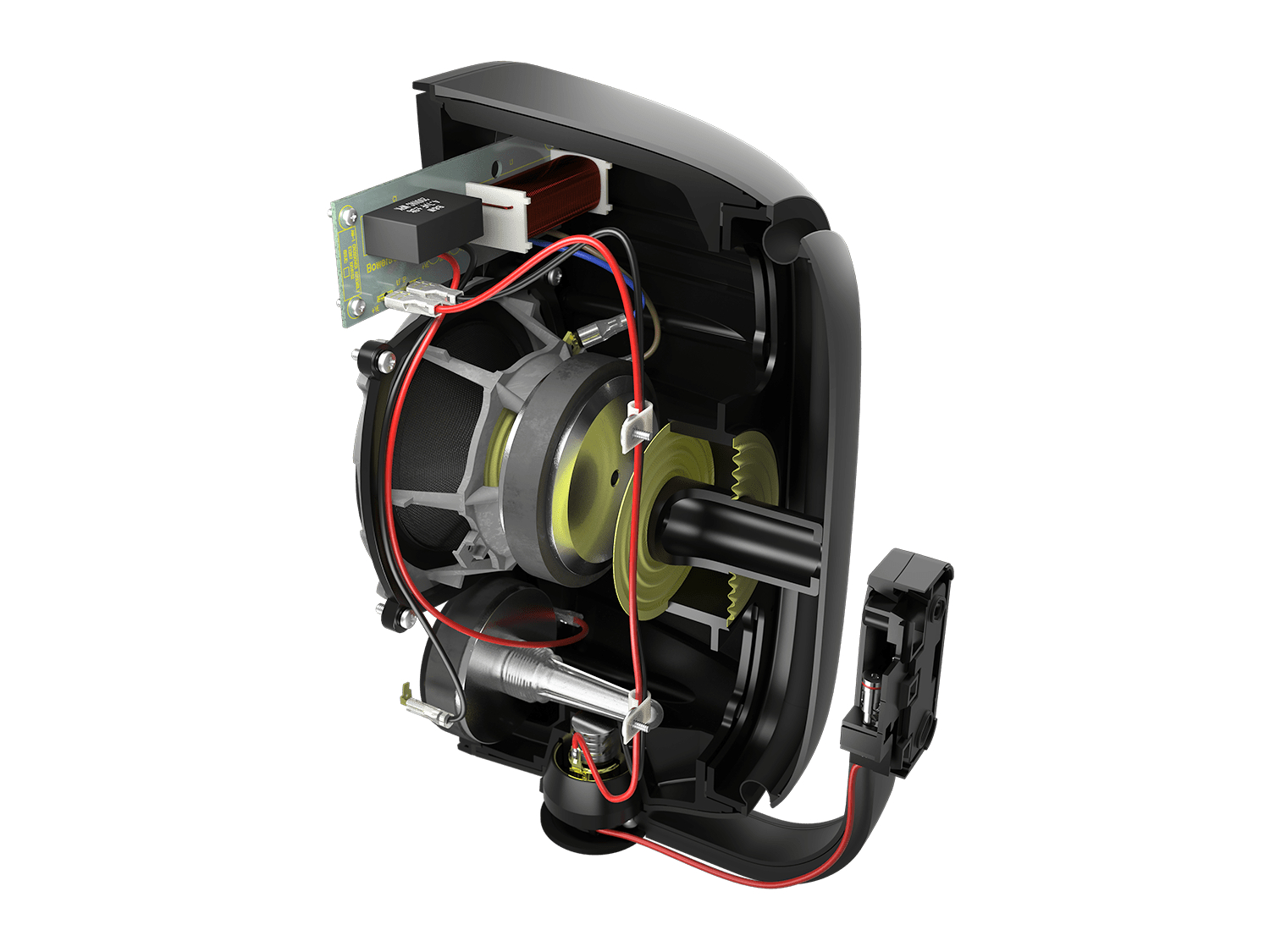

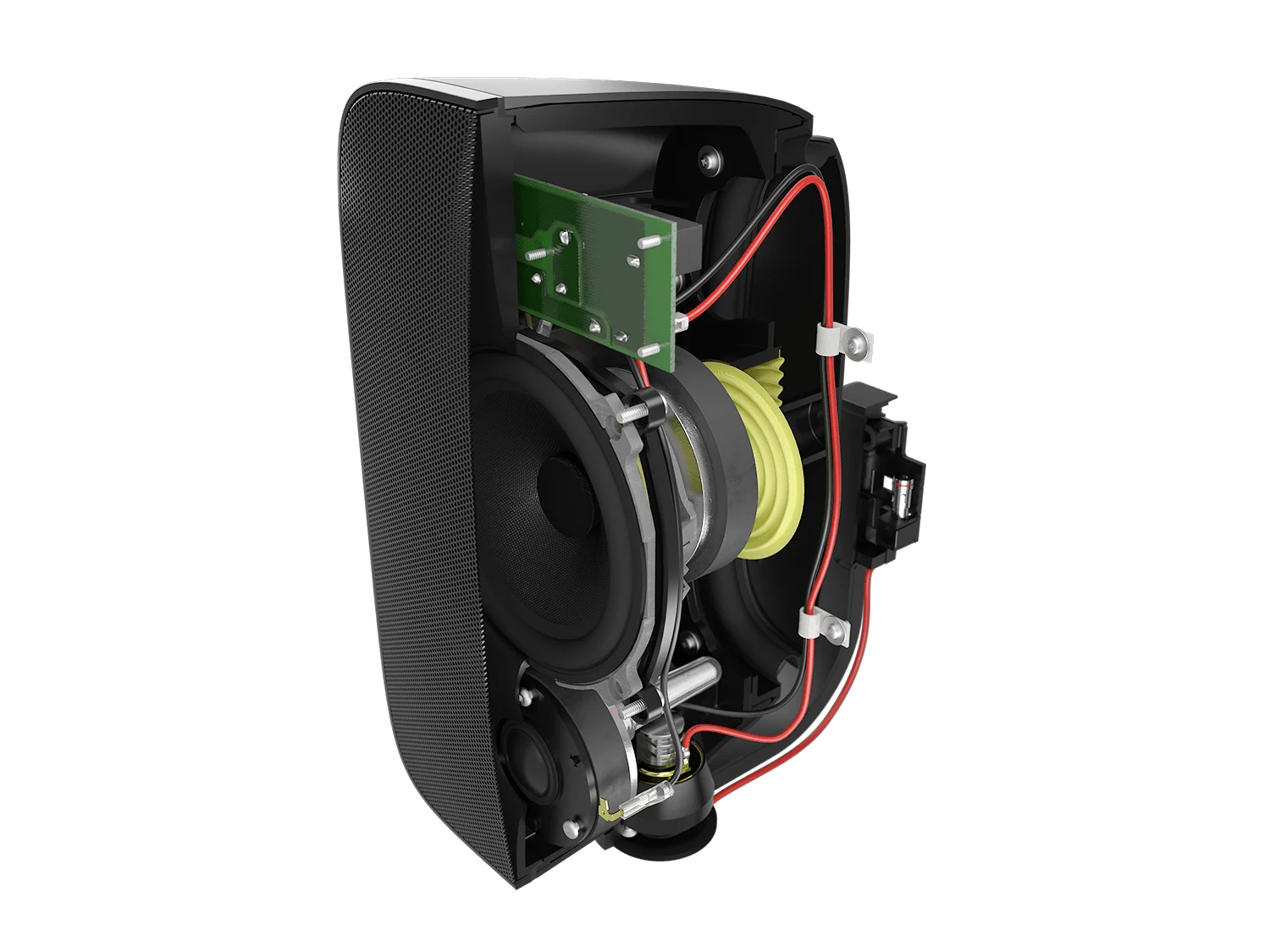

AM-1 needs a sealed enclosure to shrug off the rain and splashes, but that's not great for solid, powerful bass. So Bowers & Wilkins engineers designed this clever auxiliary bass radiator to give extra low-end punch from a compact enclosures.
Sound where you want it
We wanted to keep the AM-1 small, yet tough and flexible, so the combination of a slender wall-bracket, a clever one-plug mounting system and 220 degree rotation means we can deliver your music wherever you want it – indoors or out.
|Technical features||Nautilus™ tube loaded aluminium dome tweeter Glassfibre cone bass/midrange Auxiliary Bass Radiator (ABR)|
|Description||2-way system with Auxiliary Bass Radiator (ABR)|
|Drive units||1x ø25mm (1in) aluminium dome high-frequency 1x ø130mm (5in) glassfibre cone bass/midrange|
|Frequency range||-6dB at 46Hz and 50kHz (wall mounted)|
|Frequency response||51Hz - 22kHz on reference axis (wall mounted)|
|Sensitivity||86dB (2.83V, 1m)|
|Total harmonic distortion||<1% 200Hz - 20kHz (86dB, 1m)|
|Nominal impedance||8Ω (5.2Ω min)|
|Recommended amplifier power||20W - 100W into 8Ω on unclipped programme power|
|Dimensions (Includes wall bracket)||Height: 310mm (12.25in) Width: 180mm (7in) Depth: 210mm (8.25in) Net weight 4Kg (8.8lb)|
