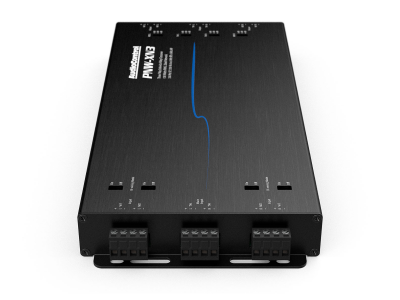

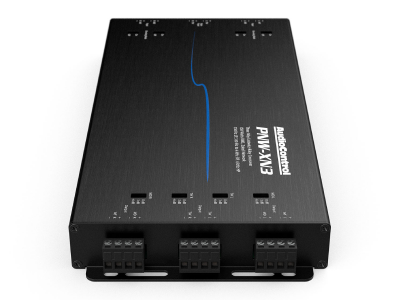

AudioControl PNW Series 3-Way Crossover Network - PNW-XN3
Model #:PNW-XN3
Easily create a 3-way speaker system by adding PNW-275 to either PNW-65CS2 or PNW-69CS2. Configurable from 2, 4 or 6 channels of input.
Compatible With
- PNW-65CS2
- PNW-69CS2
- PNW-275
Features
- 2nd Order Linkwitz-Riley Crossover Slope with Zobel Networks
- 350 Hz LP (PNW-65/PNW-69), 350 Hz to 4 kHz BP (PNW-275), 4 kHz HP (PNW-1)
- 150 Watts RMS
| Dimensions | |
|---|---|
| Length | 10.6 in / 270 mm |
| Width | 5.12 in / 130 mm |
| Height | 1.13 in / 28.6 mm |
| Specifications | |
| Crossover Type | 2nd order Linkwitz-Riley |
| Filter Type | HP / BP / LP |
| XO Frequency | 350Hz LP / 350-4k BP / 4K HP |
| Slope (Octave) | -12 dB |
| Power Handling (RMS/Max) | 150 Watts / 200 Watts |
| Attenuation (Tw / Md) | 0 / -3 / -6 dB |
| Recommended Speaker Set 1 | PNW-65CS2 + PNW-275 |
| Recommended Speaker Set 2 | PNW-69CS2 + PNW-275 |
| IN THE BOX: | PNW-XN3, Manual, Warranty |
