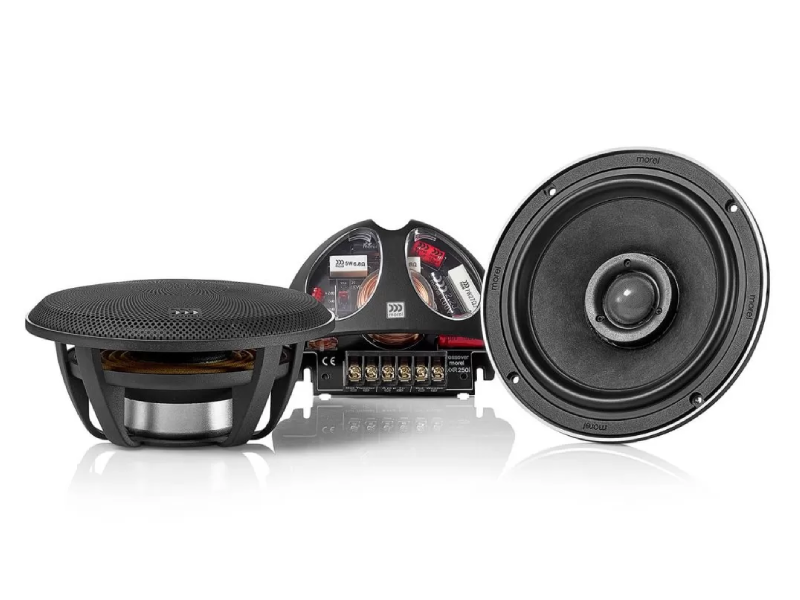

Morel 2 Way Coaxial Speaker - MOHYB-INT-42

Model #:MOHYB-INT-42
WAS $1,199.95
$1,099.95

Embracing Morel’s legendary craftsmanship, engineering, and innovation, the latest Hybrid systems define an ever-evolving concept of high-fidelity speaker design. Now in their fifth generation, the new Hybrid and Hybrid Integra systems give a further refined listening experience, captivating you with the raw emotions of listening to live music. Their subtle balance of resolution, power, and efficiency has been further optimized to exceed expectations regardless of what genre of music you enjoy.

The Integra, Morel’s point source system, is an innovative landmark in speaker design. It utilizes point-source topology to eliminate acoustic problems inherent in conventional coaxial systems. By creating a single sound source on the same axis, the tweeter and woofer seamlessly integrate, generating Omni-directional time alignment, heightened imaging, and sound dispersion.

Now the Hybrid is available in 2-way and Integra point source (coaxial) solutions, as well as a new 3-way system to fit nearly any system requirement.

C.A.R FILTER
Controlled Acoustic Resistance – The C.A.R. Filter™ improves the acoustic loading by controlling airflow within the driver, mimicking the effects of a cabinet while improving power handling by 30%. This provides greater control over the cone movement for improved bass dynamics.

EVC MOTOR
Morel speakers with EVC™ technology utilize voice coils that are up to three times larger than those used in conventional loudspeakers, enabling improved heat dissipation, power handling and linearity. The EVC™ design moves the magnetic motor system to within the voice coil, eliminating stray magnetic flux by effectively directing all the magnetic energy to the voice coil. The EVC architecture is over 90% more efficient than conventional design, magnetically shielded, and highly compact.

HEXATECH™ ALUMINIUM VOICE COIL
Made from 100% aluminum wire shaped like a honeycomb, the Hexatech™ voice coil reduces air gaps in the coil windings, thereby increasing efficiency by up to 20%. Being lightweight, Hexatech™ voice coils are largely responsible for the extraordinary fast transient response Morel drive units are known for.

HYBRID MAGNET MOTOR
The Hybrid motor drive system uses a ferrite magnet together with a very powerful neodymium magnet. Combined they create a compact, lightweight motor system that is up to four times more powerful than conventional designs of the same size. With Hybrid, more amplified power is converted into sonic energy for flawless performance, even in a small driver.

INTEGRA
Derived from the word “integrate”, Integra is a speaker consisting of both a woofer and tweeter that share a common chassis. Unlike a coaxial, its recessed tweeter is concentrically aligned with the woofer cone. This minimizes phase error and allows the sound field to be constant in all directions, creating a near-perfect time alignment.

PAPER CONE
In use since the first loudspeakers, the paper continues to be an exceptional material of choice. Morel’s latest paper composite cones are ultra-lightweight, making them an exceptional pairing for drivers using smaller motors and voice coils.

Specifications
CROSSOVERMXR250.4i
FREQUENCY RESPONSE (HZ)80-25000
SENSITIITY (2.83V/1M)(DB)92
POWER HANDLING (WRMS) / PEAK POWER (W)80 /250
SIZE & CONFIGURATION4" 2-way
