7.2ch. 8K AV Receiver with HEOS® Built-in and Voice Control
Drive exquisitely detailed home cinema with the 7.2 channel 8K UHD AV receiver. Delight in the most musical sound for any source — from home theater, to vinyl, to digital streaming. Whether you’re watching classic film noir or hosting dinner with friends, it’s the perfect sonic accoutrement. Totally immerse yourself in movies and TV with elevated, high-resolution surround sound formatting from Dolby Atmos®, Dolby Atmos Height Virtualization Technology, DTS:X® and DTS Virtual:X™. Stream music from leading services and control the SR5015 with voice control compatibility via Amazon Alexa, Google Assistant, Apple Siri and Josh.ai.
Enjoy exquisite video performance thanks to the latest HDMI technologies such as 8K/60Hz pass-through and upscaling, various HDR format support including HDR10, HDR10+, Dolby Vision, Hybrid Log-Gamma (HLG) and Dynamic HDR. Game with better immersion thanks to 4K/120Hz pass-through, Variable Refresh Rate (VRR) and Auto Low Latency Mode (ALLM).
Extensively tuned by world-renowned sound acousticians at the most state-of-the-art facilities, the new Marantz SR5015 leverages decades of experience in Hi-Fi to drive exceptional, audiophile-quality surround sound for all your entertainment.
- Performance, power and connectivity to suit your audio preferences:
- 7.2 channel discrete power amplifier, 100W per channel (8 Ohm, 20Hz-20kHz, THD: 0.08%, 2ch. drive).
- 8K/60Hz and 4K/120Hz pass-through support for every entertainment need:
- With the latest technology in HDMI support, enjoy 8K quality video from your 8K source devices. 8K upscaling is available on all 6 HDMI ports.
- Support for the most advanced object-based audio formats:
- Dolby Atmos®, Dolby Atmos Height Virtualization Technology, DTS:X® and DTS Virtual:X™ processing are all supported to allow you to listen to immersive, multi-dimensional audio.
- Enhanced Audio Return Channel (eARC) HDMI support:
- Through the main HDMI output, connect your TV with eARC HDMI support to allow uncompressed and object-based audio formats like Dolby Atmos® and DTS:X® directly from a smart TV app to your AV receiver.
- Bringing you the latest in video compatibility:
- Support for the latest HDR formats including HDR10, HDR10+ (New in 2020), HLG, Dolby Vision, 4:4:4 color resolution and BT.2020, as well as Dynamic HDR (New in 2020) provides exceptional picture quality for brightness, clarity and contrast.
- The greatest technology for home cinema:
- With 8K/60Hz pass-through and upscaling, Dynamic HDR and Quick Media Switching (QMS), enjoy crystal clear picture and accurate detail.
- Advanced gaming specifications:
- With 4K/120Hz pass-through, Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM) and Quick Frame Transport (QFT), experience gaming thrills with amazing imaging and reduced lag.
- High-resolution streaming for audiophile approved sound:
- Ability to decode ALAC, FLAC and WAV lossless files up to 24-bit/192-kHz; DSD 2.8MHz and 5.6MHz tracks — enjoy your music exactly as the artist intended.
- Exclusive components elevate Marantz sonic signature:
- Marantz proprietary HDAM circuit boards, Current Feedback circuitry, AKM AK4458 32-bit D/A converters, and Hybrid PLL Clock Jitter Reducer produce more detailed, dynamic sound.
- Stream music from your favorite sources:
- Play songs from Spotify, Pandora, TIDAL and more via AirPlay 2, Bluetooth, Wi-Fi and HEOS® Built-in.
- Features HEOS® Built-in:
- Advanced technology enables multi-room audio, voice control and digital music streaming throughout your entire home.
- Supports all your favorite voice assistants:
- With the SR5015, simply use your voice to control your preferred voice assistant like Amazon Alexa, Google Assistant, Apple Siri and Josh.ai.
The Most Musical Sound
Extensively tuned by Marantz sound masters at the most state of the art facilities to deliver an exquisite sonic signature. No component leaves the hands of the Marantz sound masters until it passes rigorous testing. Envelop yourself with the most musical sound, from any source.

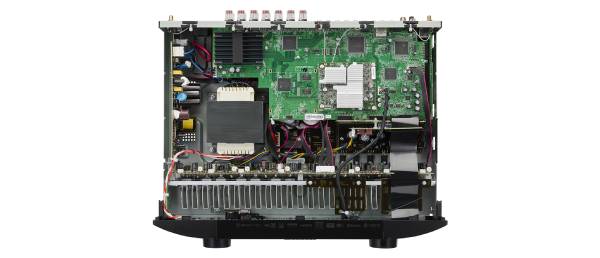

Powerful 7-Channel Discrete Amplifier
Featuring discrete high-current power amplifiers on all channels, the SR5015 delivers 100W of power per channel (8 Ohm, 20Hz-20kHz, THD: 0.08%, 2ch. drive). With low impedance driver capability, it offers operational stability with a wide range of speakers for balanced, quality sound. Auto Eco Mode adjusts power output to speakers based on volume level and on-screen eco meter, delivering power consumption reduction in real-time without sacrificing superb Marantz sound.
Advanced 8K HDMI Connectivity with eARC Support
The new Marantz SR5015 includes 6 HDMI inputs and 2 outputs for all your favorite sources. One dedicated 8K input supports 8K/60Hz and 4K/120Hz pass-through capability, 4:4:4 Pure Color sub-sampling, Dolby Vision, HLG, HDR10, 21:9 video, 3D and BT.2020 pass-through. Additionally, the latest HDCP 2.3 copy protection standard is supported on all HDMI inputs. Showcasing the latest HDMI technology and specifications, the new SR5015 lets you take home entertainment to the next level with HDR10+, Dynamic HDR, ALLM, VRR, QMS and QFT support. The video processor is capable of upscaling native video sources up to 8K quality. The SR5015 also features HDMI eARC support, which supports 3D audio formats like Dolby Atmos® and DTS:X® in masterful quality from your TV source. Conveniently, your HDMI inputs automatically rename themselves with information provided by the source (when available).
Supports Latest Object-based Audio Formats
Immerse yourself in multi-dimensional audio with the latest surround formats, including Dolby Atmos®, Dolby Atmos Height Virtualization Technology, DTS:X®, DTS Virtual:X™.
Dolby Atmos and Dolby Atmos Height Virtualization Technology
Feel every dimension in Dolby Atmos®. Enjoy a 5.1 or 7.1 surround sound speaker system and four additional overhead speakers or four Dolby Atmos elevation speakers for the ultimate home theater experience — including Dolby Surround upmixer for legacy content.
For those without in-ceiling speakers, Dolby Atmos Height Virtualization Technology leverages Dolby’s deep understanding of human audio perception to create the sensation of overhead sound from listener-level speakers.
DTS:X and DTS Virtual:X
DTS:X® immersive audio content places sound where it would naturally occur in space, creating life-like, multi-dimensional audio. The included spatial remapping engine of DTS Neural:X™ offers improved immersion and heightened realism for all your favorite movies.
DTS Virtual:X™ provides immersive audio without height channels, creating virtual height effects in a 7.1, 5.1 or 2.1 speaker arrangement.
HDMI eARC Object-Based Audio Support
eARC (enhanced Audio Return Channel) supports the transmission of immersive audio from your TV with a single HDMI cable, simplifying overall setup.
Elevated Home Cinema
The new SR5015 lets you enjoy all your entertainment in the highest quality formatting available. Screen your movies in 8K with 8K/60Hz pass-through or upscaling, and take advantage of HDMI technologies like Dynamic HDR and Quick Media Switching (QMS) to eliminate video delay.
The new SR5015 offers gaming in its highest quality to date. Enjoy your gaming with 4K/120Hz pass-through, as well as Variable Refresh Rate (VRR), Quick Frame Transport (QFT), and Auto Low Latency Mode (ALLM), which reduces or eliminates lag and frame tearing for a smoother, lag-free gaming experience.
Dual Subwoofer Outputs
Supports dual subwoofers for even, low-frequency bass response within your listening environment. Enjoy accurate bass with no audible peaks or dips, no matter where you place your subwoofer. Connected subwoofers can be calibrated independently thanks to Audyssey Sub EQ HT technology for more seamless bass performance tailored to any room.
Supports Major Voice Control Agents
Enjoy effortless voice control and total flexibility from the leading voice agents. Speak commands with Amazon Alexa, Google Assistant, Apple Siri and Josh.ai. Ask to play your favorite music, turn the volume up, skip to the next track, switch inputs and more. Switch between voice agents or pick a favorite to use — you’re in control.
(Functionality and availability vary by voice agent.)
Amazon Alexa Voice Control
Use your voice to stream your favorite music services through Alexa to the SR5015 with HEOS® Built-in. Ask Alexa to play music from Spotify, Pandora, TIDAL and more. Turn volume up or down, pause, mute and play the next song — all with your voice.
To start streaming with Alexa voice commands, open the Alexa app and select “Skills.” Add HEOS Home Entertainment to enable. Then, go to Smart Home in the Alexa app menu and choose Devices and Discover or say “Alexa, discover my devices.”
Google Assistant Voice Control
Ask your Google Home, Google app or other devices with Google Assistant built-in to control content across your listening environment. Start music in the HEOS app, then ask your Google Assistant to control volume, play, pause, skip tracks and more. “Works with the Google Assistant” feature is always improving.
Josh.ai Smart Home Voice Automation
An elevated voice agent for the high-end smart home, Josh.ai offers flexible voice control for nearly any aspect of your day-to-day life and entertainment environment. Use voice commands to control the thermostat, lights, home appliances, speakers, AV receiver and more. Josh.ai is installed by custom integrators and accessed through an app on your phone or tablet.
Works with iOS and Android devices.
AirPlay 2 and Apple Siri Voice Control
Stream audio from your favorite music services like Apple Music and Spotify or watch videos from services like YouTube and Netflix from any iPhone, iPad, Mac or Apple TV. Hear audio perfectly synced to your speakers from AirPlay 2 sources.
AirPlay 2 also supports multi-room audio — wirelessly stream content to multiple AirPlay 2 compatible devices simultaneously with improved audio buffering for smooth audio playback. AirPlay 2 provides control and grouping of compatible audio devices within the Apple Music or Home app. Use AirPlay 2 in-app or control with your voice via Siri.
Built-in Wi-Fi and Bluetooth Wireless Streaming with Dual Diversity Antennas
Featuring dual diversity antennas, the SR5015 lets you stream your favorite audio tracks wirelessly via Wi-Fi and Bluetooth. The dual diversity antenna system ensures stable streaming even in congested urban environments, and the Wi-Fi function features 2.4GHz (11b/g/n), 5GHz (11a/n) technology for compatibility with the widest range of smart devices. The SR5015 offers quick and easy push-button Wi-Fi protected setup and simple iOS Wi-Fi sharing.
Bluetooth Audio Transmission
Watch the latest movie or listen to music without waking the house. The SR5015 allows you to play audio on both Bluetooth headphones and connected speakers simultaneously. If you have a family member or a friend who is hearing impaired, this is a great option to improve dialogue without raising the overall volume.

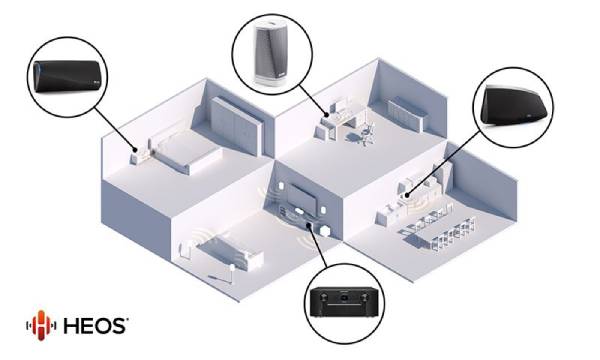

With HEOS® Built-in technology, enjoy your favorite music in any room of your home for a wireless, whole-home audio experience. Play the same song in every room or select a different song for each connected room — the choice is yours. Enjoy music from Spotify, Pandora, TIDAL and more or your local music file libraries. With additional HEOS® Built-in components, like HEOS-capable speakers, play all your music in one room or many.
Hi-Res Audio Support
Ability to decode Hi-Res audio ALAC, FLAC and WAV lossless files up to 24-bit/192-kHz, as well as DSD 2.8MHz and 5.6MHz tracks (the audiophile format of SACD) lets you enjoy each note exactly as the artist intended. Listen to your music via the front panel USB port or over network sources.
Advanced 32-bit D/A Conversion on All Channels
Advanced reference-class 32-bit AKM AK4458 D/A converters on all channels for optimum fidelity and the widest dynamic range with the lowest distortion. This ensures consistent high-fidelity and precise channel matching across all channels for the ultimate listening experience.
Marantz HDAM and Current Feedback Topology
Features proprietary HDAM (Hyper Dynamic Amplifier Module) circuit boards, providing superior low-noise wideband performance and an ultra-fast slew rate for maximum dynamic range to support high-resolution audio formats. Current Feedback Topology technology, another proprietary Marantz innovation, delivers wide closed-loop bandwidth and very high slew rate for superior fidelity with wideband audio sources.

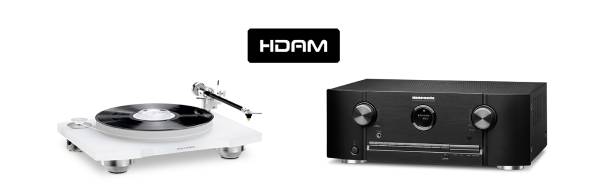

Integrated Phono Input with HDAM EQ Stage
Easily connect your analogue turntable to the receiver and enjoy the warmth and realism of your vinyl collection. The HDAM component of the Marantz SR5015 outperforms op-amp solutions due to its high speed and maintains a clean audio signal for exceptional sound performance.
“Roon Tested” Certified
All new Marantz AV receivers are now Roon Tested. Get more out of your digital music library with searchable, surfable information about your favorite artists and songs. Find lyrics, concert dates, photos, bios, reviews and more

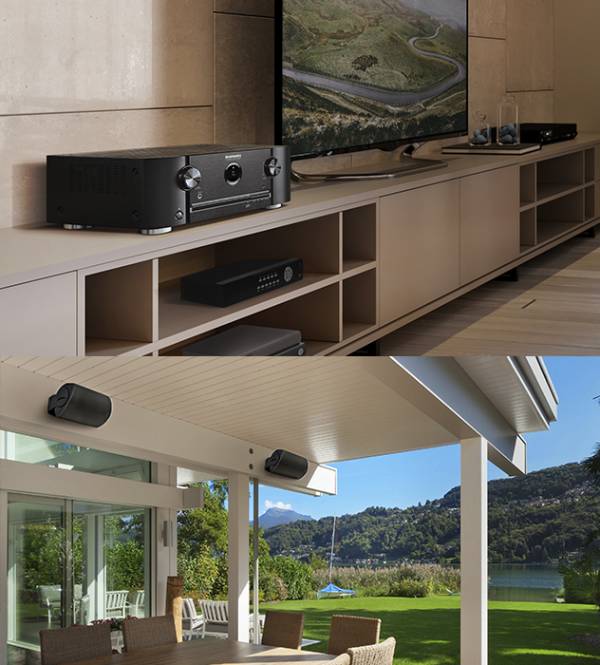

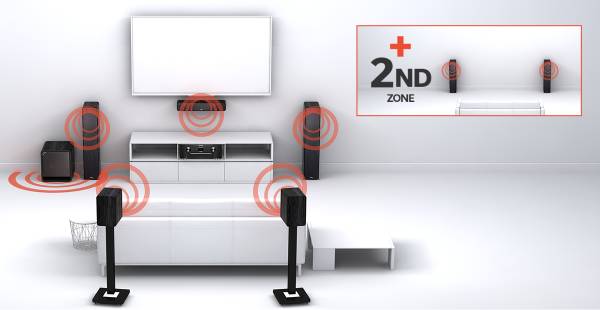

Enjoy 7.1 channel surround sound in your home theater and simultaneously play stereo sound from the same source or another source in a separate room. Simply connect a pair of speakers to the multi-room amplified outputs or hook-up an additional stereo amp and speakers to the Zone 2 pre-outs.
All Zone TV Audio
Share the main zone TV audio in the second zone without losing fully discrete multi-channel playback in the main zone. Select “Source” for the second zone from the AVR remote app so that main zone audio will not switch to stereo PCM.

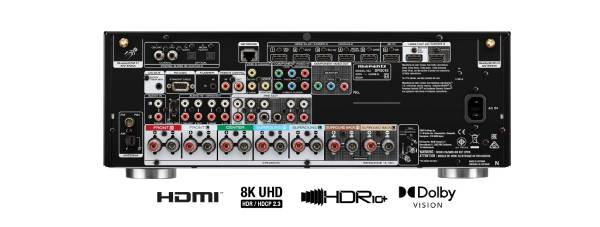

Easy to Setup, Easy to Use
The SR5015 features a horizontal row of color-coded, premium loudspeaker terminals with a set of matching cable-labels supplied to ensure correct hook-up. The included Setup Assistant offers clear, step-by-step graphical on-screen instructions to ensure optimal setup for any configuration, bringing the most out of your home theater setup from the very beginning.
Smart TV Connectivity
Easily control the SR5015 with your Smart TV remote via the HDMI CEC functionality associated with your Smart TV. Simply set “HDMI Control” to ON in your receiver, then set “Smart Menu” to ON to begin controlling the receiver with your TV remote. The Smart Menu home screen gives you quick access to source and surround mode selections, the AV receiver setup menu, and four Smart Select options.
Convenient Smart Select Functions
Four Smart Select function buttons on the included remote allow you to store your preferred or frequently used settings and change them when you want — including input source, volume level, sound mode, Audyssey configuration and even “All Zone Stereo” setting for party mode. With the push of a button, the SR5015 instantly configures the receiver to your desired setting.
Marantz AVR Remote App
The Marantz AVR Remote app for iOS and Android provides complete control over the latest Marantz network AV receivers. Use it to power on/off, adjust volume, input and settings, or switch instantly to the HEOS® Built-in app
Audyssey MultEQ XT For Simple Setup and Room Calibration
Optimize your audio experience with Audyssey MultEQ XT for seamless setup of your listening environment. With the supplied measurement microphone, MultEQ XT analyzes each speaker's output (including the subwoofers) at up to eight measurement locations and generates precision digital filters that optimize each channel for the correct frequency and time domain response. Audyssey Dynamic Volume smooths out disruptive jumps in volume (such as TV commercials), letting you listen at lower levels while still enjoying clear dialogue, music and sound. Audyssey Dynamic EQ provides full-range clarity at any listening level.
Audyssey MultEQ Editor App
The SR5015 supports the Audyssey MultEQ Editor App. Go ‘under the hood’, view and adjust settings for detailed tuning, customize the sound more precisely to the specific problem areas in your room, and tailor the sound to your personal preferences.
- View the speaker detection results, to check correct installation
- View before and after results of the Audyssey calibration, making it easy to identify room problems
- Edit the Audyssey target curve for each channel pair to suit your tastes
- Adjust the EQ frequency adjustment range for each channel pair
- Switch between two high-frequency roll-off target curves
- Enable/disable midrange compensation to make the vocal region brighter or smoother
- Save and load calibration results
The Audyssey MultEQ Editor app, for Android and iOS, is available for purchase from the Apple App Store or Google Play Store.

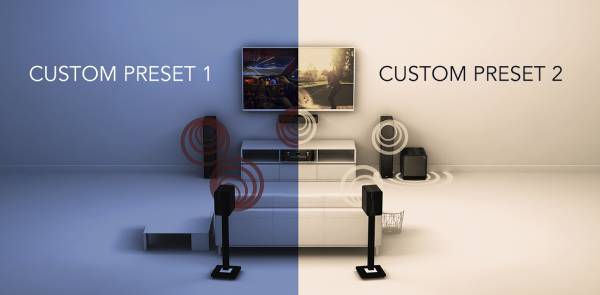

Built-in Dual Speaker Preset Memory
The new SR5015 stores two Audyssey settings and switches between the two settings on the fly, giving you the freedom to tweak your listening experience based on content or listening environment.
External Control Capabilities
Features external RS232 and IP control capabilities for easy customization and compatibility with third-party integration solutions. The Marantz SR5015 offers IP control capability for major third-party control devices, as well as Control4 SDPP (Simple Device Detection Protocol) certification for seamless integration with Control4 home automation equipment. IR (infrared) remote control input and output are included on the rear panel for remote control compatibility with other components in your home theater system.
Advanced Custom Installation Support
Marantz AV receivers offer extended support for easy custom install integration. Features “OvrC” and “Domotz Pro,” two major remote monitoring and management technologies along with dedicated web user interface to set up your AV receiver from a computer on the same network. Let your installer easily monitor the status of connected products and troubleshoot remotely from a separate location or on-the-go.
More Than 65 Years of Audiophile Heritage
Founded in 1953, Marantz has a long and rich history of designing audio components embraced by music lovers and critical listeners around the world. Because Music Matters, the SR5015 carries on the long Marantz tradition of delivering a best-in-class listening experience for music and cinema.
|Analog In / Out||4+1 / No|
|Multi-Room Video Out: Video / HDMI||No/No|
|HDMI In / Out||6 / 2|
|Component In / Out||2 / 1|
|Composite In / Out||2+1 / 1|
|Auto Power off||Yes|
|Optimized Bass Redirection||Yes|
|Variable Cross Over||Yes|
|Firmware Update by Network / USB||Yes/Yes|
|Graphic User Interface - GUI||Advanced|
|FL Display||port hole|
|Auto Speaker Setup by Microphone||Audyssey MultEQ XT|
|Multi-Room / CI|
|DC Trigger Output||1|
|Marantz Remote Bus||Yes|
|IR Flasher In||Yes|
|IP Control / RS232 Control / Web Control / App Control||Yes / Yes/o /Yes|
|Zone HDMI Output from HDMI Source||No|
|Zone Audio Output: Speaker / Preout||Yes/Yes|
|Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog||Yes (2ch) / Yes (2ch) / Yes/ Yes|
|HEOS Link Compatibility: IR/ IP||Yes/Yes|
|HEOS Multi-Room Integrated||Yes|
|Audio Return Channel||Yes|
|DSD Audio Capability||No|
|Picture Adjust / Noise Reduction||Yes/ Yes|
|HDMI Pass-Through in Standby Mode||Yes|
|4K Signal Pass-Through / Scaling / GUI Overlay||Yes/YesYes|
|3D Signal Pass-Through||Yes|
|GUI Overlay on HDMI||Yes|
|Analog to HDMI Scaling||480i/576i up to 8K 60/50|
|HDMI to HDMI Scaling||up to 8K 60/50|
|Video Conversion Analog -> HDMI||Yes|
|HDMI Outputs: Main / Zone||2 / No|
|HDMI Inputs: Back / Front||6 / 0|
|Compatible with Remote APP for Tablets||Android / iOS / Amazon Kindle|
|Compatible with Remote APP for Smart Phones||Marantz 2016 AVR Remote|
|AirPlay Audio Streaming||Yes(AirPlay2)|
|Gapless Playback||Yes(FLAC, WAV ,ALAC ,DSD)|
|FLAC HD 192/24||Yes|
|DSD Audio Streaming||Yes(2.8/5.6MHz)|
|Lossless formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24||Yes/Yes / Yes|
|Lossless formats FLAC / ALAC / WAV||Yes / Yes / Yes|
|Lossy Formats: MP3 / WMA / AAC||Yes / Yes/Yes|
|Network Audio Sharing||Yes|
|HEOS Multi-room and Streaming||Yes|
|Compressed Audio Enhancer: MDAX2||Yes|
|Audyssey APP Support||Yes|
|Audyssey Dynamic EQ / Dynamic Volume||Yes / Yes|
|Clock Jitter Reducer||No|
|Gold plated RCA terminals||No|
|Hyper Dynamic Amplifier Modules (HDAM)||Yes|
|Current Feedback Topology||Yes|
|Power Transformer: Toroidal / EI||EI|
|Copper Plated Chassis||No|
|Discrete Power Amplifier||Yes|
|Max Number of Processing (Preamp) Channels||7.1|
|Dolby ProLogic Ilz / Dolby Surround||No/ Yes|
|Dolby TrueHD / Dolby Atmos/Dolby Atmos Height Virtualization||Yes / Yes / Yes|
|DTS Neo:X / DTS Neural:X||No / Yes|
|Phono (MM) In||Yes|
|Digital In: Optical / Coaxial||2 / 2|
|Multi-Room Out: Analog / Digital||1 / No|
|Multichannel Pre Out||Yes(7.2)|
|7.1 Multichannel Input||No|
|Speaker Terminal: Gold Plated Screw / Regular Screw||No/ Yes|
|Number of Speaker Terminals||7|
|Speaker A / B||assignable|
|Multi-Room Speaker Terminal||assignable|
|Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB||Yes / Yes / No/ No / Yes|
|USB Audio / Made for iPod / Made for iPhone||Yes/No / No|
|Number of poweramps||7|
|Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive)||100 W|
|Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive)||No|
|Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive)||140 W|
|Power Output (6 ohm, 1 kHz, 10% 1ch Drive)||200 W|
|Metal Front Panel||No|
|System Remote Control||RC042SR|
|Pre-Programmed / Learnable / LCD Display||No/ No/No|
|Power Consumption in W||650|
|Power Consumption No-Sound (ECO on/off) in W||45 W / 75 W|
|Standby Consumption in W||0.2|
|CEC Standby Consumption in W||0.5|
|Network Standby Consumption in W||2.7|
|Network Control On Consumption in W||No|
|Maximum Dimensions||TBD Antenna:Horizontal:(W x D x H) in inches - 17.3 x 13.7 x 6.3 Antenna:Vertical :(W x D x H) in inches - (17.3 x 13.7 x 9.1) W/o Antenna:(W x D x H) in inches - 【 17.3 x 13.3 x 6.3 】|
|Weight in lbs.||22.3 (TBD)|
