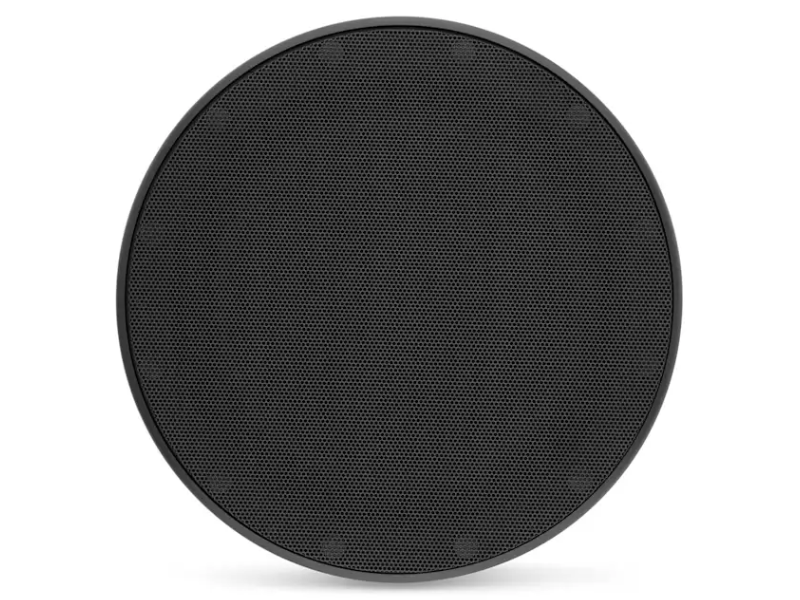

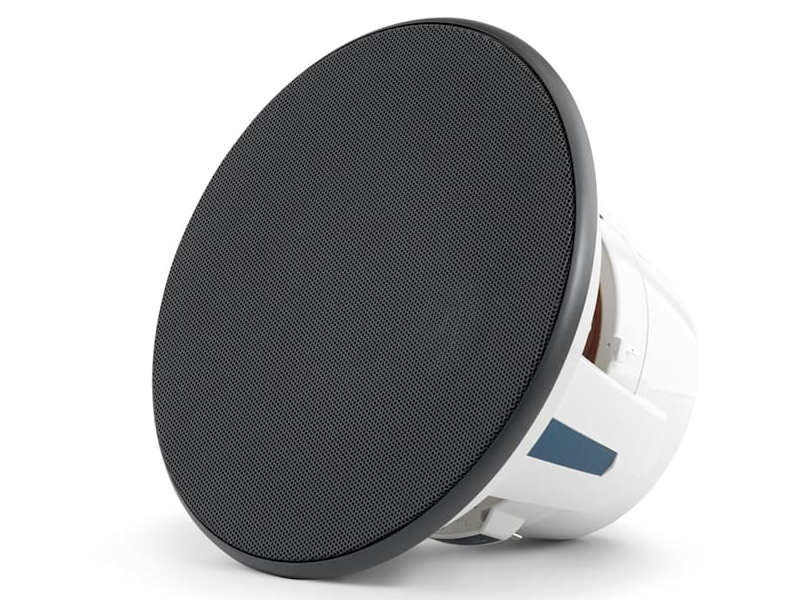

JL Audio M6 Marine Subwoofer 8" with Black Luxe Grille - M6-8IB-L-SbSb-4
| $859.95 |
MAXIMUM PERFORMANCE
Optimized for high-powered operation, M6 marine subwoofers can be installed in various applications and are built to withstand the rigors of marine use.
DELIVERS POWERFUL DEEP BASS IN OPEN-AIR APPLICATIONS
MODELS FOR USE WITH OR WITHOUT A DEDICATED ENCLOSURE
GRILLE AND TRIM RING ARE EASILY REMOVABLE FOR PAINTING
MODELS AVAILABLE WITH PATENTED LED ILLUMINATION
EXCEEDS INTERNATIONAL STANDARDS FOR SALT FOG AND UV EXPOSURE
3-YEAR WARRANTY
WORLD-CLASS PERFORMANCE
This bass will impress you, not only with its sheer level but even more with its smoothness, balance and precision.

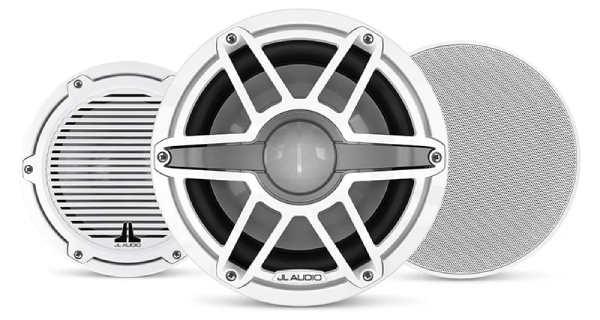

MODEL SPECIFIC
These specialized versions are made for specific applications and optimized to perform in compact enclosures or in infinite baffle installations without dedicated enclosures.
POWERFULLY EFFICIENT

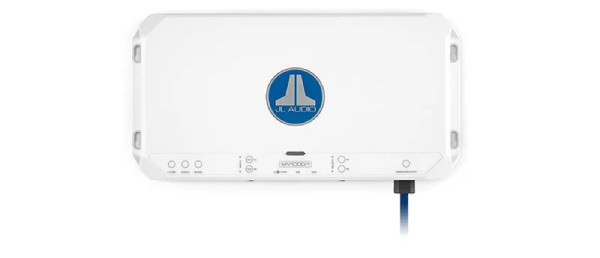

M6 marine subwoofers are designed to benefit from operation with quality amplification.
DMA-OPTIMIZED WOOFERS
Proprietary motor, suspension and cone modeling systems are employed, resulting in reduced distortion, improved transient performance and stellar bass sound quality.
REAL MARINE DUTY
For long-term use, all models are built to withstand saltwater marine environments and deliver years of listening enjoyment.

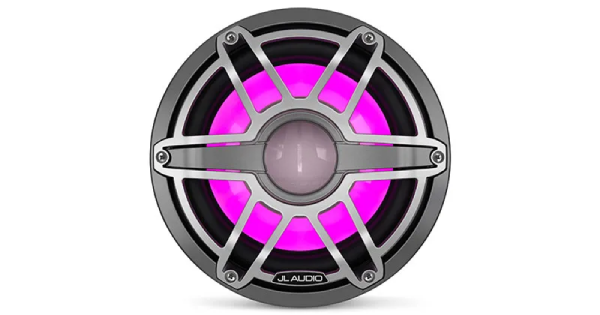

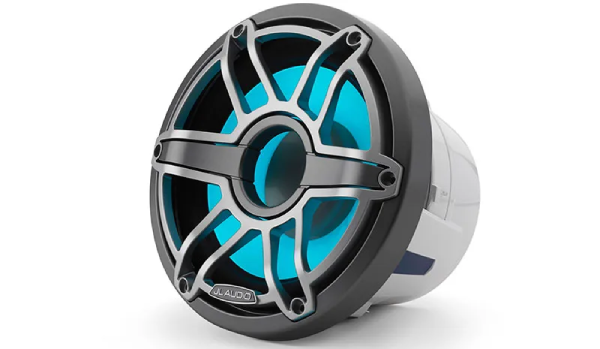

TRANSFLECTIVE™ RGB LED LIGHTING
Get a patented system on sport models for smooth lighting with no hot spots or reflections.
| General | |
|---|---|
| Sizes | 8"/10" |
| Color | White Classic, White Sport or Titanium Sport or Luxe Satin Black or Luxe Satin White |
| Physical dimensions (Diameter) | 8": 8.80" (224 mm) 8" (Luxe): 10.25" (260 mm) |
| Physical dimensions (Depth) | 8" (Classic): 6.37" (162 mm) 8" (Sport): 6.45" (164 mm) |
| Weight | 8": 8.70 lbs (3.90 kg) |
| Speaker type | Infinite Baffle or Enclosed-use Subwoofer |
| Continuous power handling (RMS) | 8": 200 W |
| Sensitivity (SPL @ 1 W/1 m) | 8": 86.8 dB |
| Nominal impedance | 4 Ω |
| Recommended amplifier power (RMS) | 8": 50-200 W |
| LED lighting | yes - Transflective™ (selected Sport models only) |
| LED supply voltage | 10-14.4 VDC |
| LED Load Current @ 14.4 VDC (max) | 8": 486 mA |
| Cone material | Injection-molded, mica-filled polypropylene |
| Warranty | 3 years |
| Connections | |

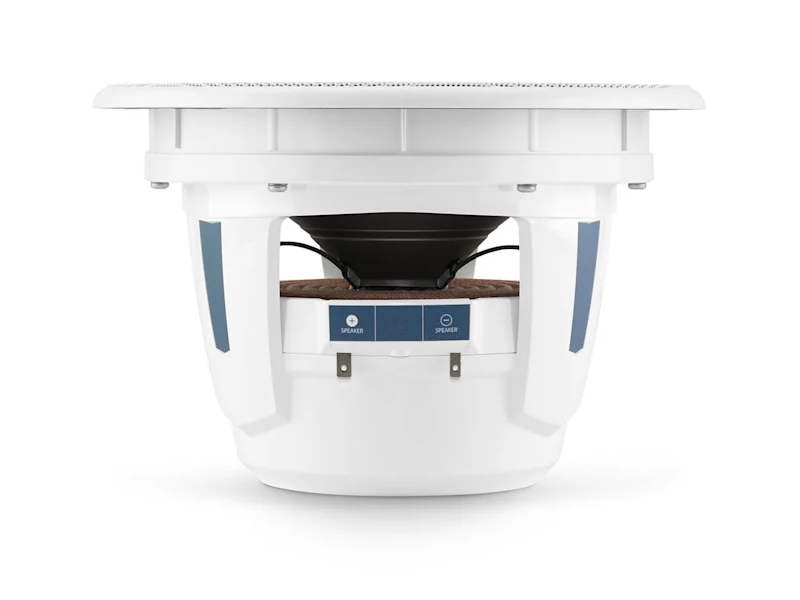

| Speaker connections | Spade Connectors |
| LED connection | Flying Lead with 4-conductor 20 AWG wire (selected Sport models only) |
| Mounting Dimensions | |
| Mounting diameter clearance | 8" (Classic/Sport): 5" (127 mm) 8" (Luxe): 6.30" (160 mm) |
| Frontal grille protrusion | 8" (Classic): 1.37" (35 mm) 8" (Sport): 1.45" (37 mm) 8" (Luxe): 0.48" (12 mm) |
| Mounting hole | 8" (Classic/Sport): 7.375" (187 mm) 8" (Luxe): 8.625" (219 mm) |
| Bolt hole circle | 8" (Classic/Sport): 7.97" (202 mm) 8" (Luxe): 9.27" (235 mm) |
| Parameters | |
| Free Air Resonance (FS) | 8": 54.92 Hz |
| Electrical “Q” (Qes) | 8": 0.852 |
| Mechanical “Q” (Qms) | 8": 10.314 |
| Total “Q” (Qts) | 8": 0.787 |
| Equivalent Compliance (Vas) | 8": 0.54 cu ft (15.29 L) |
| One-way linear excursion (Xmax; specs are derived via one-way voice coil overhang method with no correction factors applied) | 8": 0.53" (14 mm) |
| Reference Efficiency (NO) | 0.28% |
| Effective piston area (SD) | 8": 35.15 in² (0.0227 m²) |
| DC resistance (RE) | 8": 2.993 Ω |
| Sealed Enclosure Specifications | |
| Wall thickness | 0.75" (19 mm) |
| Front baffle thickness | 0.75" (19 mm) |
| Volume (net int.) | 8"/10" (IB): 2.00 cu ft (56.6 L) |
| External width (W) | 8": 16" (406 mm) |
| External height (H) | 8": 16" (406 mm) |
| External depth (D) | 8": 18.25" (464 mm) |
| -3 dB cutoff frequency (F3) | 8": 51.78 Hz |
| System resonance (FC) | 8": 61.89 Hz |
| System Q at resonance (QTC) | 8": 0.8869 |
| Ported Enclosure Specifications | |
| Wall thickness | 0.75" (19 mm) |
| Front baffle thickness | 0.75" (19 mm) |
| Volume (net int.) | 8": 1.50 cu ft (42.5 L) |
| External width (W) | 8": 16" (406 mm) |
| External height (H) | 8": 16" (406 mm) |
| External depth (D) | 8": 15.125" (384 mm) |
| Internal port diameter (ID) | 8": 4" (102 mm) |
| Port length (L) | 8": 13.5" (343 mm) |
| Tuning frequency (FB) | 8": 37 Hz |
| -3 dB cutoff frequency (F3) | 8": 31.26 Hz |
| Additional | |
| Additional | The enclosure recommendations listed above are external dimensions which assume the use of 0.75" (19 mm) thick material. If you are using 0.625" (16 mm) thick material, subtract 0.25" (6.5 mm) from each dimension. Do not use any material with a thickness of less than 0.625" (16 mm) as this may compromise the rigidity of the enclosure. All enclosure volumes listed above are net internal volumes. Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account. When using multiples in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorized JL Audio dealer or JL Audio Technical Support. We recommend the use of this in a bi-amplified system using high-quality satellites and a high-quality amplifier. We do not recommend the use of this with a passive crossover (coil), as this type of device will adversely affect performance. |
| In the box | |
| 8-inch Subwoofers |
|
