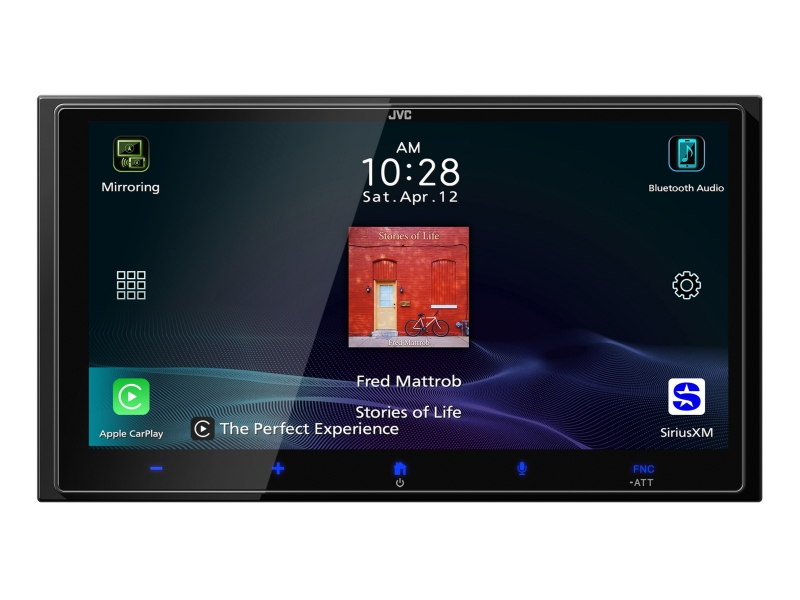

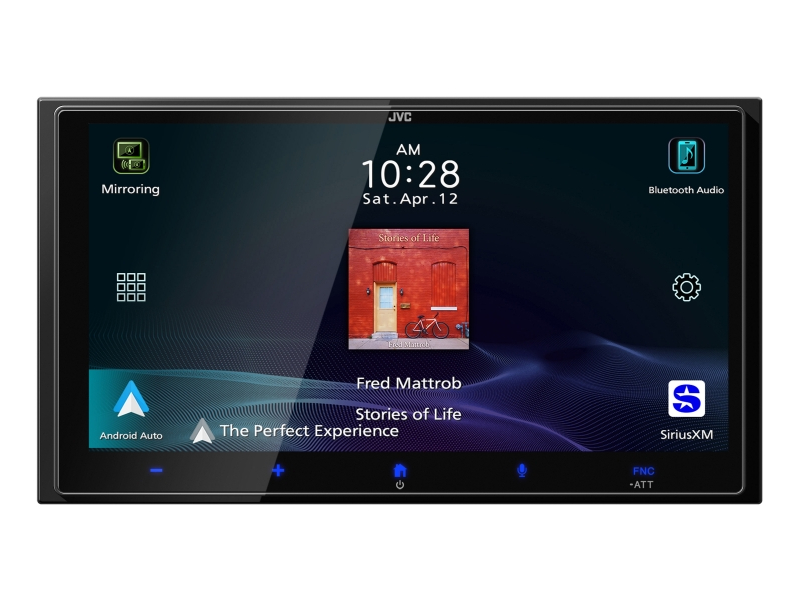

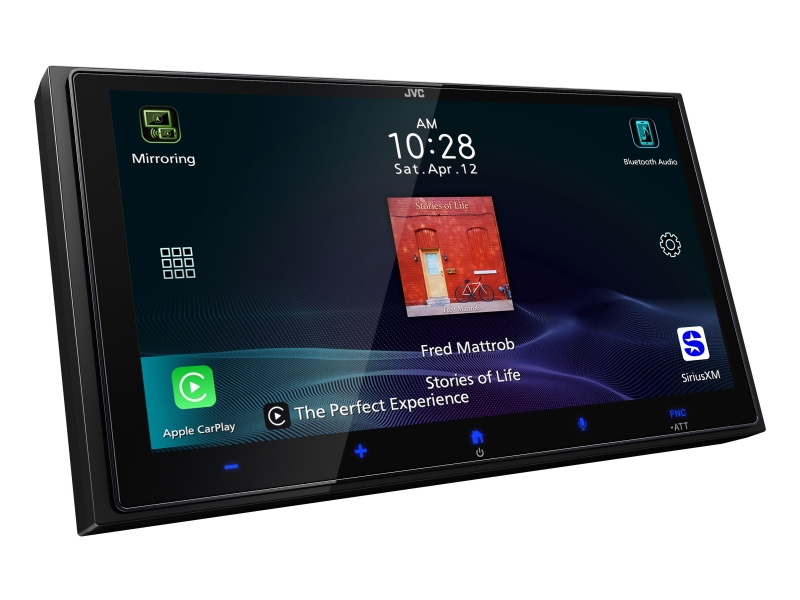

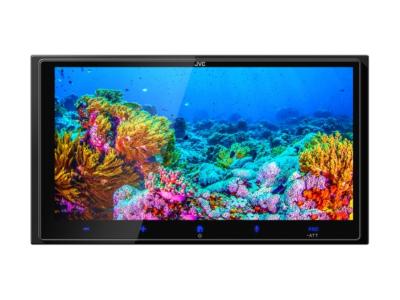

JVC Digital Media Receiver Featuring HD Capacitive Touch Control Monitor Apple CarPlay Android Auto - KW-M795BW

Model #:KW-M795BW , UPC #:046838505287
$679.00

Digital Media Receiver featuring 6.92" HD Capacitive Touch Control Monitor / Apple CarPlay® (Wireless, Wired) / Android Auto™ (Wireless, Wired) / HDMI Input / Mirroring (Wireless, Wired) / SiriusXM Ready / iDatalink Maestro Ready / Bluetooth®


KW-M795BW_1



SMARTPHONE INTEGRATION

KW-M795BW_2

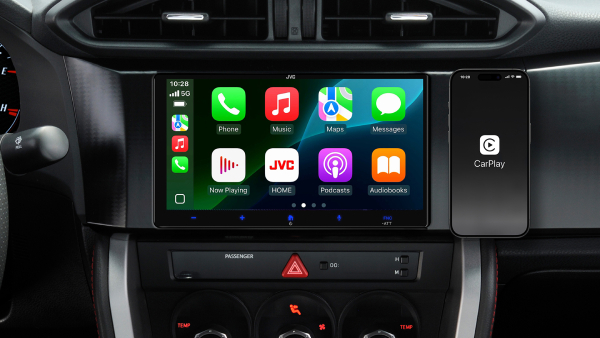

Apple CarPlay® – Connect Wirelessly or via USB

A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch.


KW-M795BW_3

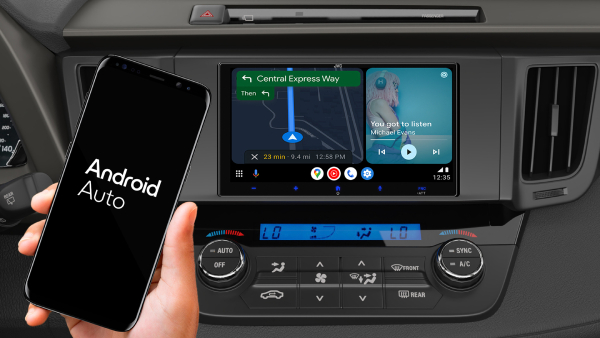

Android Auto™ – Connect Wirelessly or via USB

Android Auto was designed with safety in mind. With larger touch targets, a split-screen interface, and easy-to-use voice actions, it's designed to minimize distraction so you can stay focused on the road.


KW-M795BW_4

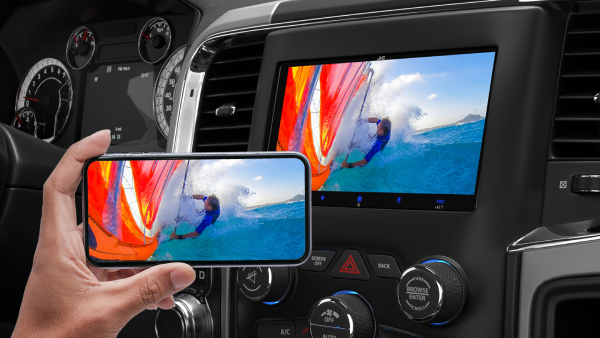

Wireless Mirroring for Compatible Smartphones

By installing the “CarbitLink-EasyConnection” app, your mobile phone is seamlessly displayed on the receiver's screen without cable. You can enjoy a variety of apps such as Waze, YouTube™, and Instagram.


KW-M795BW_5

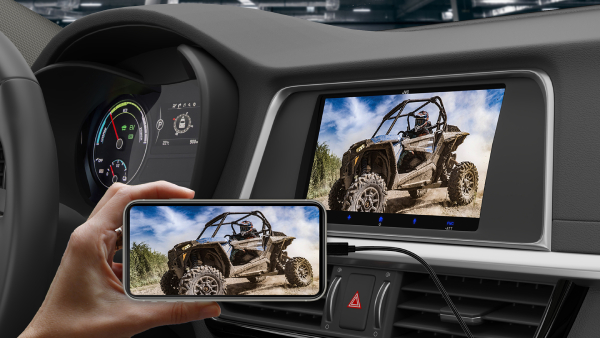

HDMI™ Mirroring for Compatible Smartphones

Display your smartphone screen on the KW-M795BW’s display via an HDMI cable and third party adapter. *KS-U70, optional HDMI cable and smartphone-specific third-party adapter are required (sold separately).



DISPLAY

KW-M795BW_6

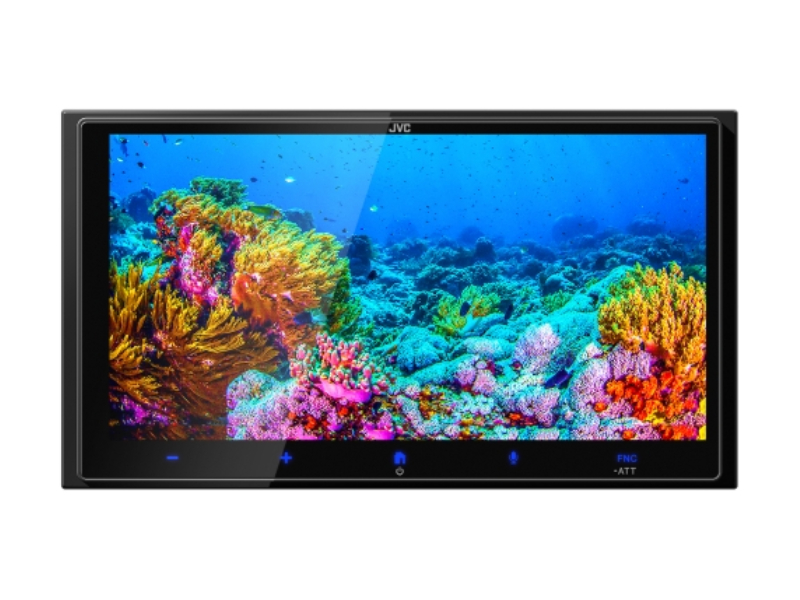

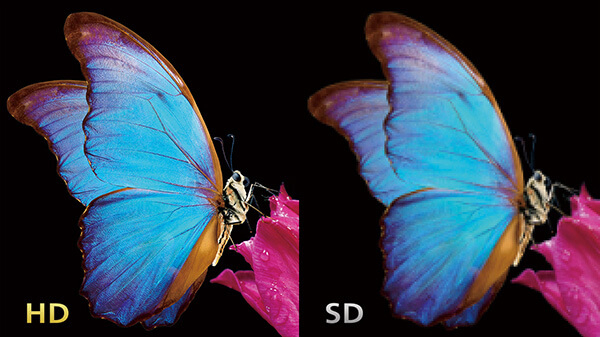

High Definition Display (1280 x 720)

The HD display is about 2.4 times higher resolution than the conventional WVGA panel. With this display, jagged edges are eliminated in the displayed image, providing sharp and vivid images. In addition, the color development increases, and the individual colors of the image become clear, so you can enjoy high-definition images.



SAFE DRIVING

KW-M795BW_7

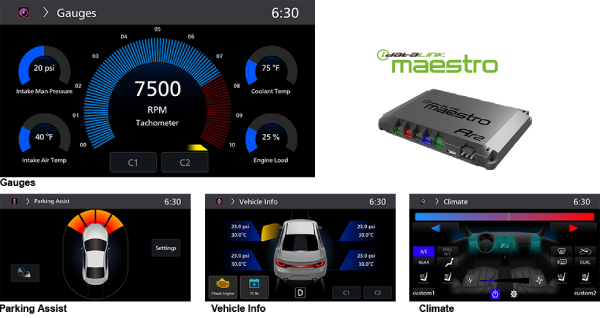

iDatalink Maestro – Advanced Vehicle Integration

iDatalink Maestro RR/RR2 (sold separately) enables the retention of the factory steering wheel audio controls, factory amplifier, secondary displays, and can even display vehicle information (performance data, climate controls, battery voltage, etc.) when connected to compatible vehicles. Radar detector information can also be displayed on the screen when used with a compatible K40 radar detector system (sold separately).


KW-M795BW_8

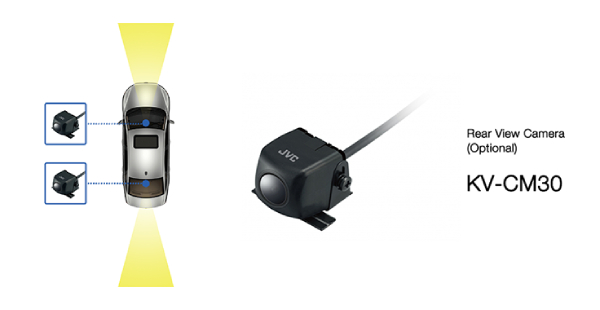

2-Camera Inputs

Enable users to add a rear facing camera and additional front facing camera (sold separately). Additionally this receiver is equipped with a front camera left/right switching function, allowing you to use the optional (sold separately) KV-CM30 as a front camera.


KW-M795BW_9

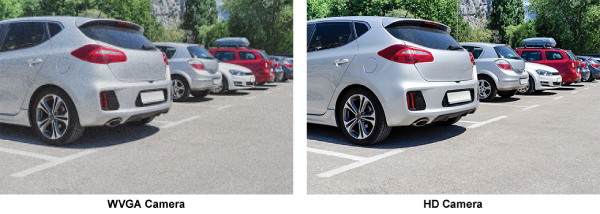

HD Rear Camera Input

An optional High Definition camera can be connected to the receiver’s rear camera input, displaying the image in true 1280 x 720 (720P) High Definition on compatible receivers.



SOUND OPTIMIZATION

KW-M795BW_10 KW-M795BW_11

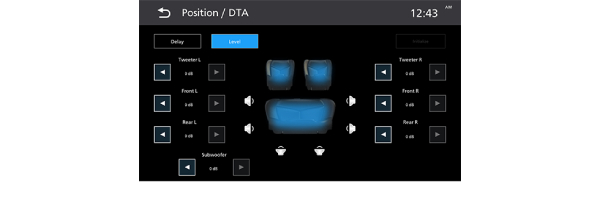

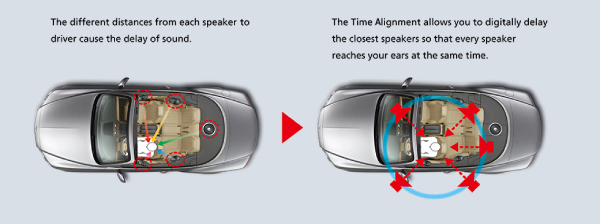

Time Alignment

By selecting the speaker type and the distance to the center of the listening position, the receiver will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.


KW-M795BW_12

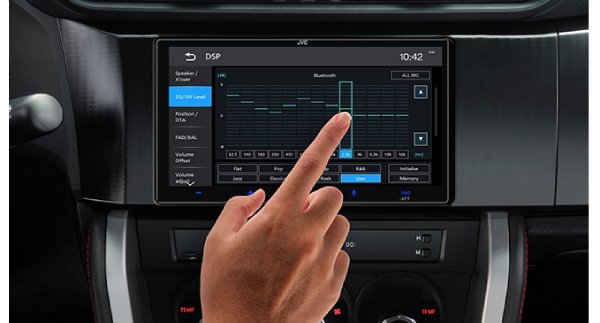

13-Band Equalizer

Use the 13-Band Equalizer to manually adjust the sound to your taste.



Internet Radio/Digital Radio

SiriusXM Ready

(optional SiriusXM tuner required, sold separately)

Ready for SiriusXM Radio. You can listen to over 100 Channels of music, sports, and entertainment.



General

KW-M795BW_13

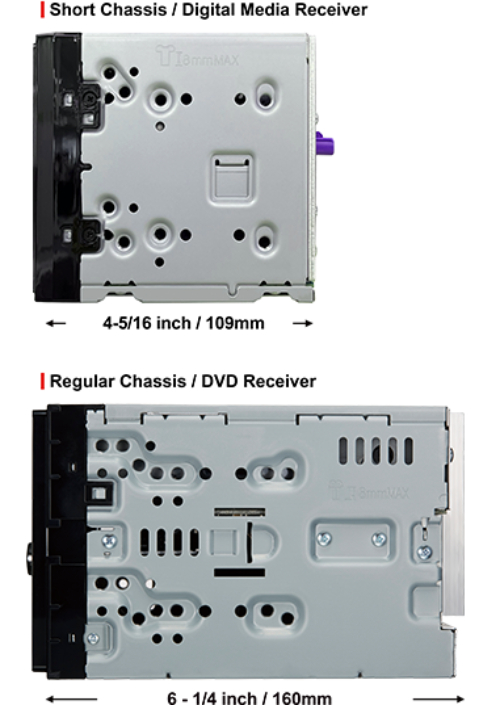

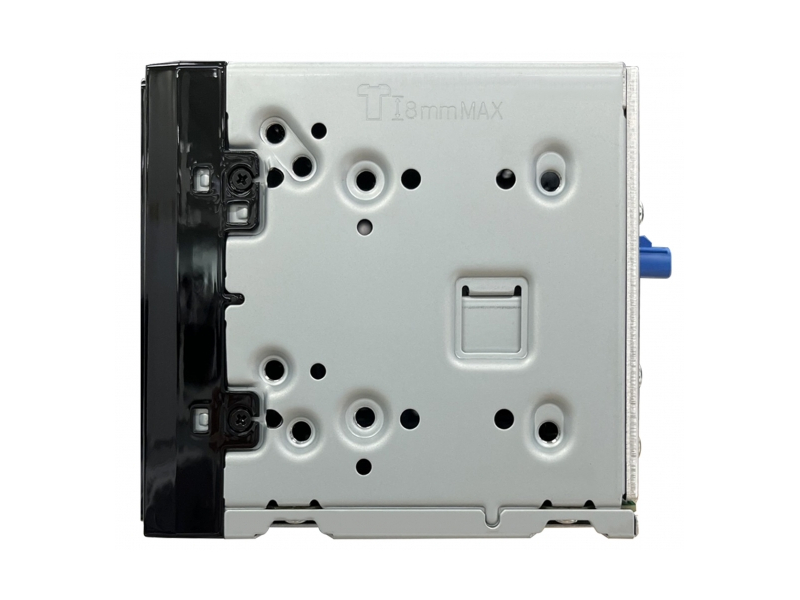

Short Chassis

The reduced depth of the chassis contributes to a weight reduction and facilitates easier installation.



High Current 2.1A Charging

Rapidly charge your smartphone using the USB port, with up to a maximum of 2.1A. *Compatibility depends on the smartphone.

3.0V High-Voltage 3 Pre-Outs

Equipped with three RCA terminals for pre-outs with 3.0V high voltage. Increasing the output voltage from the pre-outs helps reduce transmission noise and distortion when connected with an external amplifier.

Steering Wheel Remote Control Ready

Factory steering wheel control functions can be retained with a third-party adapter (sold separately).


KW-M795BW_14

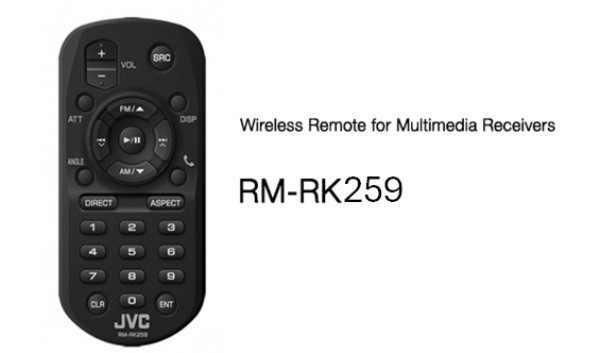

Remote Control (Optional)

Remote control (RM-RK259) is optionally available.


MONITOR
High Definition MonitorYes
Screen Size6.92" HD Screen
Touch PanelCapacitive
Touch Panel SurfaceAnti Finger Print, Anti Glare
Key Illumination ColorBlue
DimmerYes
Multilingual DisplayYes (English / Spanish / French)
Media Playback
MP3 Compatible with TagUSB
WMA Compatible with TagUSB
WAV Compatible with TagUSB
AAC Compatible with TagUSB
FLAC Compatible with TagUSB
H.264 CompatibleUSB
USB
WMV CompatibleUSB
MPEG 1/2 CompatibleUSB
MPEG 4 CompatibleUSB
MKV CompatibleUSB
Bluetooth Control
Built-in Bluetooth[1}Yes (Version 5.3, Wired-Mic included)
Hands Free CallYes (HFP1.6)
2 Phones Full-Time ConnectionYes
Audio Streaming & Control (A2DP, AVRCP)Yes
Supported Audio FormatsAAC / SBC
Voice Dialing (voice recognition compatible mobile phone required)Yes
Phone Book Access Profile (PBAP)Yes
Wi-Fi Control
Built-in Wi-FiYes
Android Control
Android Auto[2]Yes (via Wi-Fi or USB)
Mirroring for AndroidYes (via Wi-Fi or USB)
iPod/iPhone Control
Apple CarPlay[3]Yes (via Wi-Fi or USB)
Mirroring for iPhoneYes (via Wi-Fi or USB)
USB
USB Portx 1 Type-A (USB2.0 High Speed)
PositionRear
USB Power Supply2.1A (BC1.2)
Radio Tuner
SiriusXM ReadyYes
Radio Broadcast Data System (RBDS)Yes
Preset Stations20(FM:15ch, AM:5ch)
Auto Memory EntryYes
FM - Frequency Range87.9 - 107.9MHz
AM - Frequency Range530-1,700kHz
Audio
Maximum Power Output (Front & Rear)50Wx4
Full Bandwidth Power (Front & Rear)22W x 4 (at less than 10% THD)
EQYes (13-Band Graphic EQ)
Preset EQYes (7Preset + 1User)
Bass BoostYes
High-Pass Filter/Low-Pass FilterYes/Yes
3-Way X'overYes
Time AlignmentYes

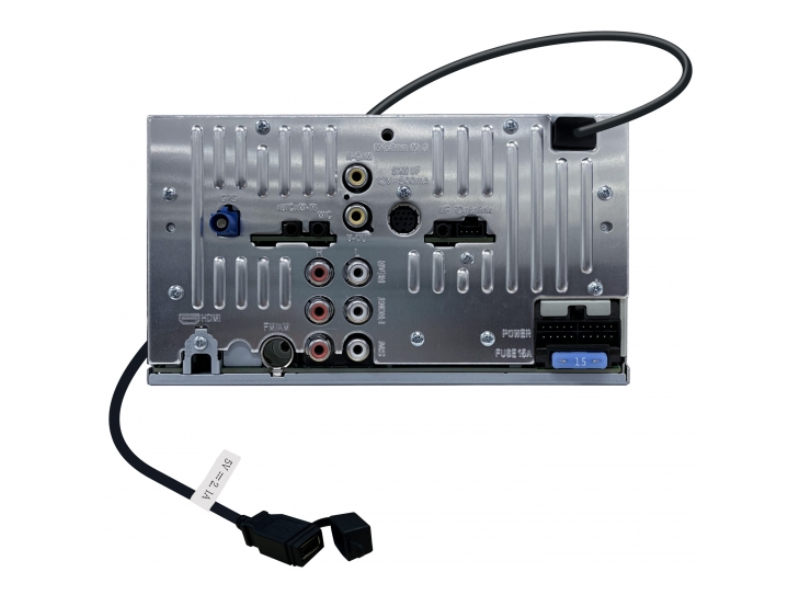

Inputs and Outputs
AV InputRCA x1
HDMI TerminalYes
HD Camera InputYes (Only for Rear Camera In)
Rear view camera InputYes
Line Output Terminals3 Pairs (Front + Rear + Subwoofer)
Pre-output Level/Impedance3V
Subwoofer Output with Level/Frequency ControlYes
General
iDatalink Maestro ReadyYes (RR, RR2)
Wireless Remote ControlOptional (RM-RK259)
Steering Remote Control ReadyYes
Dimensions (W x H x D) / Weight
Installation Size7" x 3-15/16" x 4-5/16" (178 x 100 x 109 mm)
Weight2.6 lbs (1.14kg)
Unit weight in individual package4.06 lbs (1.84kg)
