Many of the world's most recognized brands including Ron Jon Surf Shop and Bloomingdale's use our commercial speakers to create unique memorable experiences for their customers. Do the same for your business with our top-of-the-line IC-650-T 70-volt speaker.
Easy to install and adjust settings
Compact design simplifies low-ceiling mounting
Deep bass with less compression
Horn-loaded for clear sound in any location
Multi-tap transformer for distributed audio
Includes tile bridge for installation in any ceiling
Pairs well with our CA surface mount speakers

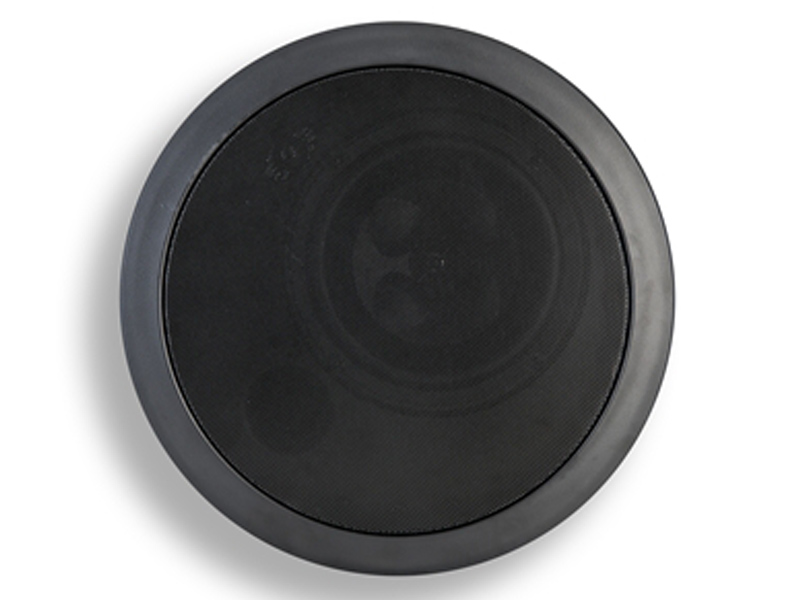

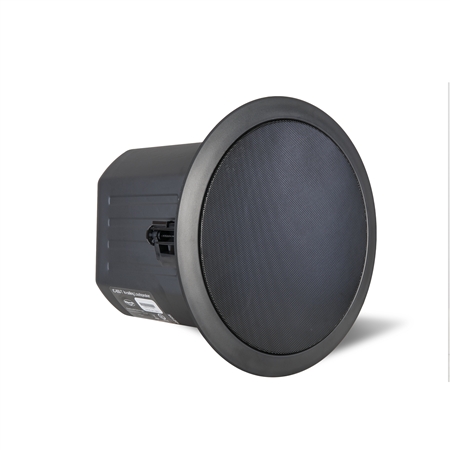

The IC-650-T packs proven materials and wide dispersion horn technology into an installer-friendly UL-certified (2043 and 1480) in-ceiling speaker with an integrated back can and multi-tap transformer.

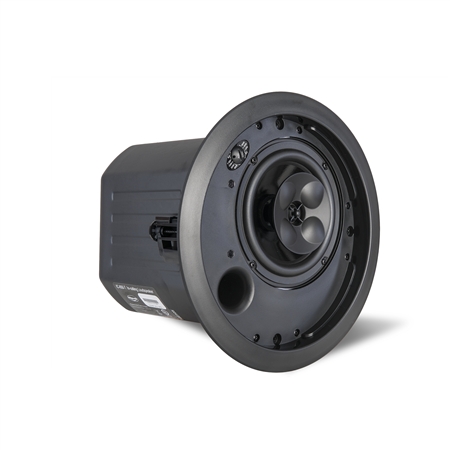

A two-way design the speaker features a 6.5-inch woofer and 1-inch titanium diaphragm compression driver mated to a round Tractrix® Horn with XT technology for smooth response with constant directivity. The 1-inch Tractrix port provides deeper fuller bass with less compression and distortion.
For distributed line applications the IC-650-T features a 70/100 volt multi-tap transformer. A single rotary switch for the 4-ohm bypass and multi-tap setting is conveniently located on the front baffle.
The speaker's included tile bridge allows for easy installation in a suspended ceiling or wherever additional reinforcement of the ceiling material is required. A mudring kit (part # 1010414) can be purchased separately to further simplify drywall installations.
50-20k Hz +/- 4dB
90dB 2.83 V/1M
80 watts (18.8 V) cont.
MAXIMUM ACOUSTIC OUTPUT:
106dB @ 1M
8 ohms, min 4.4 ohms; switch set in 8 ohm position
Vented via a 1" Tractrix port
10.125" (25.72 cm) diameter
10.313" (26.20 cm)
10.125" (25.72 cm)
11.75 (29.85 cm) diameter
THRU HOLE WIDTH:
10" (25.40 cm) diameter
Black and white
6.5" woofer, 1" titanium diaphragm compression driver on a 3.5" round XT modified Tractrix Horn
70V: 60W, 30W, 15W, 7.5W
100V: 60W, 30W, 15W
