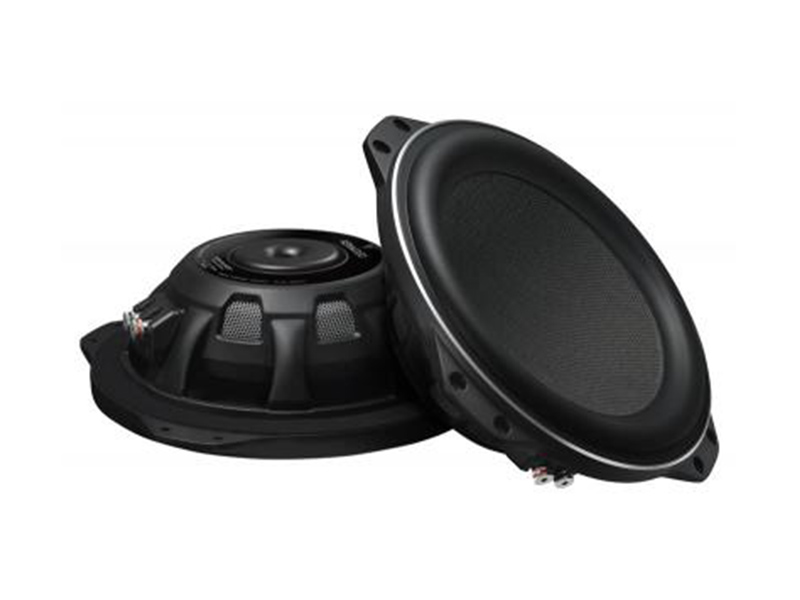

Kenwood 10 Inch eXcelon Reference Series 1200W Oversized Diaphragm Slim Subwoofer - XR-W10F
Model #:XR-W10F , UPC #:019048192325
$399.00 |
![](https://www.fmaudiovideo.com/files/image/attachment/4815/thumb_XR-W10F.jpg)
XR-W10F
$399.00
General Features
Subwoofer Type: 10" Carbon-Glass Fiber Cone
Nominal Impedance: 4 ?
Peak Power: 1,200 W
Rated Input Power: 350 W
Sensitivity: 83.5 dB/W at 1m
Free Air Resonance: 36 Hz
Frequency Response: 41Hz - 200Hz
Gross Weight: 12.4 lbs
Recommended Enclosure: (See Installation Manual)
- Sealed: -
- Ported: -
Features | |
---|---|
Nominal Impedance | 4 Ω |
DC Resistance | 3.2 Ω |
Voice Coil Inductance (mH) | 2.03 |
Piston Area (Sd) | 0.042 |
Force Factor (Bl) | 10.8 |
Volume Acoustic Compliance (Vas) | 32.9 liters (1.162 cu. ft.) |
Moving Mass (Mms) | 148 g |
Resonance Frequency (Fs) | 36 Hz |
Mechanical Q Factor (Qms) | 5.747 |
Electrical Q Factor (Qes) | 0.907 |
Total Q Factor (Qts) | 0.783 |
Maximum Peak Power | 1,200 W |
Peak Excursion (Xmax) | 7.5 mm |
Displacement | 803 cc (0.028 cu. ft.) |
Mounting Depth | 3-1/8 in (80mm) |
Weight of Magnet | 1,080 g |
Voice Coil Diameter | 50 mm |
