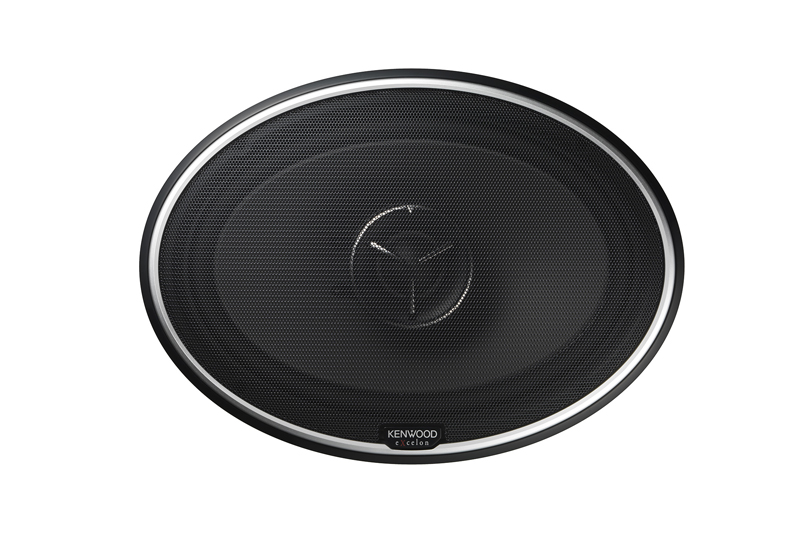

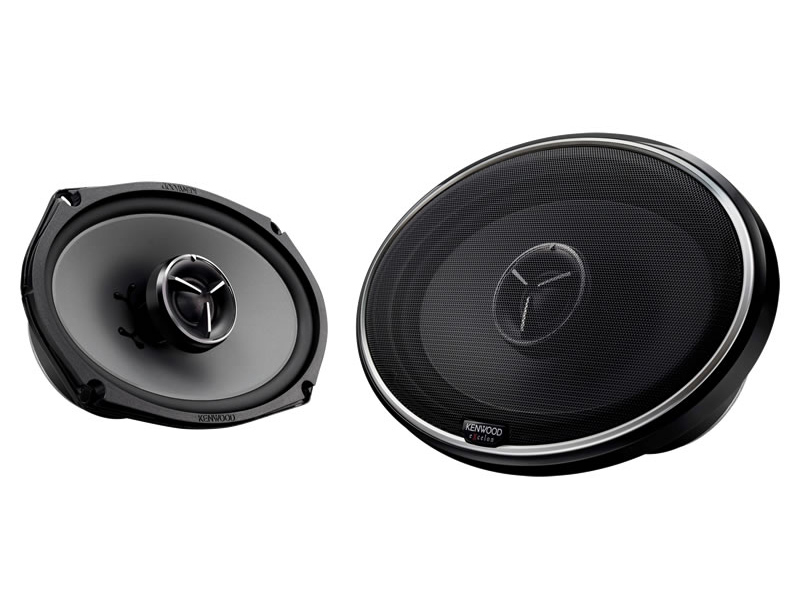

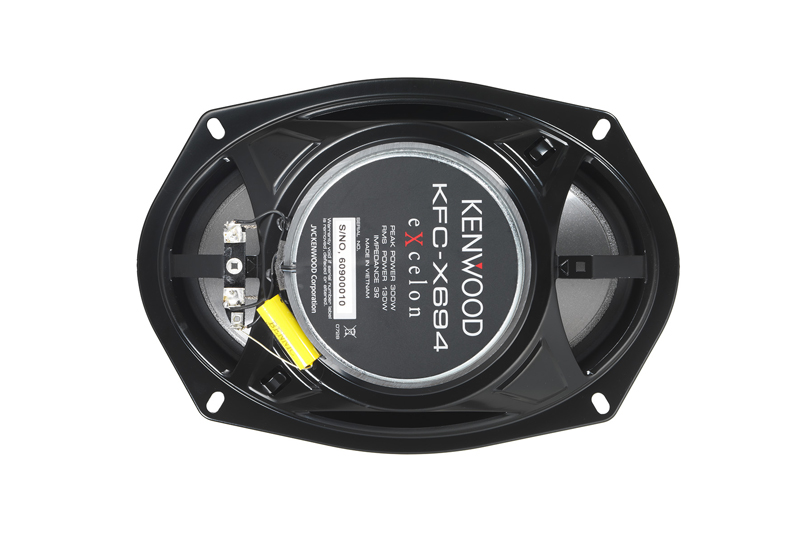

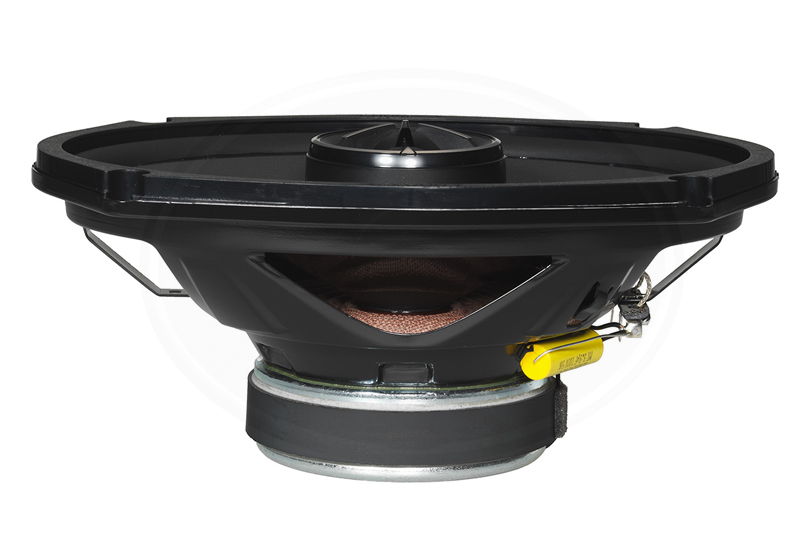

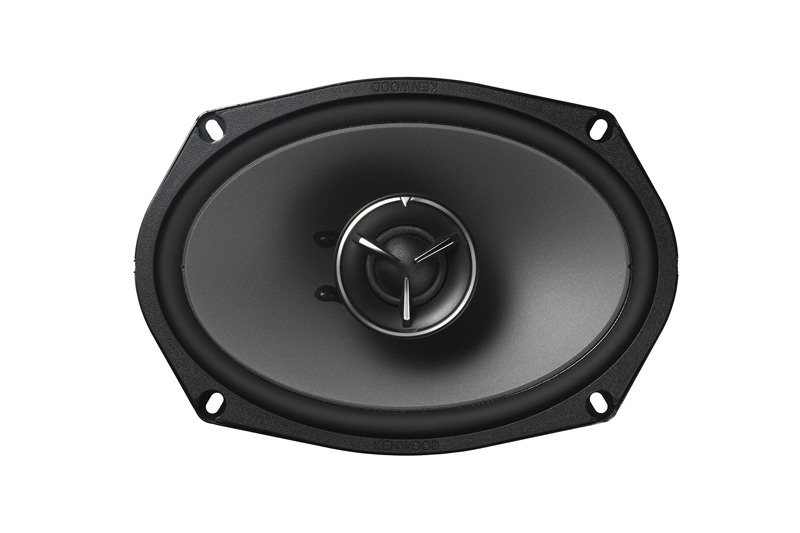

Kenwood 6 x 9" 2-way 2 Speaker - KFC-X694
Model #:KFC-X694 , UPC #:019048217929
WAS $249.00 |
$198.00 |
General Features
- Peak Power : 300W
- RMS Power : 130W
- Sensitivity : 89dB/ W at 1 m
- Frequency Response : 51Hz 20,000Hz
Woofer
- Woofer Size: 6 x 9 in (153 x 229mm)
- Woofer Diaphragm: Injection PP cone
Tweeter
- Tweeter Size: 1-3/16 in (30mm)
- Tweeter Diaphragm: Soft Dome
Dimensions (without grill)
- Width: 9-5/16 in (236.4mm)
- Height: 6-7/16 in (164mm)
- Depth: 4-1/8 in (104.5mm)
- Mounting Depth: 3-3/8 in (85mm)
Specification | |
---|---|
Model Name | KFC-X694 |
System | 2way-2speaker |
Power Handling | |
Peak Input Power | 300W |
Maximum Input Power | 110W |
Rated Power | 55W |
RMS Power | 130Watts RMS |
Impedance | 3Ω |
Sensitivity | 89dB/ W at 1 m |
Frequency Response | 51 Hz~20,000 Hz |
Woofer | |
Diaphragm | P.P. Cone , Gray |
Size | 153x229 mm , 6x9 inch |
Surround | Rubber |
Basket | Steel |
Magnet | Ferrite , φ100 x t17 |
Size | |
Size | 30 mm , 1-3/16 inch |
Magnet | |
Magnet | Nd , Up to Engineer |
Dimension | |
Width | 266.4mm , 10-1/2 inch |
Height | 193.4mm , 7-5/8 inch |
Depth | 113.5 mm , 4-7/16 inch |
Width | 236.4 mm , 9-5/16 inch |
Height | 164 mm , 6-7/16 inch |
Depth | 104.5 mm , 4-1/8 inch |
Cut-out Diameter | 218.0 x 149.0 mm , 8-9/16 x 5-7/8 inch |
Tweeter Height | 19.5 mm , 3/4 inch |
Mounting Depth | 85.0 mm , 3-3/8 inch |
Accessory | |
Grille Holder | ○ |
Punching Net | ○ |
Tweeter | with Woofer Frame , -6dB/oct |
Binding Head Tapping Screw | φ4 x 40 mm , 8 pcs |
Hexagon Head Bolt | M4 x 70 mm , 8 pcs |
Hexagon Nut | M4 , 8 pcs |
Flat Washer | M4 , 8 pcs |
Flat Washer | φ4 , 8 pcs |
Spring Washer | φ4 , 8 pcs |
