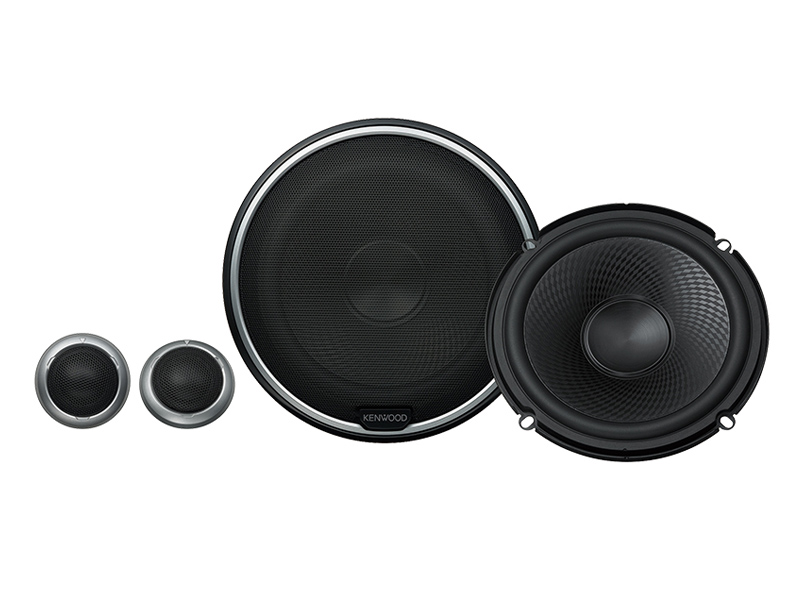

Kenwood 6.5 Inch Component Speaker - KFC-P710PS

Model #:KFC-P710PS , UPC #:19048216960
$219.00

Peak Power 280W
Rated Input Power
80W Impedance 4 ohms
Woofer Features
6-1/2inch Injection PP Cone
Tweeter Features
1inch Soft Dome Tweeter
Specifications
Sensitivity: 86 dB / W / m
Frequency Response: 63 Hz - 24k Hz
Cutout Diameter: 4-15/16inch
Mounting Depth: 2-3/16inch
Gross Weight: 2.30lbs
Weight of Magnet (Woofer): 0.72lbs


Specification
SPECIAL FEATUREDiamond Array Pattern Diaphrgm
ACCESSORYGrille , *2
CROSSOVER FREQUENCY4,900Hz ,
FREQUENCY RESPONSE63Hz- , 24,000Hz
SENSITIVITY86 , db / W at 1m
POWER HANDLING
RMS Power (CEA SPEC)80 , W
Peak Power  280 , W
Specification
NOMINAL IMPEDANCE4 , Ohms
Weight
Weight of Magnet (Woofer)330g , 11.7oz
Gross Weight2,800g , 6.2lbs
Woofer without Grille (pc.)900g , 2.0lbs
Woofer with Grille (pc.)990g , 2.2lbs
Tweeter
Depth19.1mm , 3/4in
Height37.5mm , 1-1/2in
Width37.5mm , 1-1/2in
Woofer (Unit)
Mounting Depth56.0mm , 2-3/16in
Depth (w/o_Gr)68.8mm , 2-11/16in
Depth (w_Gr)84.2mm , 3-5/16in
Tweeter Height- , -
Cutout Diameter126.0mm , 4-15/16in
Height (w/o_Gr)158.0mm , 6-1/4in
Height (w_Gr)180.0mm , 7-1/16in
Width (w/o_Gr)158.0mm , 6-1/4in
Width (w_Gr)180.0mm , 7-1/16in
Tweeter
MagnetNeodymium , φ23.5*t3.4
Size25mm , 1in.
DiaphragmSoft Dome ,
Woofer
BasketSteel : Black ,
MagnetFerrite , φ90*t15
SurroundRubber ,
DiaphragmInjection P.P. cone
Sizeoversized160mm , 6-1/2in
