Klipsch Commercial In-Ceiling Speaker IC500TSCW

IC500TSCW

$449.00 On Sale

Availability Schedule Delivery
Call Now! 519-753-7006 Or Chat For Additional Discounts

Banner

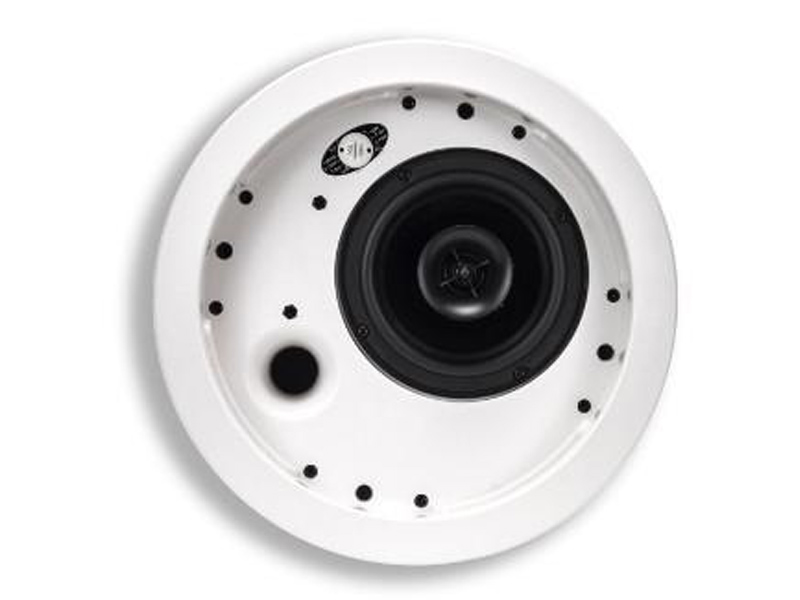

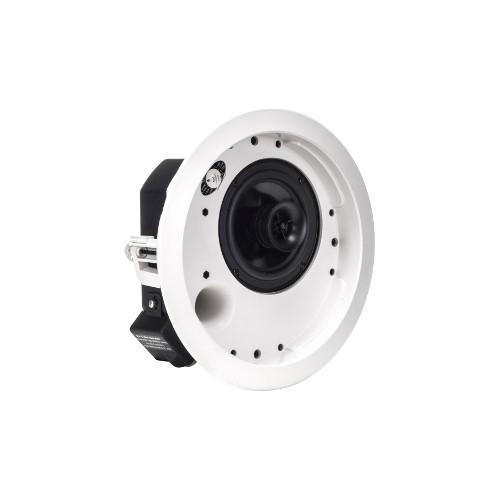

IC-500-T-SC

At just over 4” deep, the all-new IC-500-T-SC packs proven materials and wide dispersion horn technology into an installer-friendly, UL-2043 and UL-1480 certified in-ceiling loudspeaker with an integrated back can and multi-tap transformer.

  • Shallow 4.125” depth
  • Includes 15 watt 70/100 volt multitap transformer
  • 70V, 100V, or 8 ohm operation selectable via front baffle switch.
  • Tractrix port design for deep bass with less compression
  • Tractrix horn tweeter for smooth on and off axis performance
  • Designed to mix and match with Klipsch CA speakers
  • Includes grille, backcan, tile-bridge, and cut-out template for easy installation
Specifications
FREQUENCY RESPONSE1 (+/- 4 dB) 95 Hz - 20 kHz
POWER HANDLING2 50 watts (14.5V), 200 watts peak
MAXIMUM SPL3 101 dB Continuous, 107 dB Peak
SENSITIVITY4 87 dB
COVERAGE ANGLE 80º
DIRECTIVITY INDEX (DI) 8 dB
DIRECTIVITY FACTOR (Q) 6.3
NOMINAL IMPEDANCE(IN 8 OHM BYPASS MODE)8 ohms, 4.2 ohm minimum
COMPONENTS One 5" (12.7cm) woofer, 1” (2.54cm) Titanium diaphragm, compression driver
INPUT CONNECTION Terminal Strip
TAP SETTINGS 70V: 15w, 7.5w, 3.8w, 1.9w, 100V: 15w, 7.5w, 3.8w
ENCLOSURE TYPE Bass-reflex via Tractrix port
SAFETY AGENCY RATING UL-1480, UL-2043
WIRE GAUGE ACCOMMODATED 14 AWG
CUTOUT DIMENSIONS 9.125” (23.2cm) diameter
MOUNTING DEPTH 4.125” (10.5cm)
OVERALL DEPTH 4.375” (11.1cm)
OVERALL WIDTH 10.75” (27.3cm) diameter
THRU HOLE WIDTH 9” (22.8cm)
WEIGHT 5.5 lbs. (2.5kg)
FINISHESWhite/Paintable
ACCESSORIESMud Ring Kit (PN: 1010413)
