Epson Home Cinema 5050UBe Wireless 4K PRO-UHD Projector With Advanced 3-Chip Design And HDR10 - V11H931020-F

Model #:V11H931020-F , UPC #:10343944206

The ultimate 4K experience for the DIY home theatre.

The Epson® Home Cinema 5050UBe 4K PRO-UHD1 projector delivers an amazing 4K home theatre experience for the DIY enthusiast. Capable of displaying an astonishing 2,600 lumens for both colour and white brightness2 – along with proprietary processors for resolution enhancement, colour and image processing – the Home Cinema 5050UBe produces incredible brightness, colour accuracy and image detail to faithfully display all your favorite content the way it was meant to be seen. If you’re looking for an amazing 4K projection experience to power your new home theatre build – this could be it. Now that’s Projection Perfected.

4K PRO-UHD1 Projection Technology

A new type of 4K home theatre experience utilizing advanced processing for resolution enhancement, colour and image processing – resulting in an exceptional 4K home theatre experience

True 3-Chip Projector Design

Advanced 3LCD technology displays 100% of the RGB colour signal for every frame. This allows for an outstanding colour gamut while maintaining excellent brightness, without any “rainbowing” or “colour brightness” issues some may see with other projector technologies

Pixel-Shift Processor

Advanced pixel-shifting processor precisely controls three high-definition LCD chips to parallel process millions of pixels of information. This new type of resolution enhancement technology1 results in an exceptionally sharp 4K visual experience

HDR Processor

Full 10-bit HDR3 color processing accepting 100% of the HDR source information to faithfully reproduce HDR content for an exceptional visual performance

Digital Imaging Processor

Realtime 12-bit analog-to-digital video processing for smooth tonal transitions, while helping to eliminate banding, blocking and other compression artifacts from the final visual performance. This powerful processor faithfully reproduces the source material the way it was intended to be shown


Outstanding Brightness

Capable of displaying 4K content at an incredible 2,600 lumens for both colour and white brightness2. This not only provides for a wider performance envelope but allows for an exceptional HDR performance

  • Epson UltraBlack™ Technology — Epson created a Proprietary Compensation Filter that controls the polarization of light itself. This allows Epson to suppress any stray light within the signal, producing an outstanding Dynamic Contrast ratio of 1,000,000:1.
  • Precision HDR Adjustment — Realtime HDR curve adjustment allowing for 16-steps of control to fine-tune the HDR performance – regardless of the content being displayed.
  • Extreme Colour Gamut — One of the first commercially available home theatre projectors capable of displaying the full three-dimensional DCI-P34 colour space. This extreme colour performance is 50% wider than typical 1-Chip Rec. 709 projectors and allows for a truly professional-level of colour accuracy.
  • Epson Precision Lens Technology — Designed for zero-light-leakage, all Epson Precision Lenses utilize a proprietary 15-element precision glass structure for outstanding image clarity and edge-to-edge focus uniformity.

Eco Features

  • RoHS compliant
  • Recyclable product5

What's In The Box:

  • Home Cinema 5050UBe Projector
  • Power cord
  • Two HDMI cable clamps
  • Remote control with (2) AA batteries
  • Quick Setup Guide
Specifications Projector
Projection SystemEpson 3LCD, 3-chip optical engine
Projection MethodFront / Rear / Ceiling mount
Driving MethodPoly-silicon TFT Active Matrix, 0.74"-wide panel
Colour Brightness - Colour Light Output2600 lumens2
White Brightness - White Light Output2600 lumens2
Aspect Ratio16:9 widescreen (4:3 resize,16:10 resize), Compatible with 4:3 with Normal, Full or Zoom Modes
Resolution4K Enhancement1 (1920 x 1080 x 2)
Maximum Resolution4096 x 2160
Supported Resolution3840 x 2160, Full HD 1080p/i, HD 720p, 576p/i, 480p/i
Lamp Type250 W UHE
Lamp LifeUp to 5,000 hours (ECO Mode); up to 4,000 hours (Medium Mode); up to 3,500 hours (High Mode)7
Size - projected distance50" – 300" (Zoom: Wide and Zoom: Tele)
Keystone CorrectionVertical: ±30 degrees (Manual)
Contrast RatioUp to 1,000,000:1, Auto Iris on
White Balance8-point adjustment
Colour ProcessingFull 10-bit (partial 12-bit)
Colour ReproductionFull-colour (up to 1.07 billion colours)
Projected OutputHD, 2D, 3D, 1080p, 4K x 2K
Operating Temperature41 ° to 95 °F (5 ° to 35 °C)
Weight25.1 lb
SecurityKensington Security Lock Port
Projection Lens
TypePowered focus/optical zoom/lens position
F-number2.0 – 3.0
Focal Length22.5 mm – 46.7 mm
Zoom Ratio1.0 – 2.1
Throw Ratio Range1.35 – 2.84
Lens ShiftVertical: ±96.3(H center, powered), Horizontal: ±47.1(V center, powered)
Lens CoverPowered, Slide Lens Shutter
Other Home Projector
Cinema FilterAutomatically adjusts to colour mode; (On: Cinema, Digital Cinema Off: Natural, Black & White Cinema, Bright Cinema, Dynamic, 3D Dynamic, 3D Cinema)
Auto IrisAutomatically adjusts to video source; Off/On: High-speed or Normal, 2D and 3D mode
Super Resolution2D and 3D
Frame Interpolation1080p @24 Hz

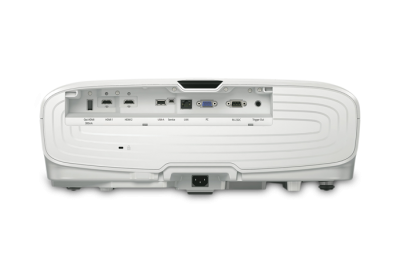

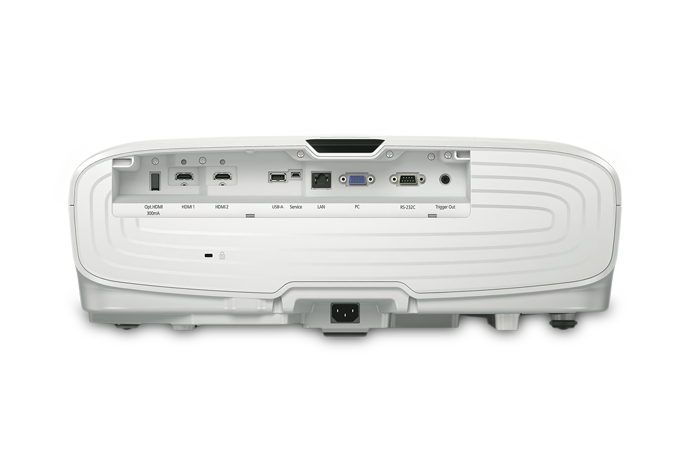

Terminal Inputs2x HDMI (HDCP 2.2), 1x USB Type A (for optical HDMI cable 300 mA max. power supply only), 1x USB (for wireless and firmware), 1x Mini USB (service only), 1x LAN (RJ45), 1x Computer/D-sub 15 pin, 1x RS-232c, Trigger out 12 V DC, 200 mA maximum
Computer CompatibilityPC, Mac®
Parental Controls
Power Button LockHinders projector from being turned on without parental supervision
Projector Details
Display Performance4K/UHD @ 60 Hz compatible, HDR103, 3-dimensional DCI-P3 color Gamut4, 4Ke1, 1080p; HD, 2D, 3D
Colour Modes2D: Dynamic, Bright Cinema, Natural, Cinema, Digital Cinema, Black & White Cinema 3D: Dynamic, Cinema
Input SignalComposite: 480i , 576i, 480p, 576p, 720p, 1080i, 1080p, 4K x 2K HDMI: TMDS
Fan Noise20 dB – 31 dB
Projector Dimensions
Including feet20.5" x 17.7" x 7.6" (W x D x H)
Remote Control
FeaturesFront and rear directional
Operating Distance32 feet (10 meters)
Operating AngleFront: Right/Left: ± 30 degrees, Upper/Lower: ± 30 degrees, Rear: Right/Left: ± 30 degrees, Upper/Lower: + 10 – + 70 degrees
Power Supply Voltage100–240V AC ± 10%, 50/60 Hz
Power ConsumptionECO Mode: 283 W; Normal Mode: 373 W
