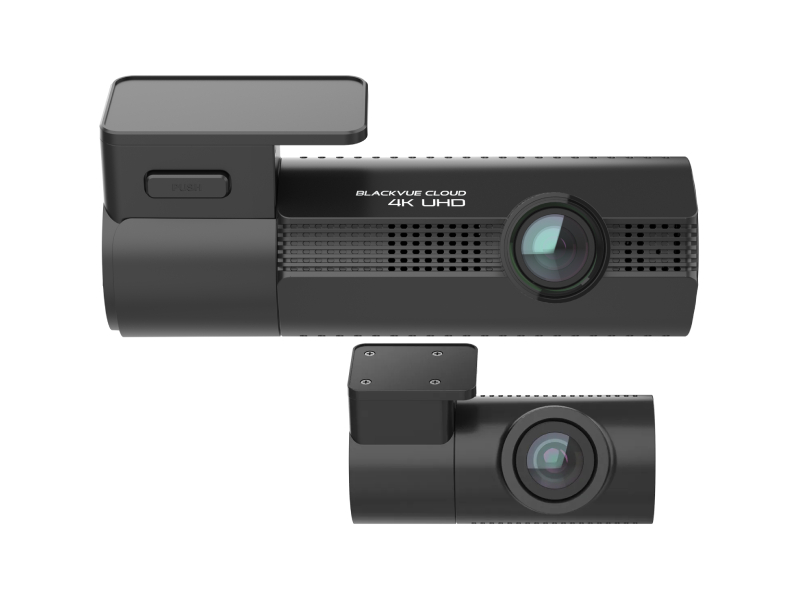

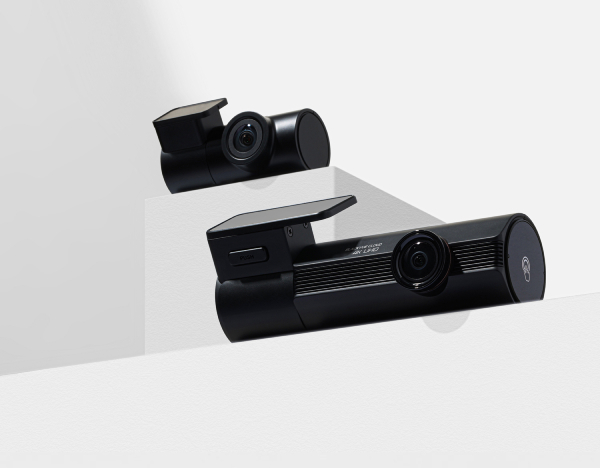

Blackvue ELITE 9 64GB 2 Channel 4K Ultra HD Front and 2K Quad HD Rear Dash Camera - ELITE9-2CH-64
- 4K Ultra HD Front and 2K Quad HD Rear.
- Sony STARVIS 2 Sensors with HDR Front and Rear.
- Ultra-low Power Parking Mode.
- Fast 5GHz Wi-Fi.
- Cloud compatibility via optional LTE Connectivity Module or 3rd-Party Wi-Fi hotspot.
4K Dual HDR Dash Cam
Redefined 4K Clarity with Dual HDR
STARVIS 2 Front & Rear
DUAL HDR
Cloud Connectivity
Power Saving Parking Mode
Up to over 12 months protection when paired with B-130A

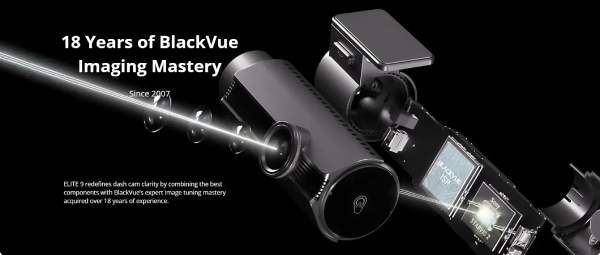

IMAGING MASTERY

4K STARVIS 2, DUAL HDR
Redefined 4K Clarity with Dual HDR
ELITE 9 offers improved dash cam performance with advanced HDR technology. It is designed to provide clear and well-balanced video recordings in both bright sunlight and low-light situations.

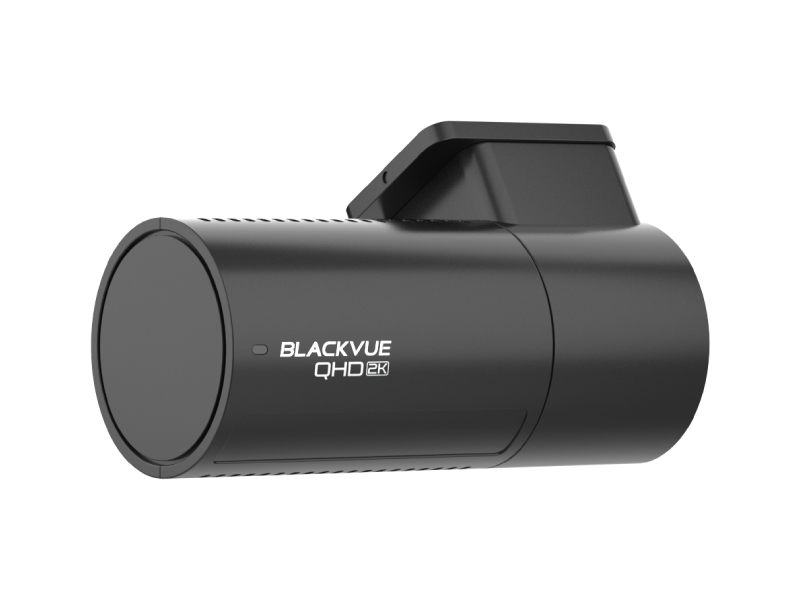

Top-of-the-line Sony IMX678 STARVIS 2 image sensors in the front camera and IMX675 STARVIS 2 in the rear camera, recording at respectively 3840×2160 and 2560×1440 pixels resolutions.
HDR support on both front and rear cameras. BlackVue HDR also reduces motion blur and improves detail, making license plates easier to read on moving vehicles.
The front camera integrates an 8-element f/1.7 aperture lens with great light-gathering capability and the rear camera’s 7-element f/2.0 aperture lens provides a great mix of depth of field and low-light performance. The lenses cover a 146-degree (front) and 142-degree (rear) angle wide field of view with minimal distortion.

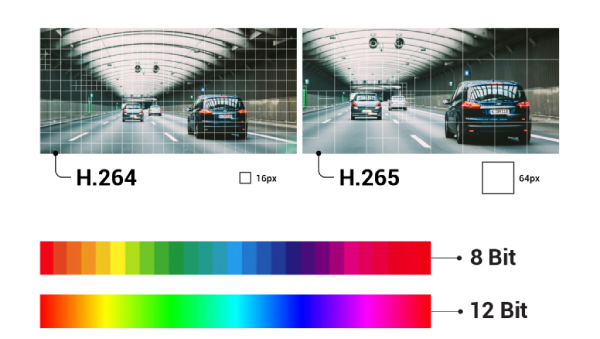

12-BIT CAPTURE, HEVC
12-Bit Capture, HEVC Compression
ELITE 9 combines 4K 12-bit capture (front) and HEVC compression to deliver the most true-to-life footage.
ELITE 9 Series utilizes a professional-grade 12-bit 4K sensor, which captures a massive palette of over 68 billion colors at the source. This rich data is intelligently processed, resulting in a final 8-bit video file that boasts superior clarity.
ELITE 9 Series utilizes HEVC (H.265) compression, which is the leading standard in 4K recording and broadcasting. The primary benefit of HEVC is that it ensures the best video quality at any bitrate.
PARKING MODE PROTECTION
24/7 Protection for your vehicle
With the Parking Mode Accessories

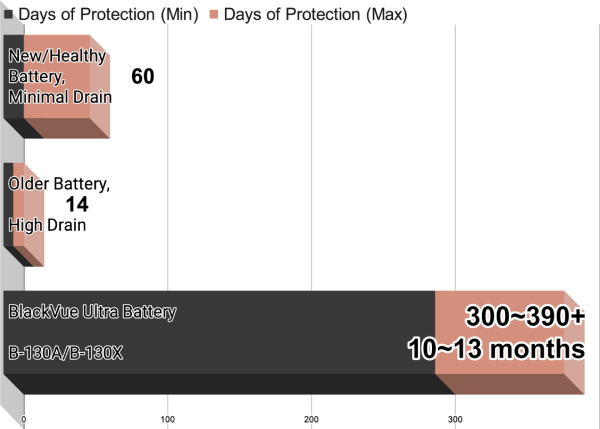

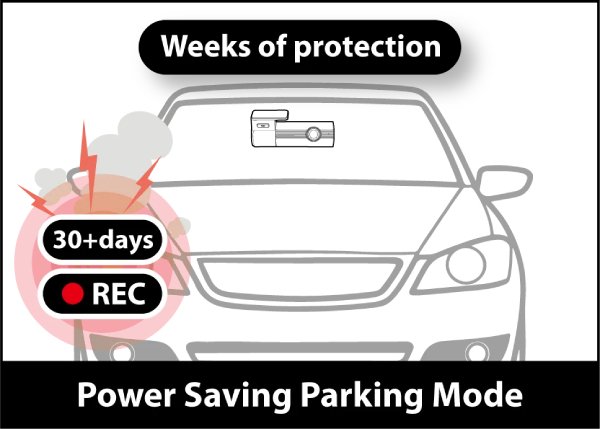

POWER SAVING MODE



Up to Over 12 Months of Protection!

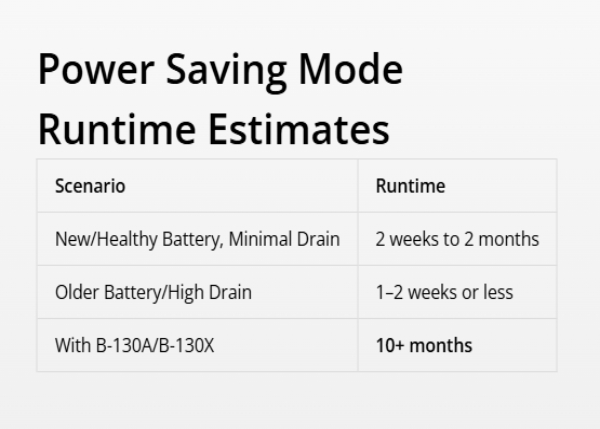

In Power Saving Mode, the dash cam minimizes power consumption by going into standby, then wakes up on impact and goes back to standby mode after 1 min recording. Provides several weeks of protection when hardwired to a car with a healthy battery and up to several months of protection when paired with BlackVue Ultra Battery (B-130A).
Ultra-Low Current Draw: Under 1 mA! It’s actually under 0.5 mA. Literally hundreds of times less than a dash cam’s standard mode draw.
Ultra-Fast Wakeup Time: Under 1 second! Starts recording as soon as an impact is detected.
Minimized heat: in standby, ELITE 9 generates almost no heat, so it operates reliably even in hot weather.
Note: buffered recording is not supported in this mode.

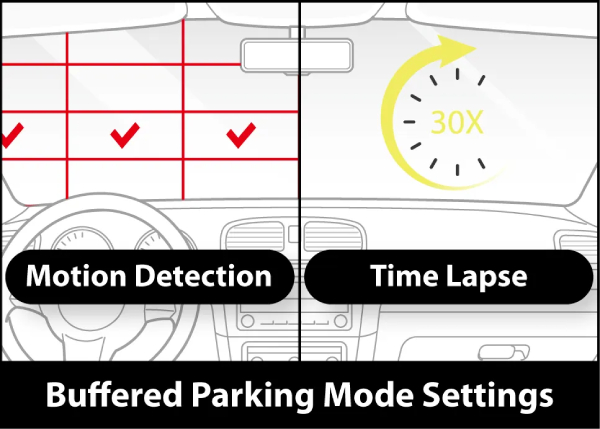

BUFFERED PARKING MODE
The Best Daily Protection with Pre-Event Recording
2 standard Parking Mode settings.
- Motion Detection: records a 1-minute buffered video whenever a motion is detected by the front or rear camera. Motion detection areas can be set manually in the app.
- Time Lapse: records constantly at 1 frame per second so each 1 minute video covers 30 minutes of real time. Recommended if you routinely park in busy areas.
Pre-impact recording: in both modes, the dash cam also records buffered Event clips in case of impact. That means 1-minute clips that start 10 seconds before the detected impact.
Comprehensive Event Detection
Detects and records driving impacts, parking impacts, sudden acceleration, hard braking, sharp turns, and overspeeding using the built-in G-Sensor and GPS.

PRE-EVENT RECORDING
Always Get the Full Picture!
With buffered recording, Event clips always include the action that led to the triggering event.
All Event clips last 1 minute and start 10 seconds before an incident, so you can clearly identify who’s at fault.

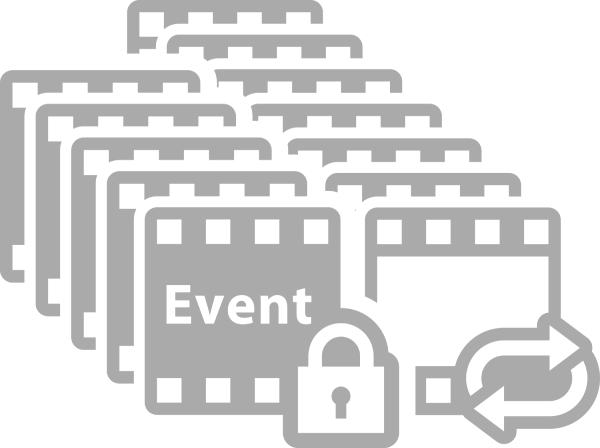

EVENT FILE PROTECTION

Your Most Important Clips are Protected
Like every dash cam, ELITE constantly records in a loop. When the microSD card storage is full, older clips are automatically overwritten by newer footage. With its Event File Protection function, ELITE ensures that critical footage is not overwritten by normal driving clips.
Protects up to 50 critical event recordings from overwriting.

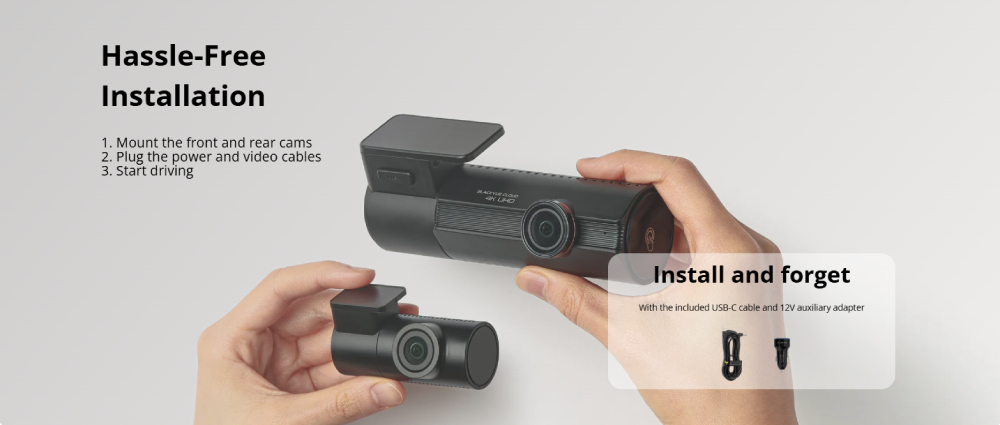

EASY INSTALLATION

QUICK SETUP



All Features At Your Fingertips

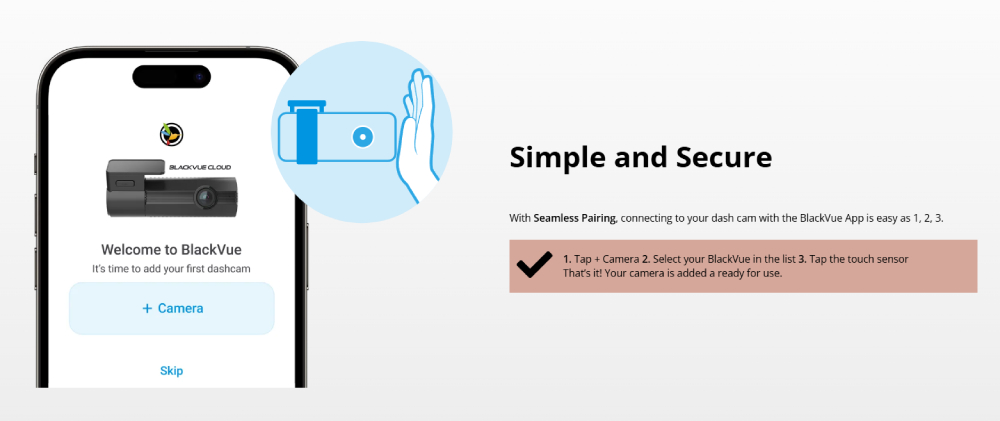

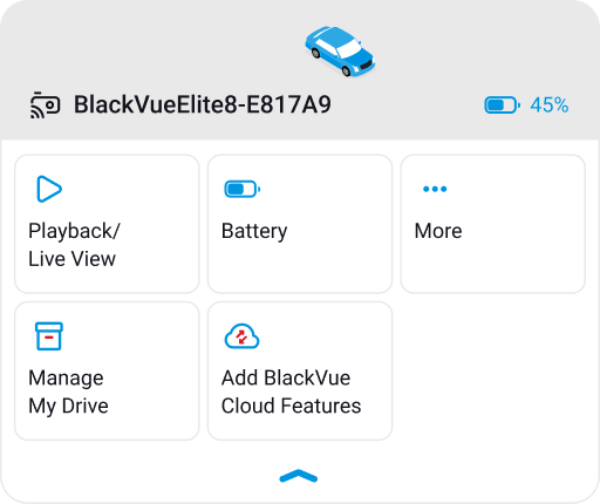

The BlackVue App is designed with simplicity and ease of use in mind. No convoluted menus. Access all the key features from the main screen.

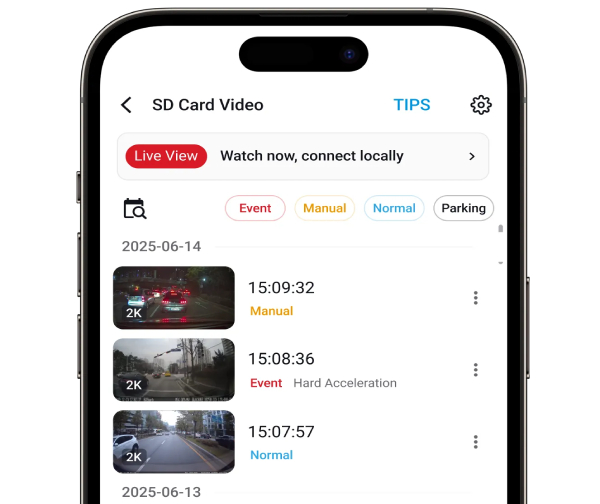

Intuitive Interface: Need to check and download a video to your phone? No problem. Just open the BlackVue App and tap the Playback/Live View button, then browse your videos.
Fast Wi-Fi: ELITE 9 lets you download a max resolution video clip in about 10-20 seconds (5GHz connection).

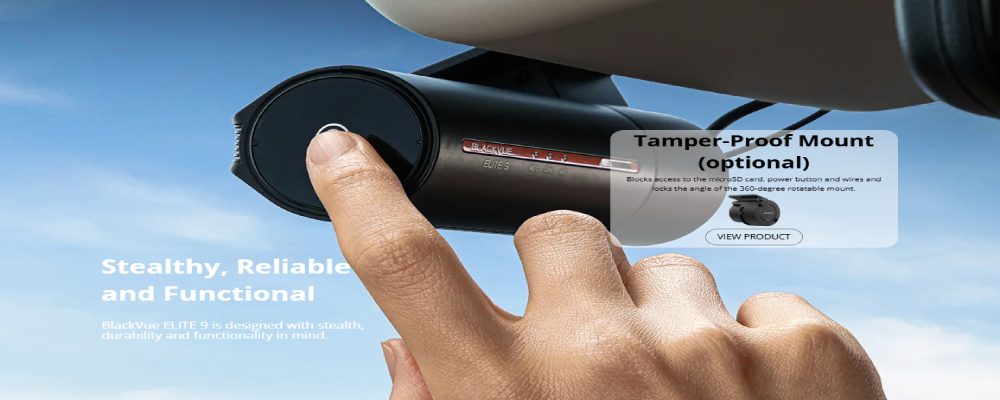

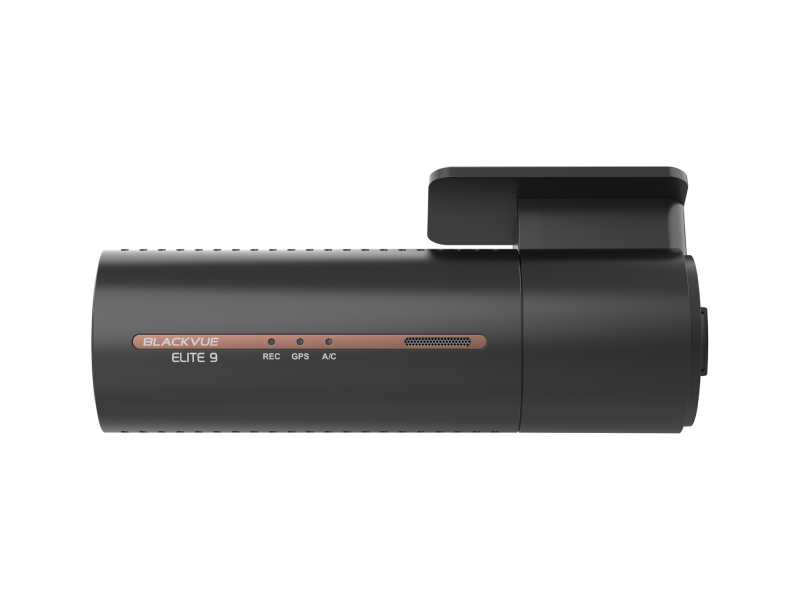

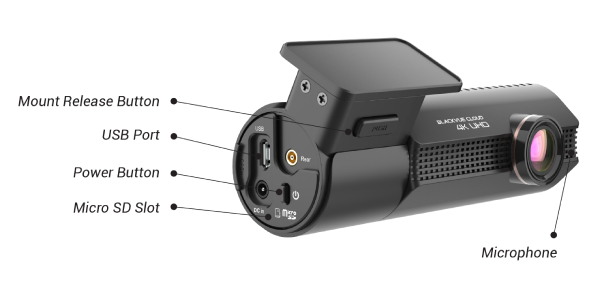

SLEEK DESIGN



FUNCTIONAL

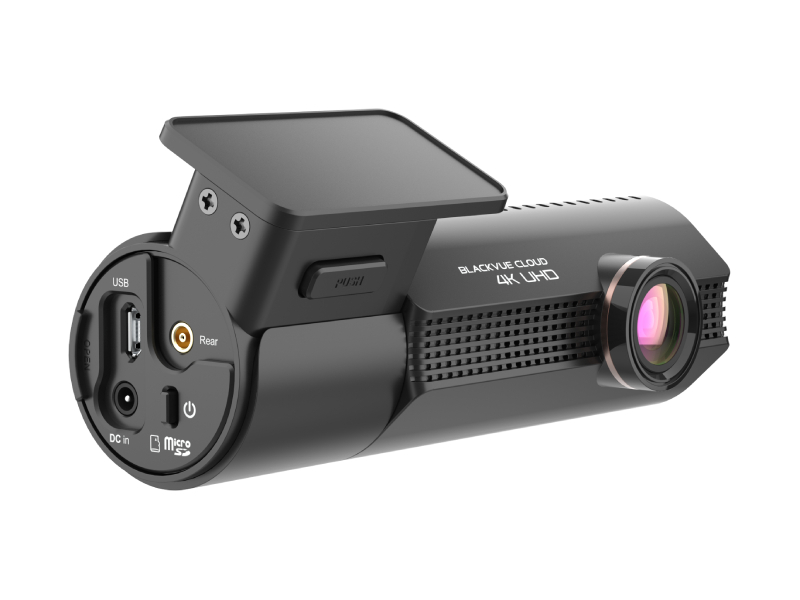

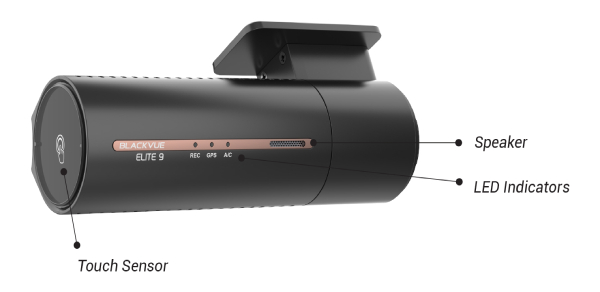

Compact and Functional Design
- USB Port: to connect the optional LTE Connectivity Module (CM100G LTE)
- Power Button: short press to turn on, low press to turn off.
- MicroSD Slot: lift the cover to access the microSD card.
- Speaker | Microphone: ELITE 9 provides voice prompts in 17 languages and records clear audio (can be switched off in settings).
- LED Indicators: view recording and connectivity statuses.
- Touch Sensor: tap to trigger Manual Event recording.
Built-in stealth: BlackVue’s signature design makes your dash cam almost invisible to the driver when installed behind the rear-view mirror.
CLOUD CONNECTIVITY

FREE STORAGE




AMAZING FEATURES

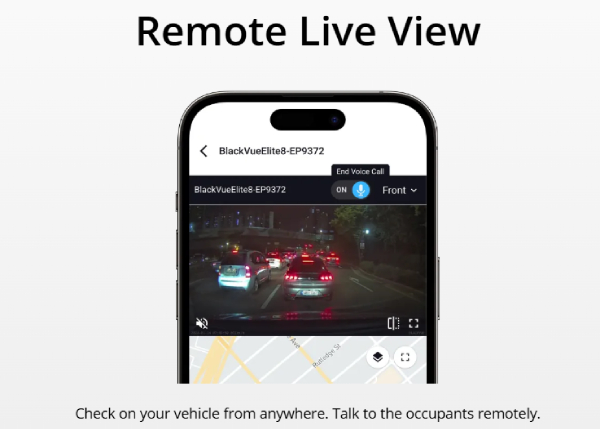

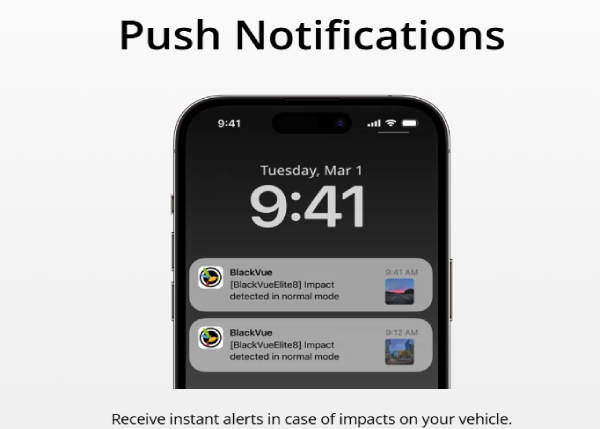

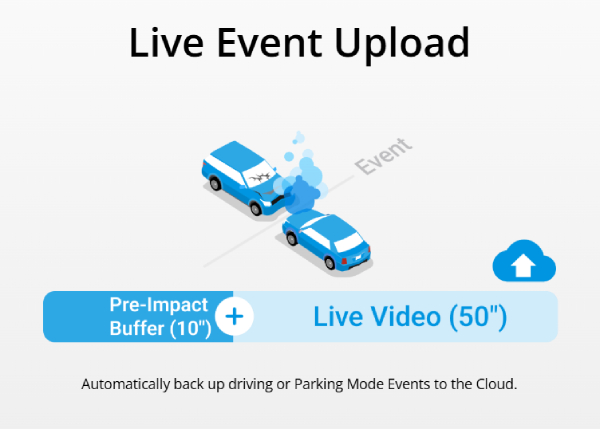

Remote Live View, Push Notifications, Live Event Upload

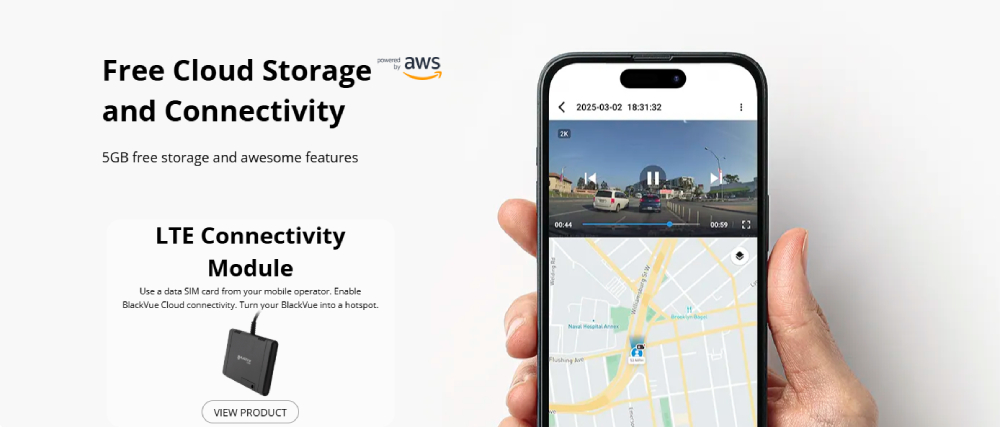

BlackVue Cloud offers peace of mind with unique features.
Two ways to connect: use the BlackVue LTE Connectivity Module or any 3rd-party Wi-Fi hotspot to connect your BlackVue to the Cloud.
5GB free storage: use your free 5GB storage to store Live Event Upload videos or remotely select and back up videos stored on the dash cam’s microSD card.

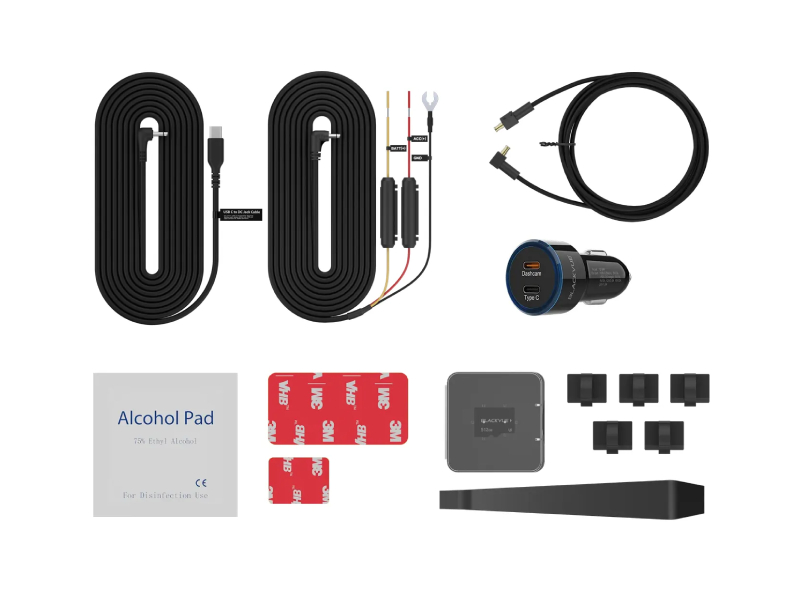

What’s Included
- Front Camera

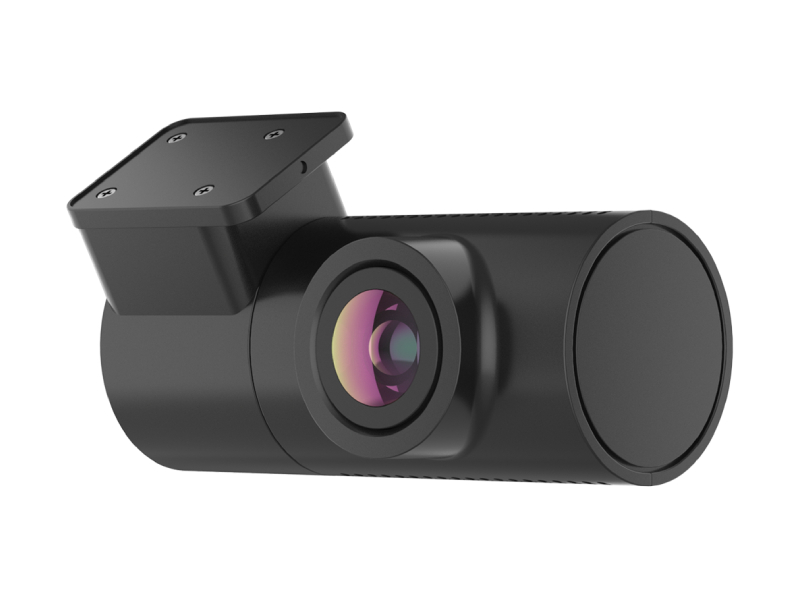

- Rear Camera
- USB-C Power Cable
- Hardwiring Cable
- USB-C 12V Adapter
- Rear camera connection cable
- MicroSD Card
- Double-sided tape forthe mounting brackets
- Pry tool / Trim Remover
- Cable clips (5 EA)
- Alcohol Pad
| Specifications | |
|---|---|
| Model Name | ELITE 9-2CH |
| Channel | 2CH |
| Highlights | 4K UHD HDR + 2K QHD HDR, 2.4-5GHz Wi-Fi, Cloud (data not included), Power Saving Parking Mode |
| Product Dimensions / Weight | Front: Length 129.7mm (5.12in) x Width 40mm (1.58in) x Height 55.3mm (2.18in), 203.2g (0.45 lb) Rear: Length 67mm (2.64in) x Width 29mm (1.14in) x Height 39.1mm (1.54in), 38.8g (0.09 lb) |
| Rear Camera Connection | Coaxial cable |
| Memory Support | microSD card up to 1TB |
| Smart Event Recording | Driving Impact Parking Impact Overspeed Hard Acceleration Hard Braking Hard Cornering (Including 10 sec. Pre-Event buffer) |
| Parking Mode | Power Saving ( < 1mA) Motion Detection Time Lapse (Parking Mode add-on required) |
| Parking Mode Event Voice Notifications | YES |
| Protection Systems | Timer Cut-Off: 1~48H Low Voltage Cut-Off: Passenger Vehicle 11.8~12.5V or Heavy Vehicle 22.8~24V High Temperature Cut-Off (70°C) |
| Imaging Sensor | Front: STARVIS 2 CMOS Sensor (IMX678) Rear: STARVIS 2 CMOS Sensor (IMX675) |
| Viewing Angle | Front: Diagonal 146° , Horizontal 125°, Vertical 68° Rear: Diagonal 142° , Horizontal 118°, Vertical 62° |
| Resolution Frame Rate | Front: 4K UHD HDR@30fps Rear: 2K QHD HDR@30fps * Frame rate may vary during Wi-Fi streaming. |
| Video Codec | H.265 (HEVC), H.264 (AVC) |
| Image Quality and Bitrate Front/Rear | Extreme (H.265): 60+25 Mbps Extreme (H.264): 40+25 Mbps High (Default): 30+20 Mbps Medium: 20+15 Mbps Low: 10+10 Mbps |
| Format Free | YES (Adaptive) |
| Event File Overwrite Protection | YES (up to 50) |
| SD Card Failure Alert | YES |
| Scheduled Reboot | YES |
| Video File Extension | MP4 |
| Wi-Fi | Built-in (802.11ac – 2.4-5GHz) |
| Cloud Compatible | YES |
| GPS | Built-in (Dual Band : GPS, GLONASS) |
| Microphone | Built-in |
| Speaker | Built-in |
| Impact Sensor | 3-Axis Acceleration Sensor |
| LED Indicators | Front: Recording status, GPS connectivity, A/C (App/Cloud) connectivity Rear: Power LED |
| Button | Power Button: Short press to turn on / Long press to turn off. Touch Sensor: Pressing the touch sensor triggers manual recording depending on the firmware settings. Bluetooth Remote Button (Optional): Manual Recording |
| Operation Temperature | -20 °C − 65 °C (-4 °F − 149 °F) |
| Storage Temperature | -20 °C − 80 °C (-4 °F − 176 °F ) |
| High Temp Cut Off | Approx. 75 °C (167 °F) |
| Backup Battery | Built-in supercapacitor |
| Input Power | DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC) |
| Power Consumption | Normal Mode (GPS On/2CH): 5.52W (Avg. 460mA /12V) Parking Mode (GPS Off/2CH): 4.32W (Avg. 360mA /12V) Power Saving Mode: Under 12mW (0.012W) (Avg. <1mA / 12V) * Actual power consumption may vary depending on use conditions and environment. |
| Certifications | Front: Telec, IC(ISED), CE, FCC, RCM, RoHS, WEEE Rear: FCC, IC(ISED), CE, RoHS, WEEE |
| Software | BlackVue Viewer * Windows 7 or higher, Mac Sierra OS X (10.12) or higher FLEETA Web Viewer * Chrome 71 or higher, Safari 13.0 or higher |
| App | BlackVue App * Android 10.0 or higher, iOS 15.0 or higher |
| Others | Adaptive Format-Free File Management System |
| Bluetooth | Built-in (V2.1+EDR/5.3) |
| LTE | External (with optional LTE Module) |
| Warranty | 2 Years |
