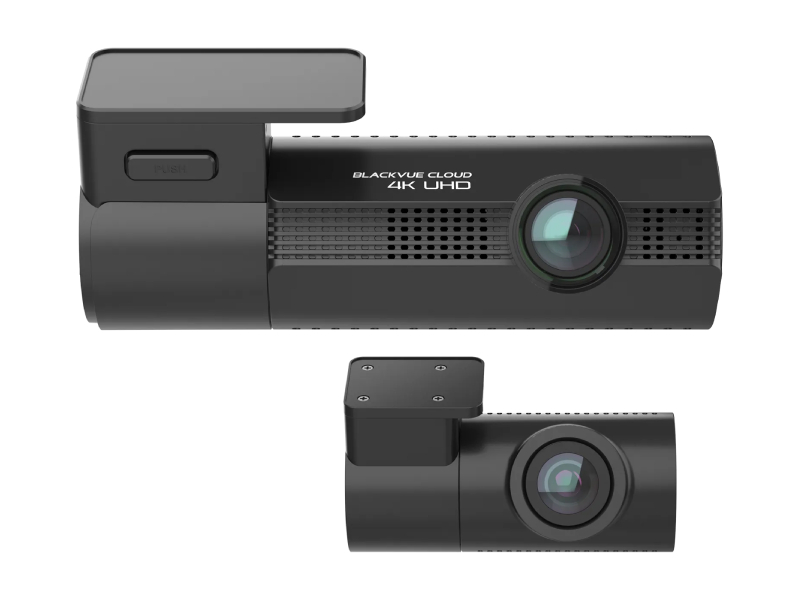

Blackuve ELITE 10 2 Channel 64GB 4K Ultra HD Front and Rear Dash Camera - ELITE10-2CH-64

Model #:ELITE10-2CH-64
  • 4K Ultra HD Front and Rear.
  • Sony STARVIS 2 Sensors with HDR Support on the Front.
  • Ultra-low Power Parking Mode.
  • Fast 5GHz Wi-Fi.
  • Cloud compatibility via optional LTE Connectivity Module or 3rd-Party Wi-Fi hotspot.

ELITE10-2CH-64_1

ELITE10-2CH-64_2

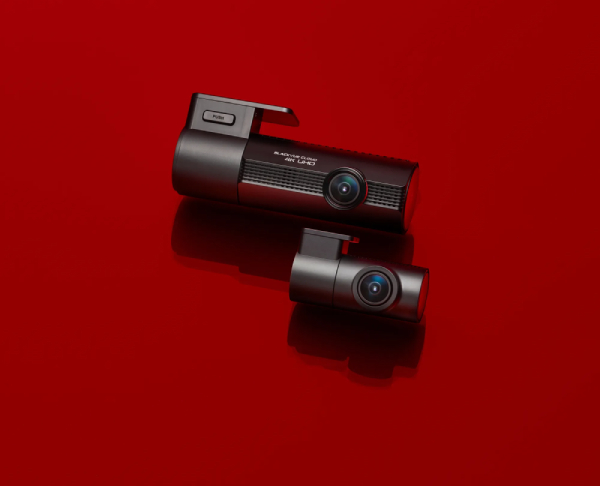

Dual 4K Dash Cam

Redefined Dual 4K Clarity with HDR

SONY STARVIS 2​

HDR

ELITE10-2CH-64_3



Cloud Connectivity

ELITE10-2CH-64_4



​Power Saving Parking Mode​

Up to over 12 months protection when paired with B-130A

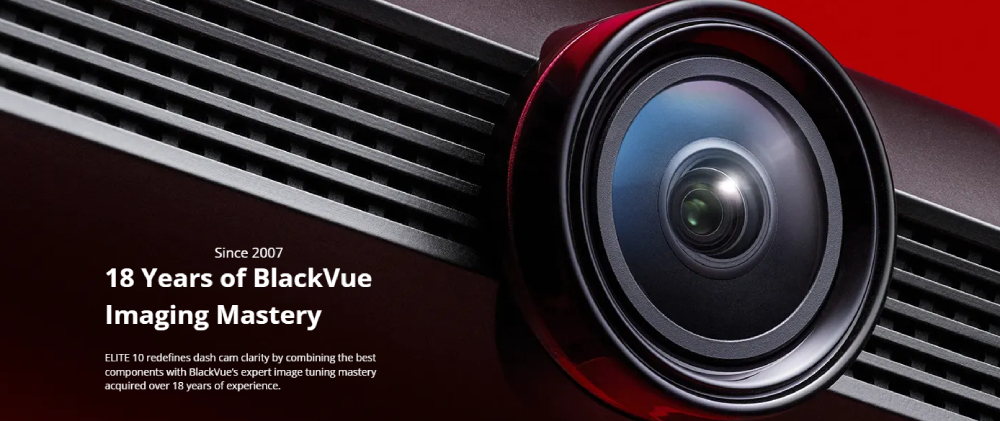

IMAGING MASTRY



ELITE10-2CH-64_5



4K STARVIS 2, DUAL HDR

Dual 4K Clarity & HDR

ELITE 10 offers improved dash cam performance with advanced HDR technology. It is designed to provide clear and well-balanced video recordings in both bright sunlight and low-light situations.

Top-of-the-line Sony IMX678 STARVIS 2 image sensors in both the front and rear cameras, recording at 3840×2160 pixels resolutions.

HDR support on on the front camera. BlackVue HDR also reduces motion blur and improves detail, making license plates easier to read on moving vehicles.

Both cameras integrates an 8-element f/1.7 aperture lens with great light-gathering capability. The lenses cover a 146-degree angle wide field of view with minimal distortion.

ELITE10-2CH-64_6

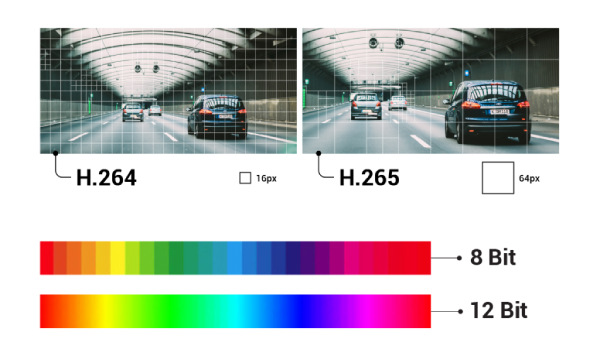

12-BIT CAPTURE, HEVC

12-Bit Capture, HEVC Compression

ELITE 10 combines 4K 12-bit capture and HEVC compression to deliver the most true-to-life footage.

ELITE 10 Series utilizes professional-grade 12-bit 4K sensors, which captures a massive palette of over 68 billion colors at the source. This rich data is intelligently processed, resulting in a final 8-bit video file that boasts superior clarity.

ELITE 10 Series utilizes HEVC (H.265) compression, which is the leading standard in 4K recording and broadcasting. The primary benefit of HEVC is that it ensures the best video quality at any bitrate.



PARKING MODE PROTECTION

24/7 Protection for your vehicle

With the Parking Mode Accessories

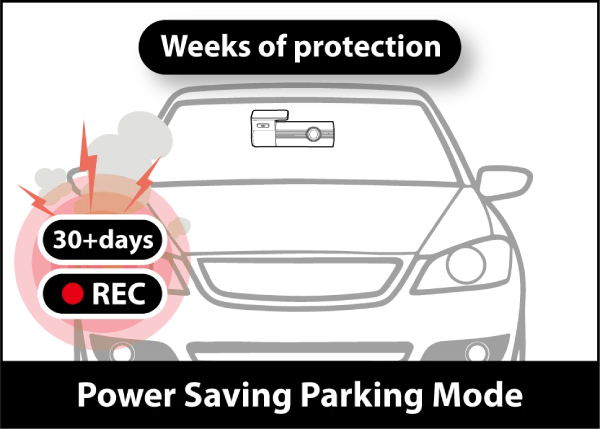

POWER SAVING MODE

ELITE10-2CH-64_7
ELITE10-2CH-64_8
ELITE10-2CH-64_9

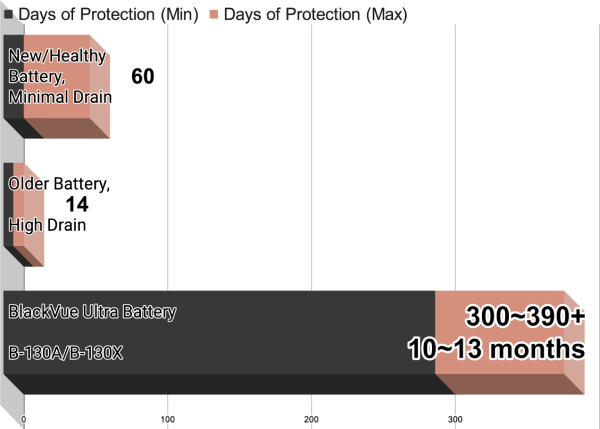

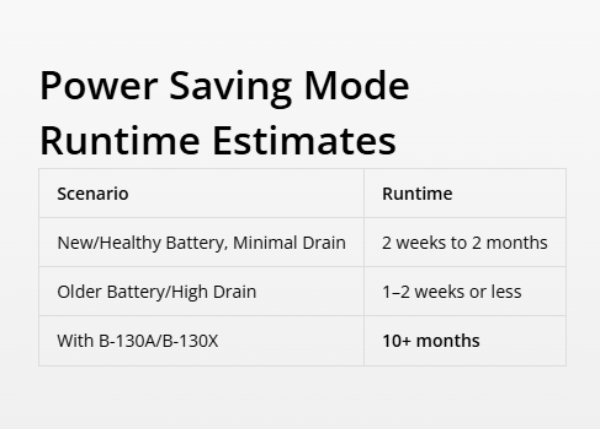

Up to Over 12 Months of Protection!

In Power Saving Mode, the dash cam minimizes power consumption by going into standby, then wakes up on impact and goes back to standby mode after 1 min recording.

Provides several weeks of protection when hardwired to a car with a healthy battery and up to several months of protection when paired with BlackVue Ultra Battery (B-130A).

Ultra-Low Current Draw: Under 1 mA! It’s actually under 0.5 mA. Literally hundreds of times less than a dash cam’s standard mode draw.

Ultra-Fast Wakeup Time: Under 1 second! Starts recording as soon as an impact is detected.

Minimized heat: in standby, ELITE 10 generates almost no heat, so it operates reliably even in hot weather.

Note: buffered recording is not supported in this mode.

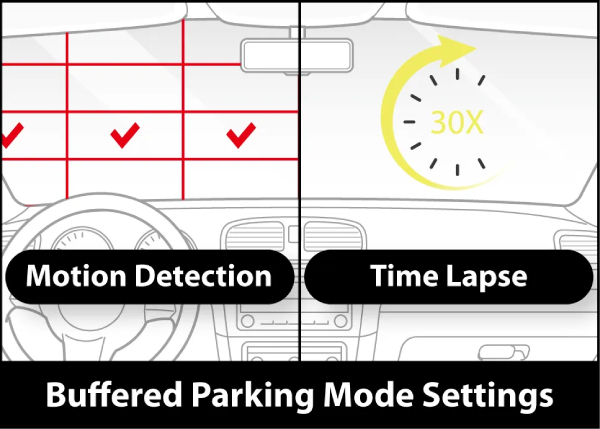

BUFFERED PARKING MODE

ELITE10-2CH-64_25

The Best Daily Protection with Pre-Event Recording

2 standard Parking Mode settings.

  • Motion Detection: records a 1-minute buffered video whenever a motion is detected by the front or rear camera. Motion detection areas can be set manually in the app.
  • Time Lapse: records constantly at 1 frame per second so each 1 minute video covers 30 minutes of real time. Recommended if you routinely park in busy areas.

Pre-impact recording: in both modes, the dash cam also records buffered Event clips in case of impact. That means 1-minute clips that start 10 seconds before the detected impact.



SMART EVENT RECORDING

Comprehensive Event Detection


ELITE10-2CH-64_10

PRE-EVENT RECORDING

Always Get the Full Picture!

With buffered recording, Event clips always include the action that led to the triggering event.

All Event clips last 1 minute and start 10 seconds before an incident, so you can clearly identify who’s at fault.


ELITE10-2CH-64_11

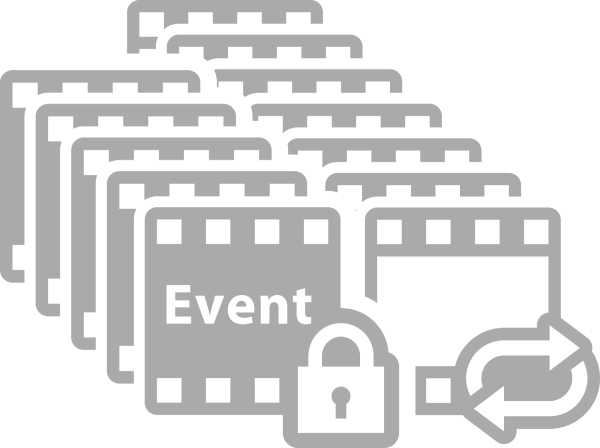

EVENT FILE PROTECTION

Your Most Important Clips are Protected

Like every dash cam, ELITE constantly records in a loop. When the microSD card storage is full, older clips are automatically overwritten by newer footage. With its Event File Protection function, ELITE ensures that critical footage is not overwritten by normal driving clips.

Protects up to 50 critical event recordings from overwriting.

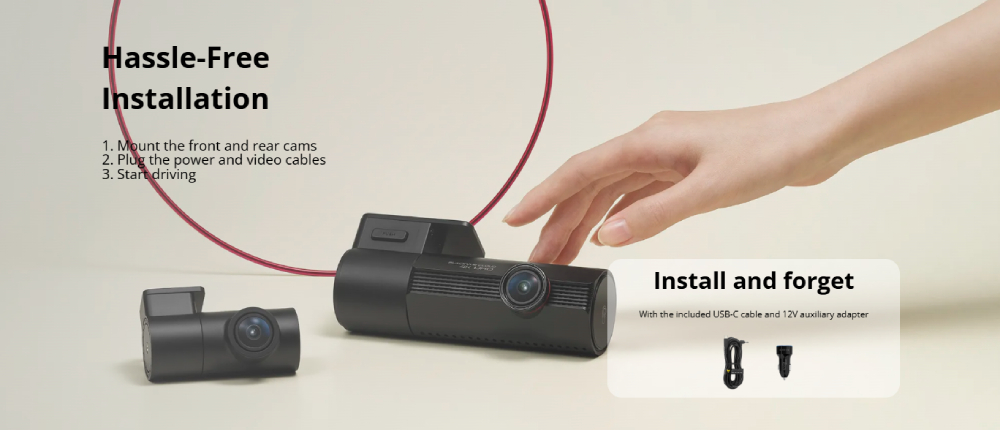

EAST INSTALLATION

ELITE10-2CH-64_12

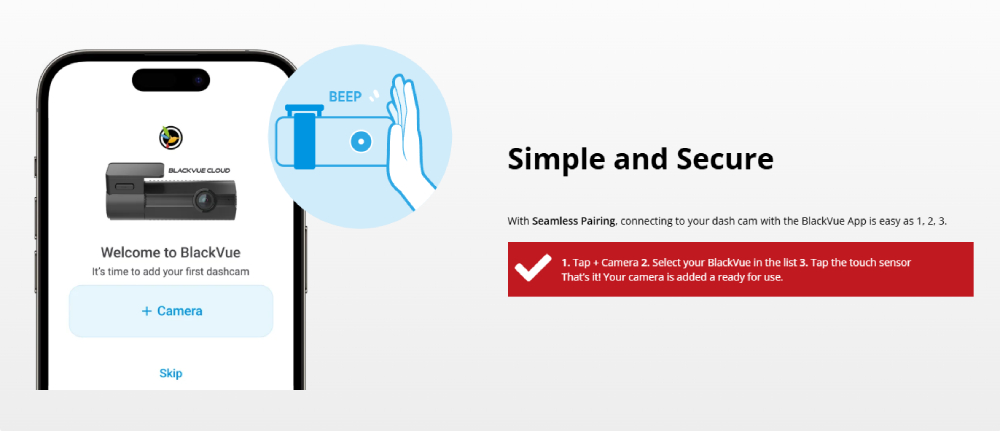

QUICK SETUP

ELITE10-2CH-64_13

ELITE10-2CH-64_14
ELITE10-2CH-64_15

SIMPLE OPERTATION

All Features At Your Fingertips

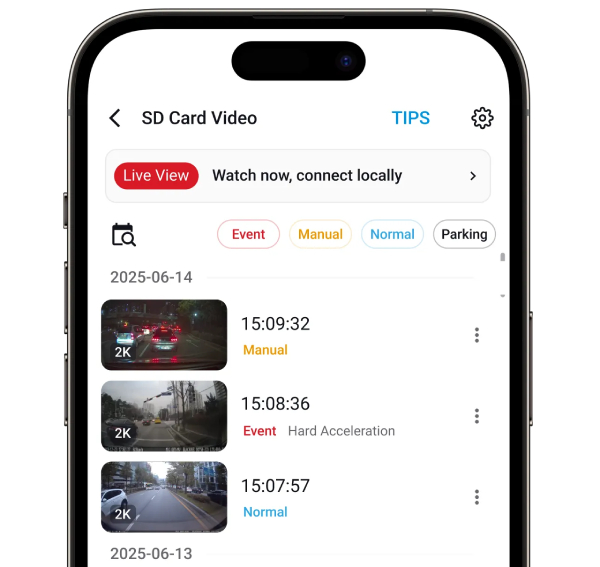

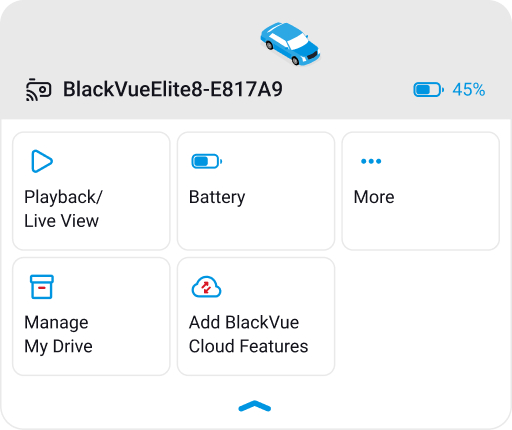

The BlackVue App is designed with simplicity and ease of use in mind. No convoluted menus. Access all the key features from the main screen.

Intuitive Interface: Need to check and download a video to your phone? No problem. Just open the BlackVue App and tap the Playback/Live View button, then browse your videos.

Fast Wi-Fi: ELITE 10 lets you download a max resolution video clip in about 10-20 seconds (5GHz connection).

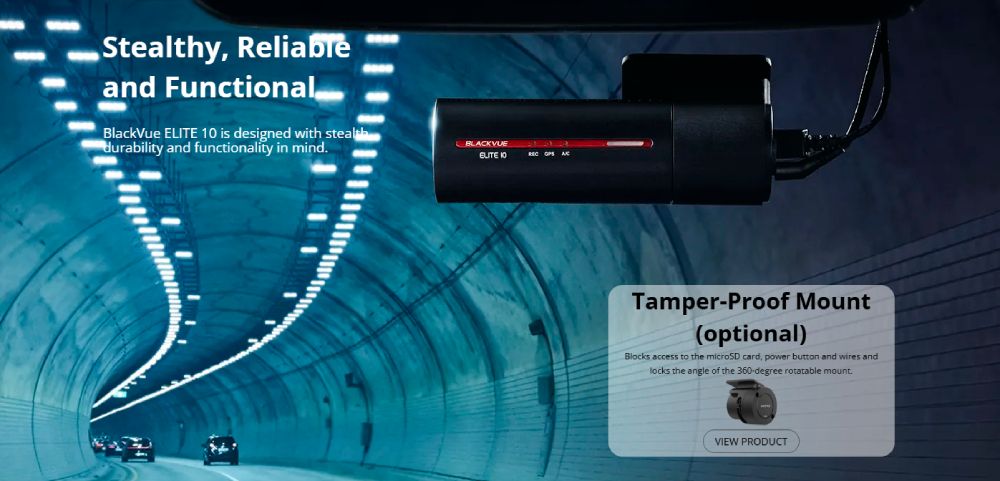

SLEEK DESIGN


ELITE10-2CH-64_17
ELITE10-2CH-64_18

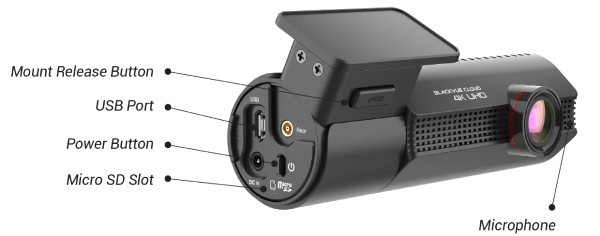

FUNCTIONAL

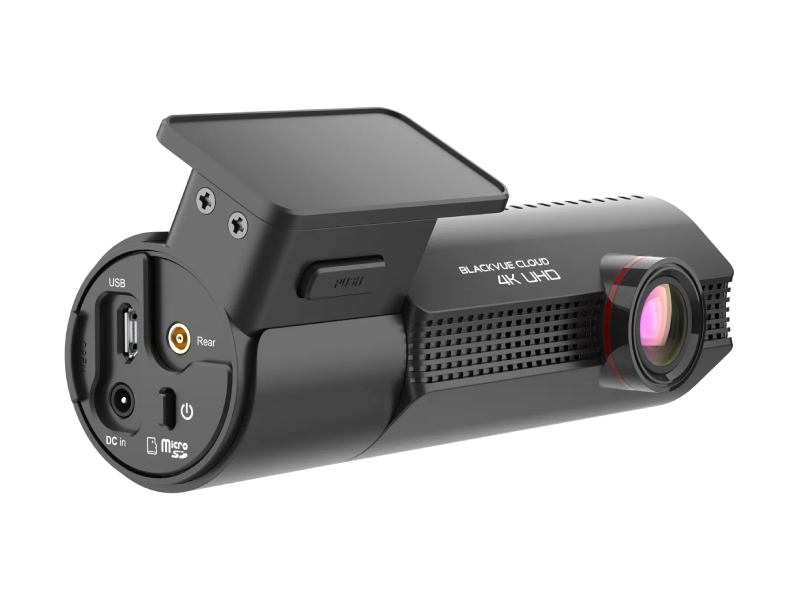

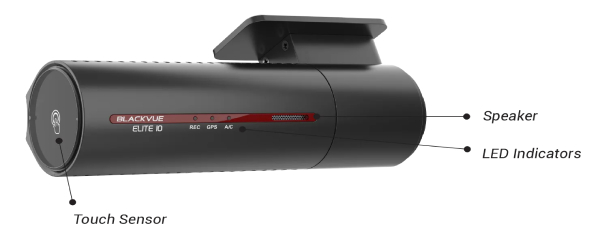

Compact and Functional Design

  • USB Port: to connect the optional LTE Connectivity Module (CM100G LTE)
  • Power Button: short press to turn on, low press to turn off.
  • MicroSD Slot: lift the cover to access the microSD card.
  • Speaker | Microphone: ELITE 10 provides voice prompts in 17 languages and records clear audio (can be switched off in settings).
  • LED Indicators: view recording and connectivity statuses.
  • Touch Sensor: tap to trigger Manual Event recording.

Built-in stealth: BlackVue’s signature design makes your dash cam almost invisible to the driver when installed behind the rear-view mirror.


ELITE10-2CH-64_19

Safe Operation in Extreme Temperatures

ELITE 10 is engineered to run smoothly in both hot and cold weather.

Supercapacitor: provides short-term power for error-free recording in case of power loss. Highly resistant and stable in extremely hot and cold temperatures.

Overheat protection: ELITE 10 operates at temperatures ranging from -20°C (-4°F) to +65°C (149°F). If the ambient temperature reaches 75°C (167°F), it shuts down to protect itself. When down to 65°C, it turns back on.

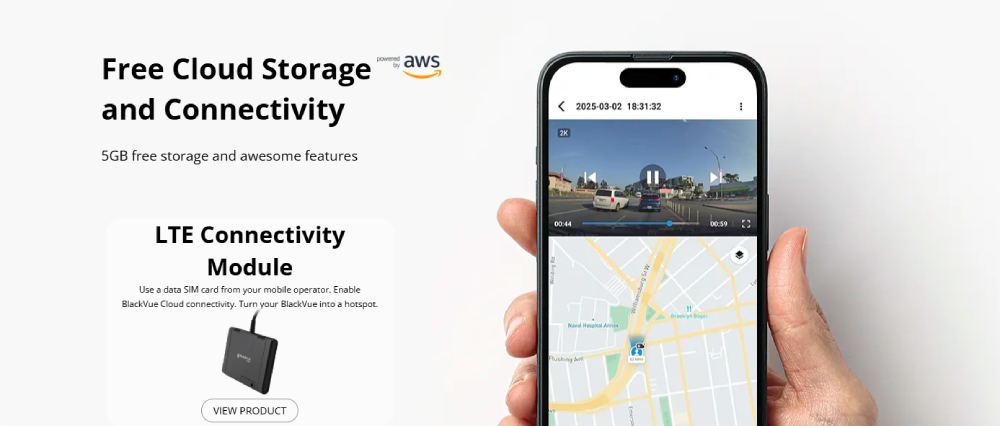

CLOUD CONNECTIVITY

ELITE10-2CH-64_20


FREE STORAGE

ELITE10-2CH-64_21

ELITE10-2CH-64_22
ELITE10-2CH-64_23
ELITE10-2CH-64_24

AMAZING FEATURES

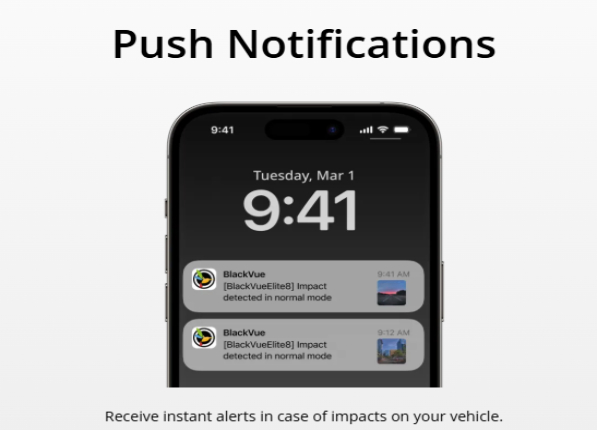

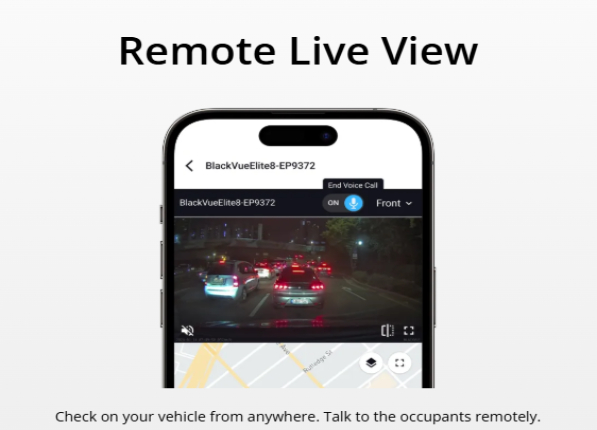

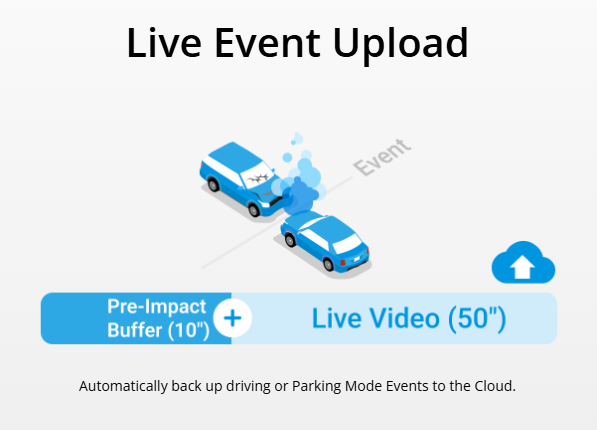

Remote Live View, Push Notifications, Live Event Upload

BlackVue Cloud offers peace of mind with unique features.

Two ways to connect: use the BlackVue LTE Connectivity Module or any 3rd-party Wi-Fi hotspot to connect your BlackVue to the Cloud.

5GB free storage: use your free 5GB storage to store Live Event Upload videos or remotely select and back up videos stored on the dash cam’s microSD card.

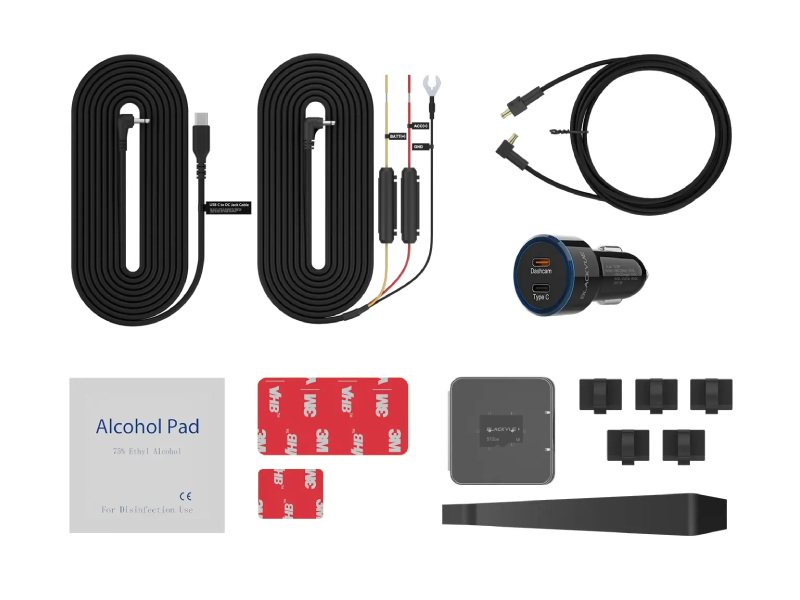

What’s Included

  • Front Camera
  • Rear Camera
  • USB-C Power Cable
  • Hardwiring Cable
  • USB-C 12V Adapter
  • Rear camera connection cable
  • MicroSD Card
  • Double-sided tape for the mounting brackets
  • Pry tool / Trim Remover
  • Cable clips (5 EA)
  • Alcohol Pad

PACKAGE INFO
Weight816g (1.80lbs)
DimensionsL 157mm (6.18in) x W 138mm (5.44in) x H 90mm (3.54in)
MEMORY CAPACITY64GB, 128GB, 256GB, 512GB, 1TB
Specifications
Model NameELITE 10-2CH
Channel2CH
Highlights4K UHD HDR + 4K UHD, 2.4-5GHz Wi-Fi, Cloud (data not included), Power Saving Parking Mode
Product Dimensions / WeightFront: Length 129.7mm (5.12in) x Width 40mm (1.58in) x Height 55.3mm (2.18in), 195g (0.43 lb)
Rear: Length 67mm (2.64in) x Width 29mm (1.14in) x Height 39.1mm (1.54in), 40g (0.09 lb)
Rear Camera ConnectionCoaxial cable
Memory SupportmicroSD card up to 1TB
Smart Event RecordingDriving Impact
Parking Impact
Overspeed
Hard Acceleration
Hard Braking
Hard Cornering
(Including 10 sec. Pre-Event buffer)
Parking ModePower Saving ( < 1mA)
Motion Detection
Time Lapse
(Parking Mode add-on required)
Parking Mode Event Voice NotificationsYES
Protection SystemsTimer Cut-Off: 1~48H
Low Voltage Cut-Off: Passenger Vehicle 11.8~12.5V or Heavy Vehicle 22.8~24V
High Temperature Cut-Off (75°C)
Imaging SensorFront & Rear: STARVIS 2 CMOS Sensor (IMX678)
Viewing AngleFront & Rear: Diagonal 146° , Horizontal 125°, Vertical 68°
Resolution Frame RateFront & Rear: 4K UHD@30fps (Dual 4K)
* Frame rate may vary during Wi-Fi streaming.
Video CodecH.265 (HEVC), H.264 (AVC)
Image Quality and Bitrate Front/RearExtreme (H.265): 60+30 Mbps
Extreme (H.264): 40+30 Mbps
High (Default): 30+30 Mbps
Medium: 20+20 Mbps
Low: 10+10 Mbps
Format FreeAdaptive Format-Free (US 10,922,270 B2)
Event File Overwrite ProtectionUp to 50 event files can be protected from being overwritten
SD Card Failure AlertYES
Scheduled RebootYES
Video File ExtensionMP4
Wi-FiBuilt-in (802.11ac – 2.4-5GHz)
Cloud CompatibleYES
GPSBuilt-in (Dual Band : GPS, GLONASS)
MicrophoneBuilt-in
SpeakerBuilt-in
Impact Sensor3-Axis Acceleration Sensor
LED IndicatorsFront: Recording status, GPS connectivity, A/C (App/Cloud) connectivity
Rear: Power LED
ButtonPower Button: Short press to turn on / Long press to turn off.
Touch Sensor: Pressing the touch sensor triggers manual recording depending on the firmware settings.
Bluetooth Remote Button (Optional): Manual Recording
Operation Temperature-20 °C − 65 °C (-4 °F − 149 °F)
Storage Temperature-20 °C − 80 °C (-4 °F − 176 °F )
High Temp Cut OffApprox. 75 °C (167 °F)
Backup BatteryBuilt-in supercapacitor
Input PowerDC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC)
Power ConsumptionNormal Mode (GPS On/2CH): 510mA
Parking Mode (GPS Off/2CH): 380mA
Power Saving Mode: Under 12mW (0.012W) (Avg. <1mA / 12V)
* Actual power consumption may vary depending on use conditions and environment.
CertificationsFront: Telec, IC(ISED), CE, FCC, RCM, RoHS, WEEE
Rear: FCC, IC(ISED), CE, RoHS, WEEE
SoftwareBlackVue Viewer
* Windows 7 or higher, Mac Sierra OS X (10.12) or higher
FLEETA Web Viewer
* Chrome 71 or higher, Safari 13.0 or higher
AppBlackVue App, FLEETA App
* Android 10.0 or higher, iOS 15.0 or higher
OthersAdaptive Format-Free File Management System
BluetoothBuilt-in (V2.1+EDR/5.3)
LTEExternal (with optional LTE Module)
Warranty2 Years
