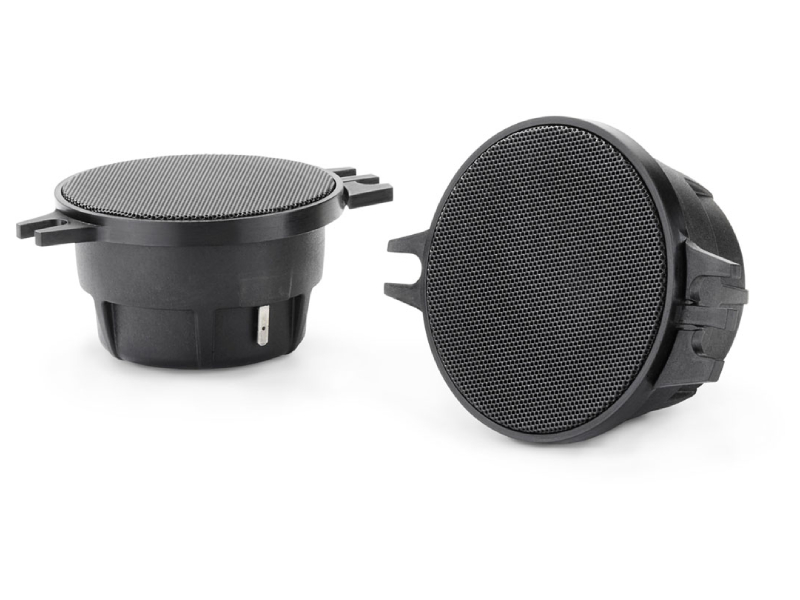

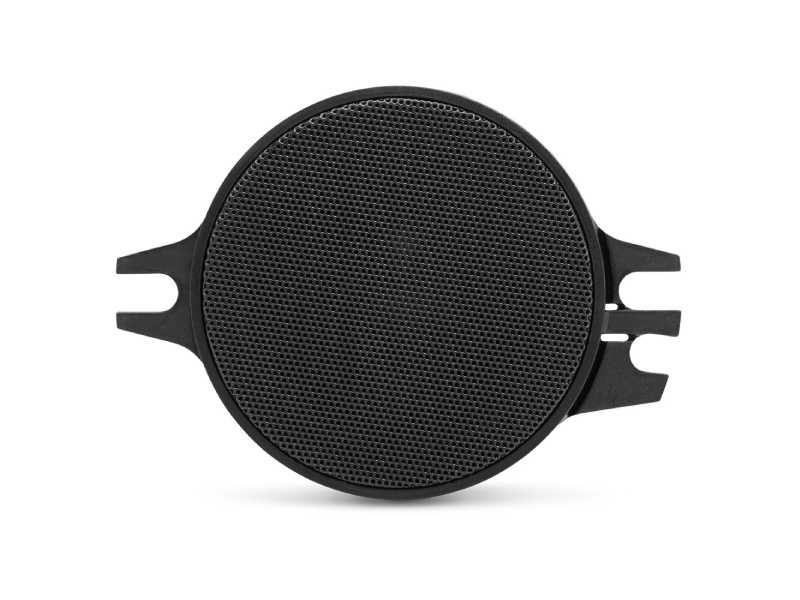

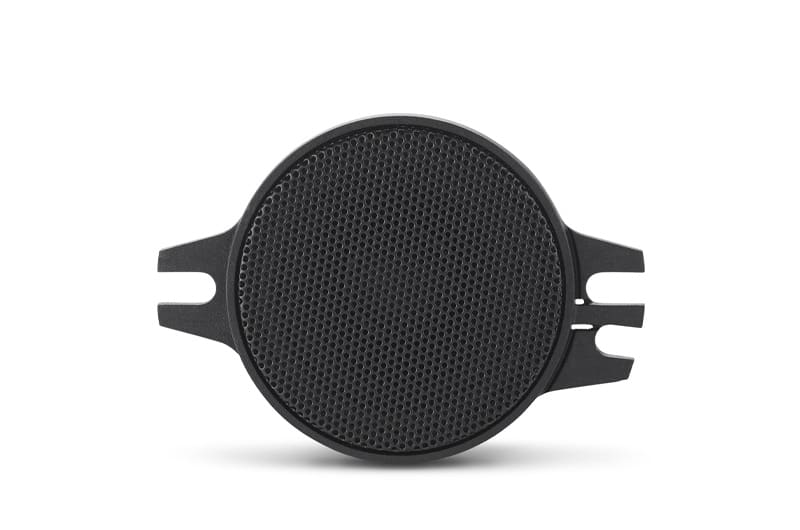

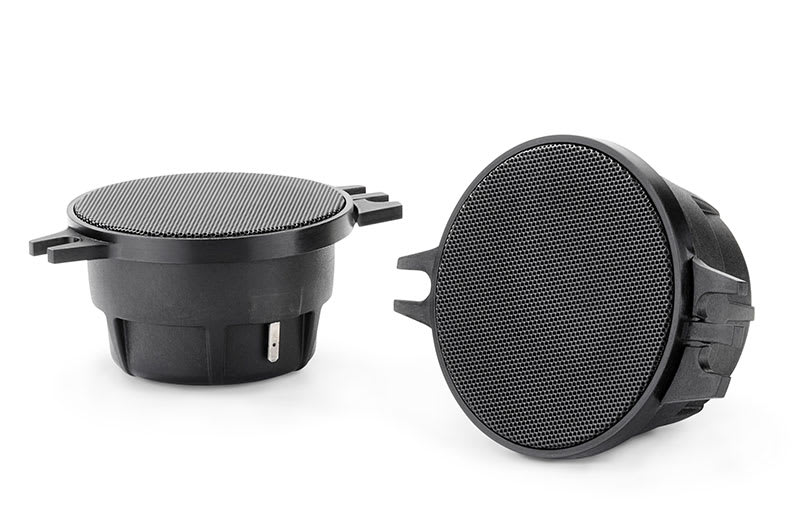

2.75" JL Audio Custom-Fit Car Component Midtweeter Speakers for Ram/Toyota/GM - CF-275smt
GREAT SOUND AND A PERFECT FIT

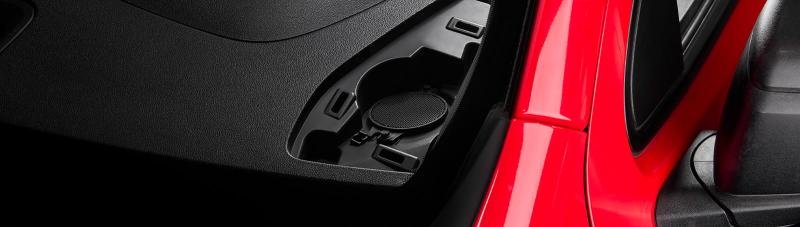

These custom-fit (CF) speakers from JL Audio are engineered to deliver incredible audio output with easy installation in some of the most popular vehicles, including many Ram, Toyota, Chevrolet and GMC models. The unique frame designs offer seamless, drop-in installation in existing factory speaker locations.
WHAT YOU'LL LOVE
ENGINEERED FOR PERFORMANCE
For efficiency and extended high-frequency response, each driver in the CF series features a unique cone and surround material combination. The speakers can be used as individual drivers for flexible system design in active systems.
DMA-OPTIMIZED SPEAKERS
Proprietary motor, suspension and cone modeling systems are used to achieve outstanding linearity, low distortion and stellar sound quality. A flat, linear profile spider promotes linear compliance, while a robust motor structure delivers superior power handling and better overall fidelity at high levels.
ADVANCED FRAME DESIGN
Benefiting from years of design experience, all of the CF midtweeters feature glass-filled, high-temperature polymer frames outfitted with insert-molded terminals and unique frame designs for easy, drop-in installation.
MADE TO FIT

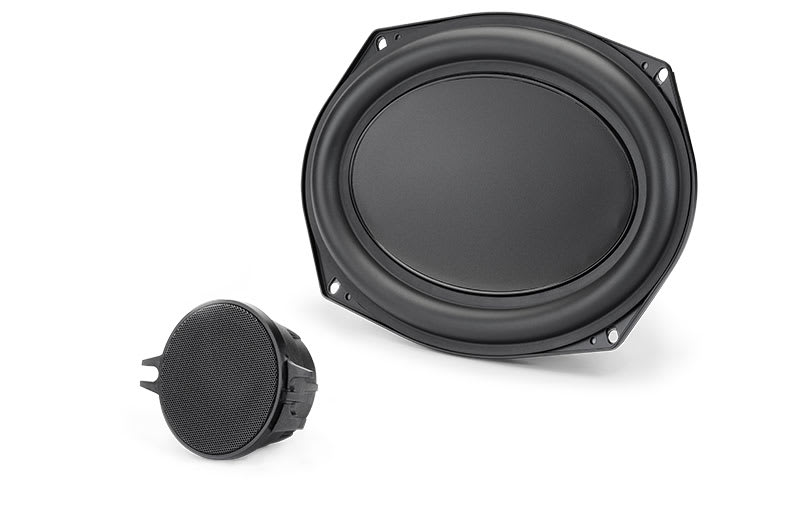

CF component drivers are available in a 6-by-9-inch woofer or a 2.75-inch midtweeter to provide easy, direct installation in a variety of existing OEM interior configurations.
POWERFULLY ADAPTABLE

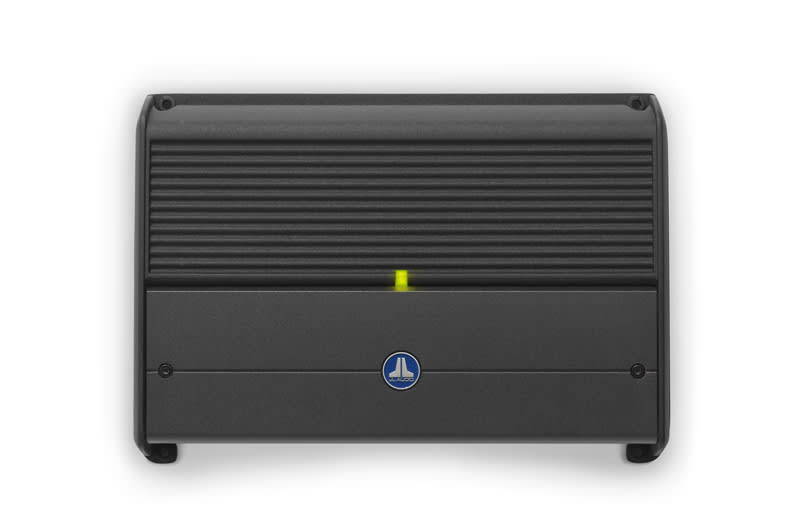

When powered by an amplifier, the CF speaker system delivers superb sound in a wide range of car audio applications.
In the Box
CF-275smt
- Two sealed back mid-tweeters
- Two OEM adapter rings
- Four 1" mounting screws
- Four 5/8” mounting screws
- Two 0.187” female crimpable connectors
- Two 0.110" female crimpable connectors
- Four splice connectors

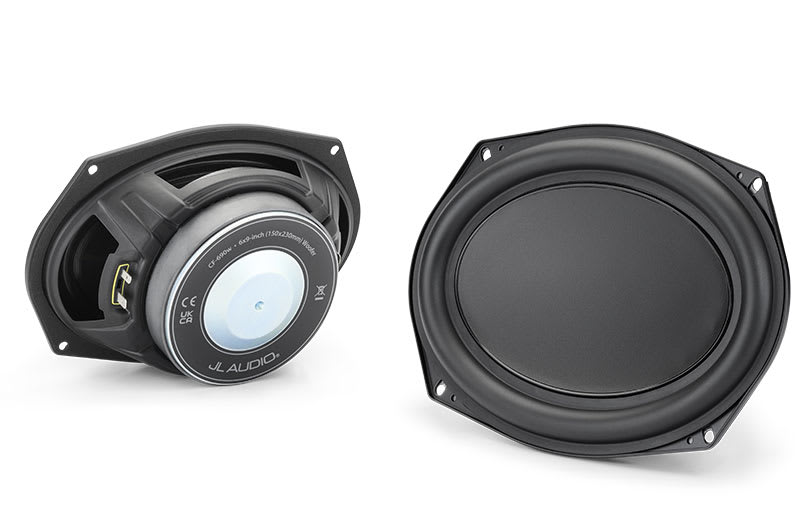

CF-690w
- Two woofers
- Four OEM adapter rings
- Two woofer foam gaskets
- Sixteen 1" mounting screws
- Two 0.187” female crimpable connectors
- Two 0.110" female crimpable connectors
| General | |
|---|---|
| Warranty | 1 yea |
| Sizes | 2.75"/6 x 9" |
| Continuous power handling (RMS) | 2.75": 40 W 6 x 9": 100 W |
| Sensitivity (SPL @ 1 W/1 m) | 2.75": 86.5 dB 6 x 9": 84.8 dB |
| Frequency response (+/- 3 dB) | 2.75": 410 Hz-20 kHz 6 x 9": 36-610 Hz |
| Nominal impedance | 4 Ω |
| Recommended amplifier power (RMS) | 2.75": 25-75 W/Channel 6 x 9": 50-150 W/Channel |
| Cone material | Mineral-filled polypropylene |
| Grille(s) included | 2.75": yes |
| Networking & Connections | |
| Speaker connections | Spade connectors |
| Mounting Dimensions | |
| Frame outer diameter | 2.75": 2.85" (72 mm) 6 x 9": 6.38 x 9.13" (162 x 232 mm) |
| Mounting depth clearance | 2.75": 1.45" (37 mm) 6 x 9": 2.85" (72 mm) |
| Frontal grille protrusion | 2.75": 0.28" (7 mm) |
| Motor outer diameter | 6 x 9": 4.72" (120 mm) |
| Crossover Specifications | |
| Width | 2.75": 2.53" (64 mm) |
| Height | 2.75": 1.93 (49 mm) |
| Depth | 2.75": 1.09" (28 mm) |
