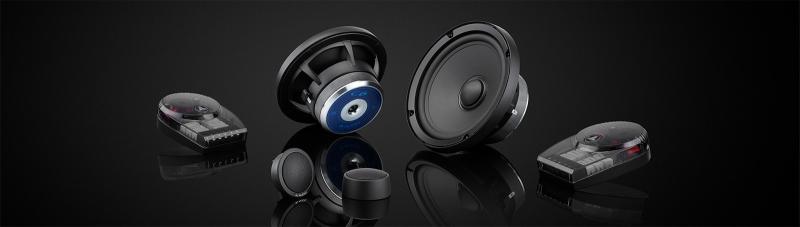

6.5" JL Audio C6 Three-way Component Speaker System - C6-653
PRECISE CAR AUDIO FIDELITY AND PERFORMANCE

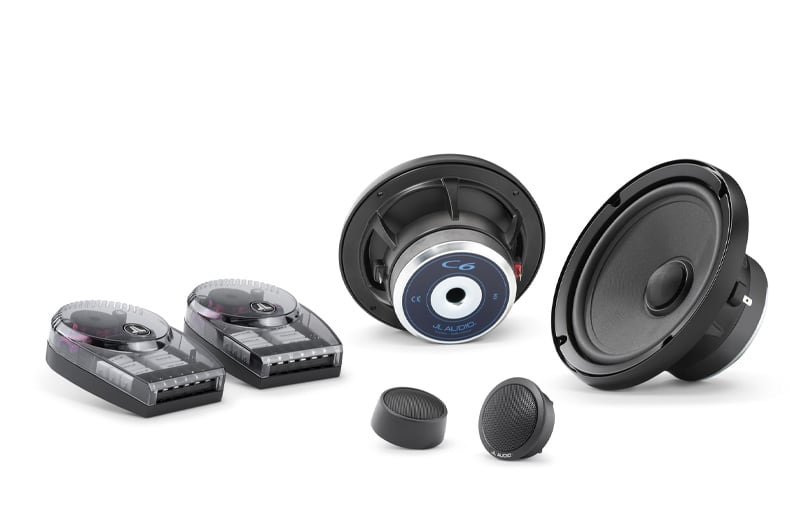

Born from the same DNA as our flagship JL Audio C7 speakers, the C6 series component system combines the smoothness and transparency of a premium silk dome tweeter with a top-flight 6.5-inch woofer to create a loudspeaker system with exceptional refinement and dynamic capability.
WHAT YOU'LL LOVE
PREMIUM AUDIO QUALITY
Pairing a full-frame 6.5-inch woofer with a 1-inch silk dome tweeter, the C6 series offers advanced sound technology for an exceptional car audio listening experience. When purchased as a component system, premium passive crossover networks are included with the speakers.

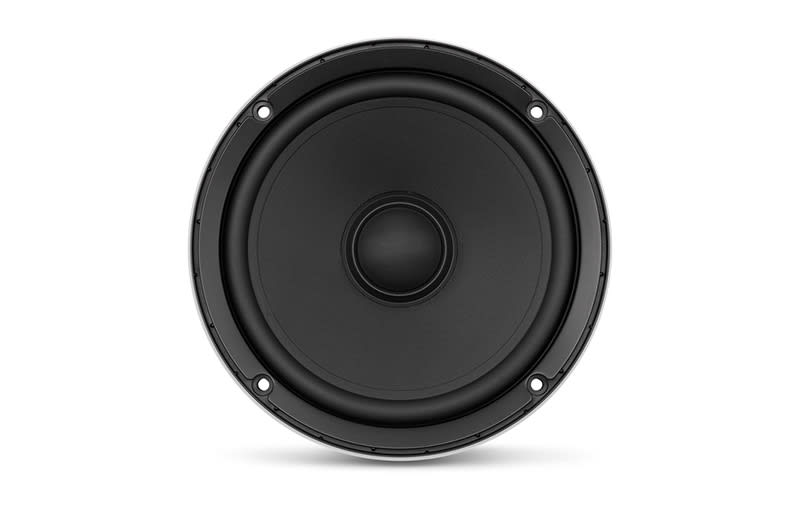

DMA-OPTIMIZED WOOFERS
Proprietary motor, suspension and cone modeling systems are employed, resulting in reduced distortion, improved transient performance and stellar sound quality. The woofer’s center cap is designed to optimize its high-frequency response for seamless tweeter transition.

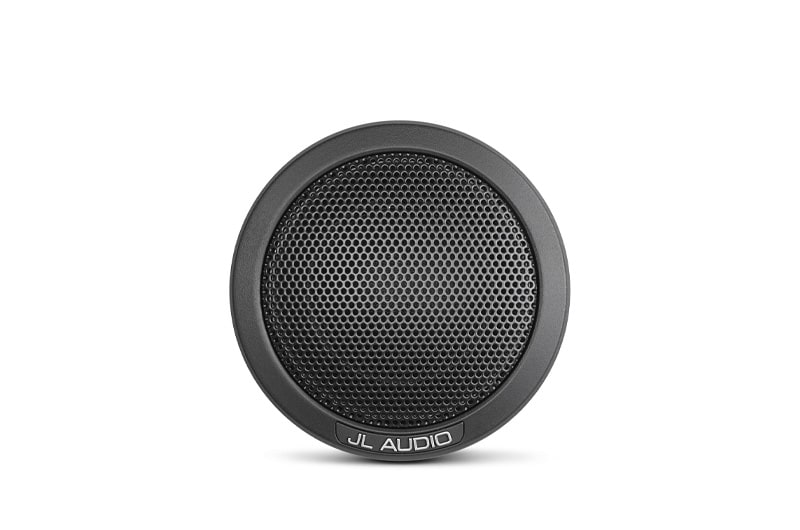

SILK DOME TWEETERS
An edge-driven pure silk dome tweeter design, when paired with the C6 woofer, produces sparkling detail with excellent off-axis response and damping for balanced coverage in your listening environment. An automatic, solid-state tweeter protection circuit minimizes the possibility of tweeter failure.

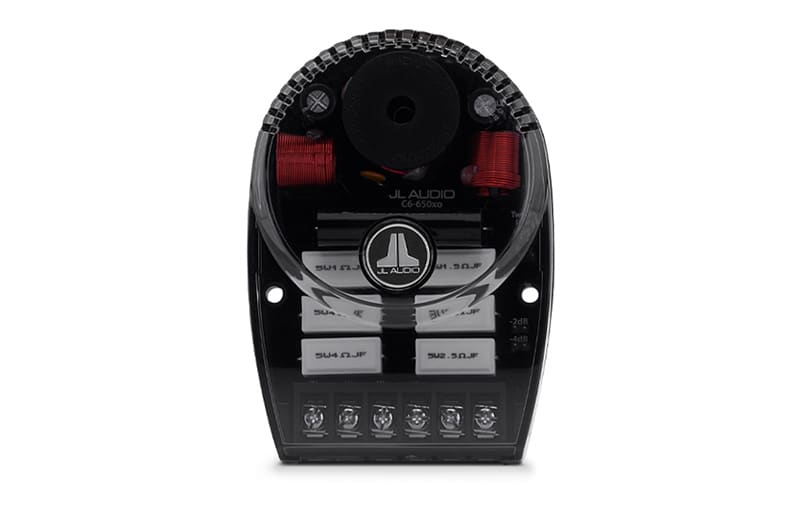

PASSIVE CROSSOVER NETWORKS
Included with each C6 component system, these premium filter networks offer 4 levels of tweeter adjustment. The three-way component system includes an additional 4 levels of midrange adjustment. All incorporate polyester film and electrolytic capacitors as well as low-loss air-core inductors — all accessible beneath a protective polycarbonate cover.

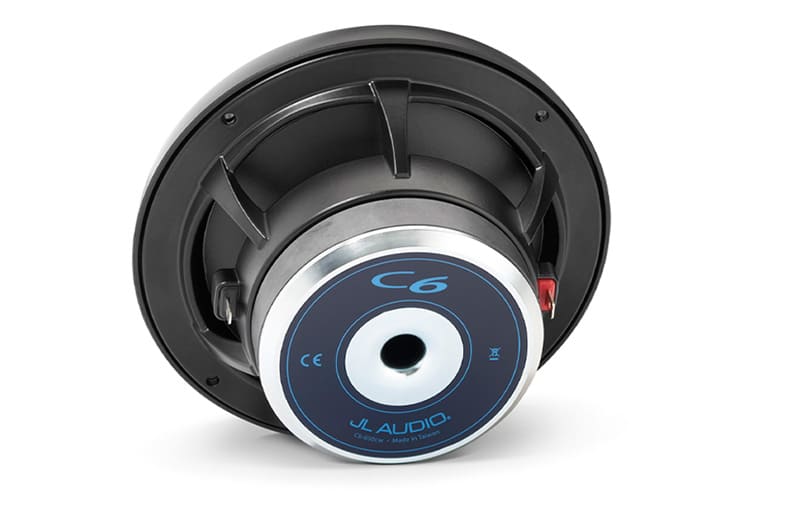

ADVANCED FRAME DESIGN
Benefiting from years of woofer design experience, the robust JL Audio 6.5-inch C6 component speakers feature purpose-engineered cast-alloy frames outfitted with our Elevated Frame Cooling technology.
POWERFULLY ADAPTABLE
On a wide range of car audio applications, the C6 speaker system delivers superb sound when powered by an amplifier in the 25- to 150-watt range. The woofer’s oversized voice coil offers extended power handling capability while minimizing thermal compression and distortion at higher volume levels.

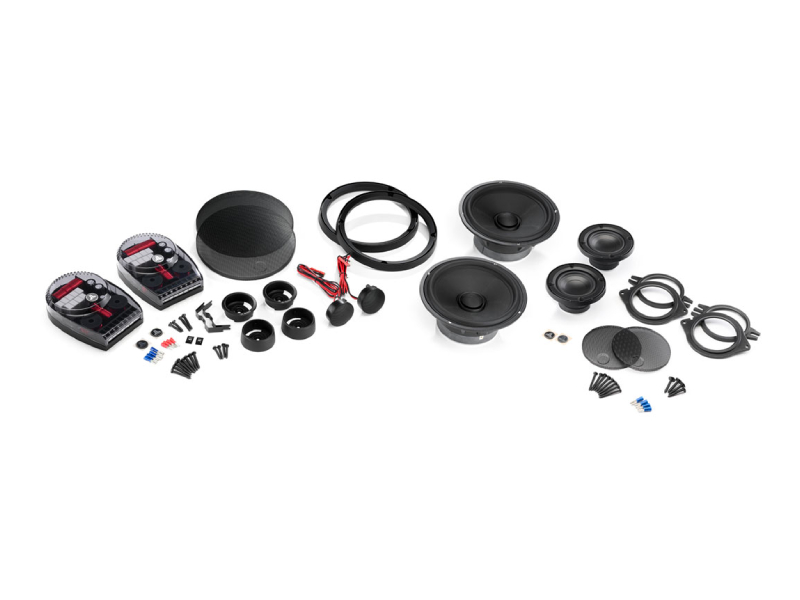

In the Box
- Two woofers
- Two tweeters
- Two crossovers
- Eight speed clips
- Two 0.250" female crimpable connectors
- Two 0.185" female crimpable connectors
- Two 0.185" male crimpable connectors
- Two 0.110" male crimpable connectors
- Eight 1-1/4" mounting screws
- Four 1" pan head screws
- Two 1" flat head screws
- Two flush mount tweeter housings
- Two surface mount tweeter housings
- Two metal spring clips (for flush mounting)
- Two M4x30 mm machine screws
- Two grille frames, grilles and JL Audio logo badges

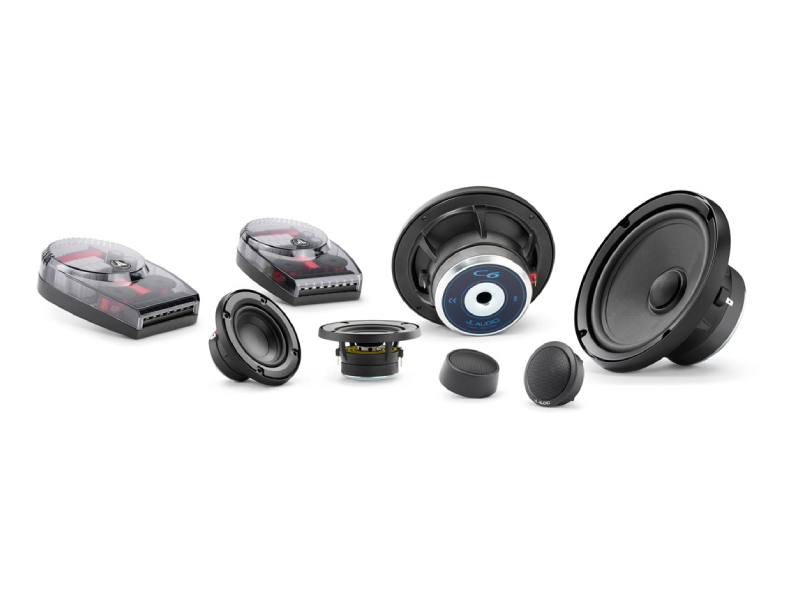

C6-653 also includes:
- 2 midranges
- Two 0.185" female crimpable connectors
- Two 0.110" female crimpable connectors
- Eight 1-1/4" mounting screws
- Two grille frames, grilles and JL Audio logo badges
- Four OEM adapter rings
Component Tweeters (C6-100ct) include:
- One tweeter
- One 15 microfarad capacitor
- One 0.185" male crimpable connectors
- One 0.110" male crimpable connectors
- One 1" flat head screw
- One flush mount tweeter housing
- One surface mount tweeter housing
- One metal spring clip (for flush mounting)
- One M4x30 mm machine screw
Component Drivers (C6-275cm and C6-650cw) include:
- One midrange or woofer
- One 0.185" female crimpable connector
- One 0.110" female crimpable connector
- Four 1-1/4" mounting screws
- One grille frame, grille and JL Audio logo badge
C6-275cm also includes:
- Two OEM adapter rings
| General | |
|---|---|
| Warranty | 1 yea |
| Sizes | 6.5" |
| Continuous power handling (RMS) | 100 W |
| Sensitivity (SPL @ 1 W/1 m) | 2.75": 83.50 dB 6.5": 87.37 dB |
| Sensitivity (SPL @ 1 W/0.5 m) | 1": 96 dB |
| Sensitivity (SPL @ 2.83 V/1 m) | 2.75": 86.50 dB 6.5": 90.33 dB |
| Frequency response (+/- 3 dB) | 53 Hz-21 KHz |
| Nominal impedance | 4 Ω |
| Recommended amplifier power (RMS) | 25-150 W/Channel |
| Voice coil diameter | 2.75": 0.8" (20.5 mm) 6.5": 1.27" (32 mm) |
| Cone material | Vacuum-formed, mineral-filled polypropylene |
| Tweeter type | Silk Dome |
| Tweeter size | 1" (25 mm) |
| Grille(s) included | Yes |
| Networking & Connections | |
| Speaker connections | Spade connectors |
| Mounting Dimensions | |
| Frame outer diameter | 2.75": 2.52" (77 mm) 6.5": 6.5" (165 mm) |
| Mounting depth clearance | 2.75": 1.42" (36 mm) 6.5": 2.60" (66 mm) |
| Frontal grille protrusion | 2.75": 0.47" (12 mm) 6.5": 1" (25 mm) |
| Mounting hole | 2.75": 2.52" (64 mm) 6.5": 5.46" (139 mm) |
| Grille tray outer diameter | 2.75": 3.58" (91 mm) 6.5": 6.76" (172 mm) |
| Bolt hole circle | 2.75": 3.03" (77 mm) 6.5": 6.12" (156 mm) |
| Motor outer diameter | 2.75": 2.75" (69 mm) 6.5": 3.54" (90 mm) |
| Parameters | |
| Free Air Resonance (FS) | 1": 1500 Hz 2.75": 185 Hz 6.5": 52.8Hz |
| Electrical “Q†(Qes) | 2.75": 0.769 6.5": 0.647 |
| Mechanical “Q†(Qms) | 2.75": 7.848 6.5": 5.076 |
| Total “Q†(Qts) | 2.75": 0.700 6.5": 0.574 |
| Equivalent Compliance (Vas) | 2.75": 0.0353 cu ft (0.125 L) 6.5": 0.532 cu ft (15.069 L) |
| One-way linear excursion (Xmax; specs are derived via one-way voice coil overhang method with no correction factors applied) | 2.75": 0.059" (1.50 mm) 6.5": 0.148" (3.75 mm) |
| Reference Efficiency (NO) | 2.75": 0.1414% 6.5": 0.344% |
| Moving mass (Mms) | 2.75": 4.65 g 6.5": 16.42 g |
| Mechanical compliance (Cms) | 2.75": 0.00031 m/N 6.5": 0.000581 m/N |
| Magnetic strength (BL) | 2.75": 5.03 N/A 6.5": 5.186 N/A |
| Effective piston area (SD) | 2.75": 3.66 in² (0.00236 m²) 6.5": 21.4 in² (0.013807 m²) |
| DC resistance (RE) | 1"/6.5": 3.20 Ω 2.75": 3.58 Ω |
| Tweeter Specifications | |
| Flush mount fixture diameter | 2.13" (54 mm) |
| Surface mount fixture diameter | 2.11" (54 mm) |
| Flush mount mounting hole diameter | 1.85" (47 mm) |
| Flush mount mounting depth | 1.85" (47 mm) |
| Flush mount tweeter frontal protrusion | 0.30" (8 mm) |
| Surface mount tweeter frontal protrusion | 1.04" (26 mm) |
