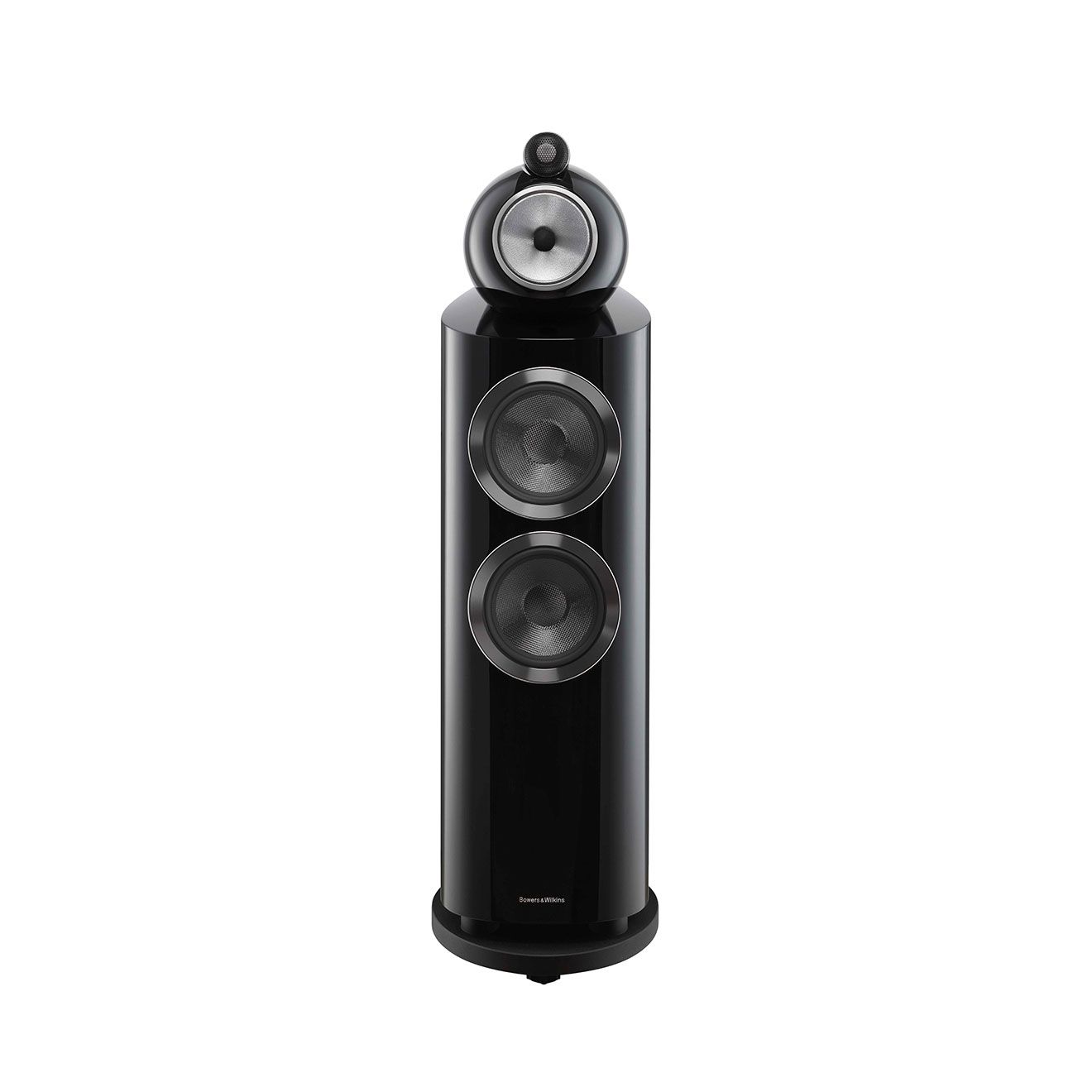

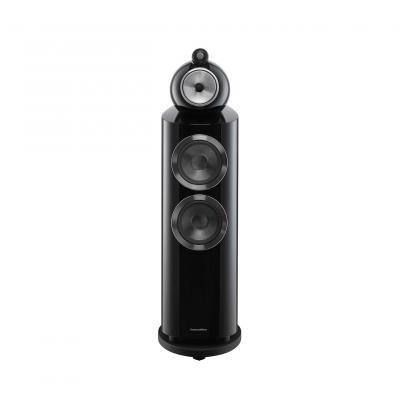

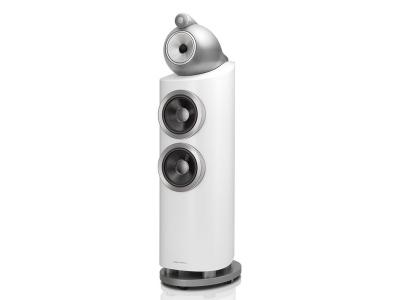

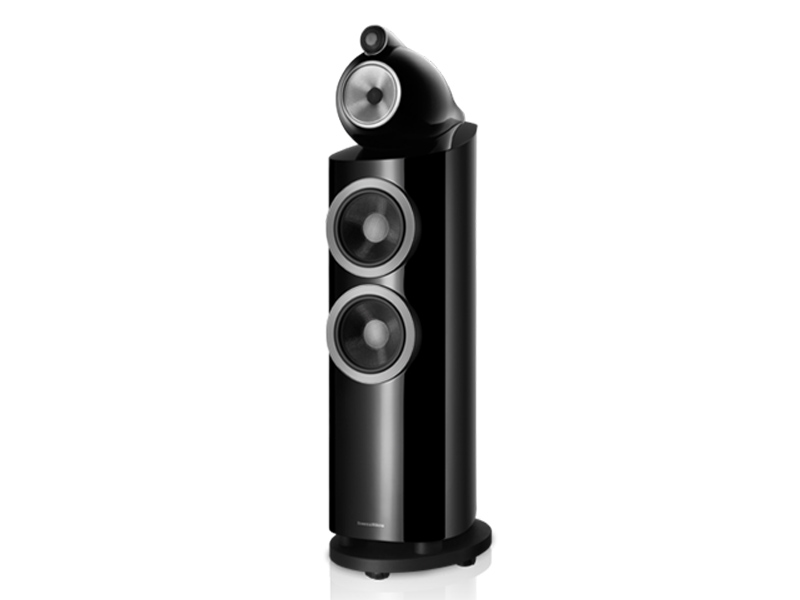

The 803 D3 is a completely new speaker. The most compact headed model Bowers & Wilkins has ever made, it boasts many of the qualities of its larger siblings, but in a room-friendly size.
Perfectly formed

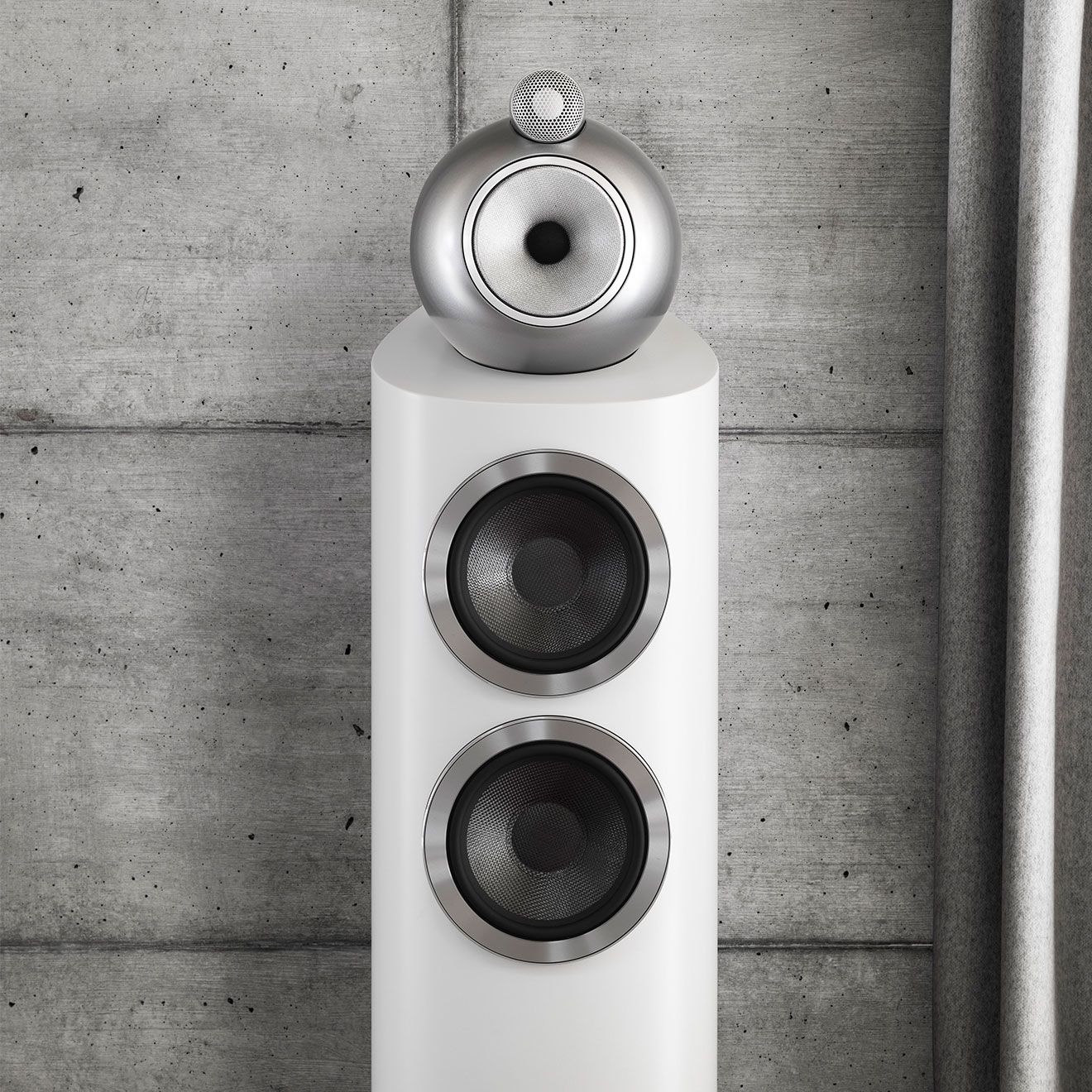

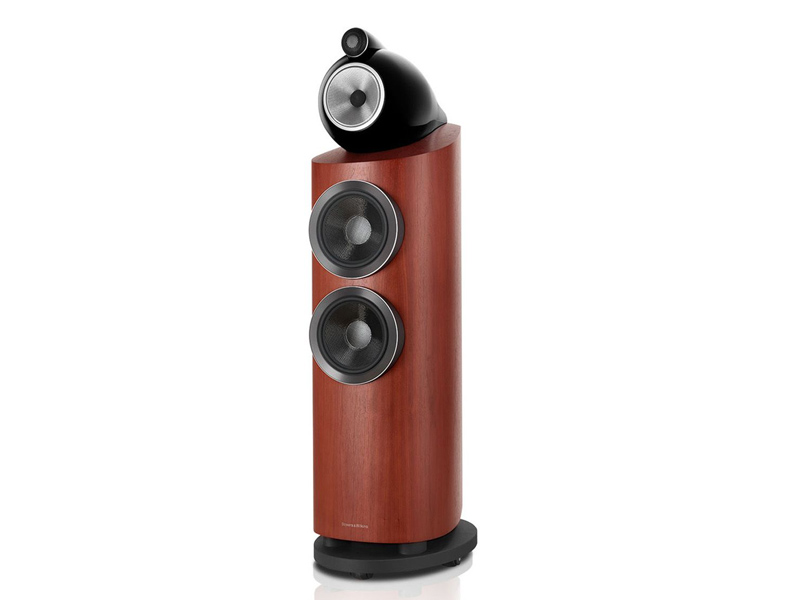

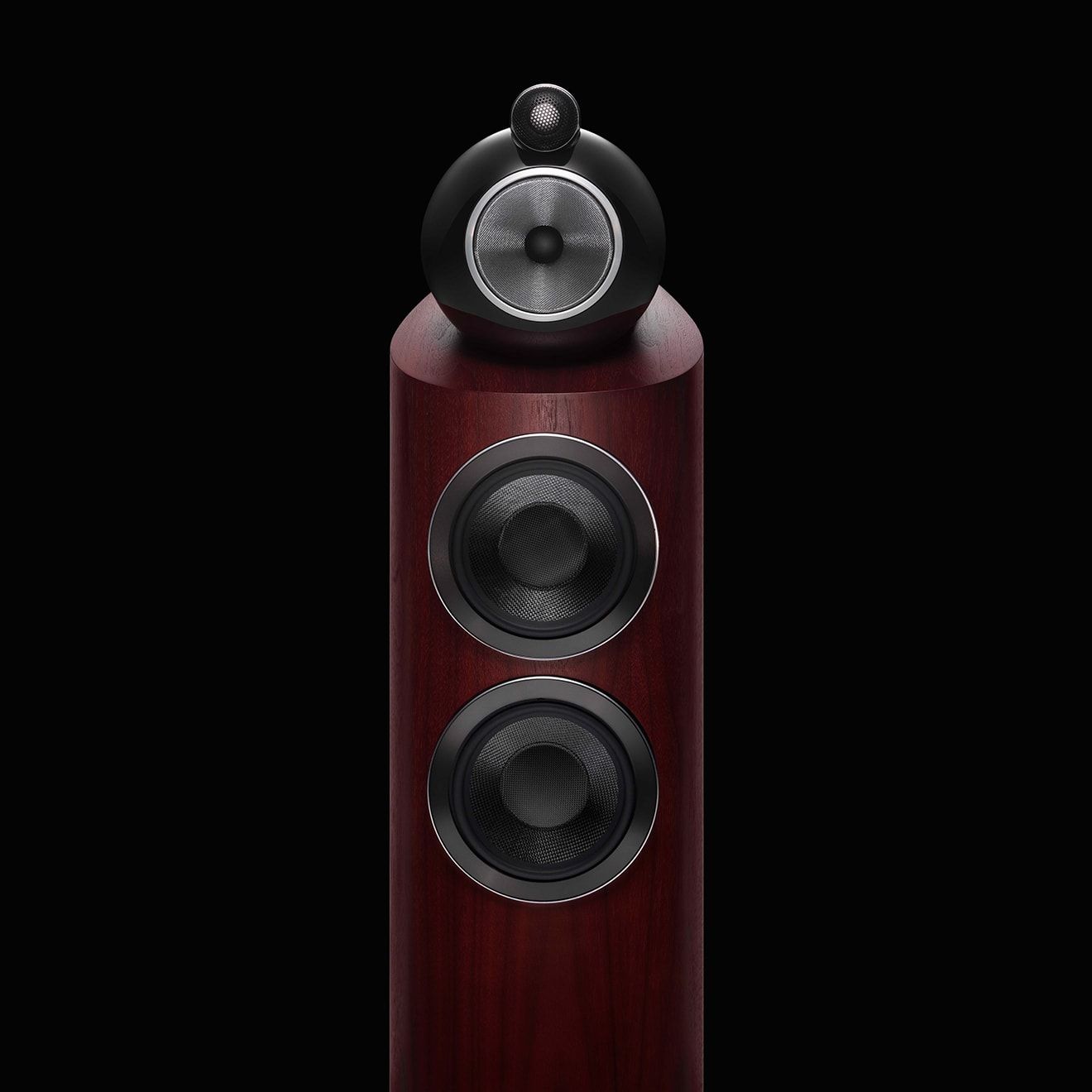

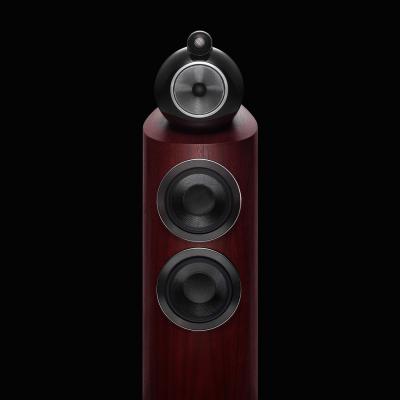

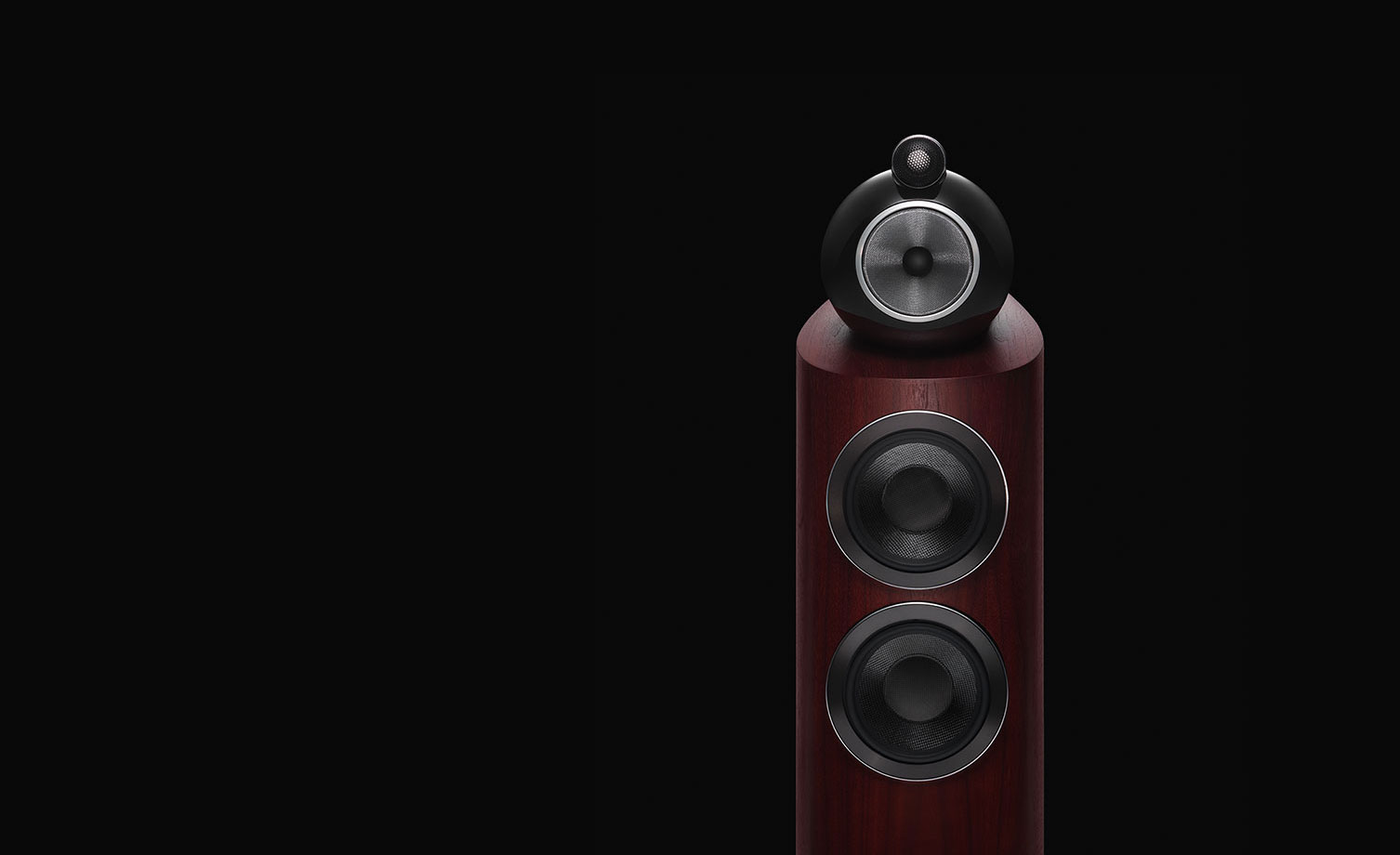

The 803 D3 is an elegant floorstander, delivering exceptionally natural and precise sound thanks to a combination of Diamond Dome tweeter, Continuum cone, Aerofoil bass and a more compact midrange head.

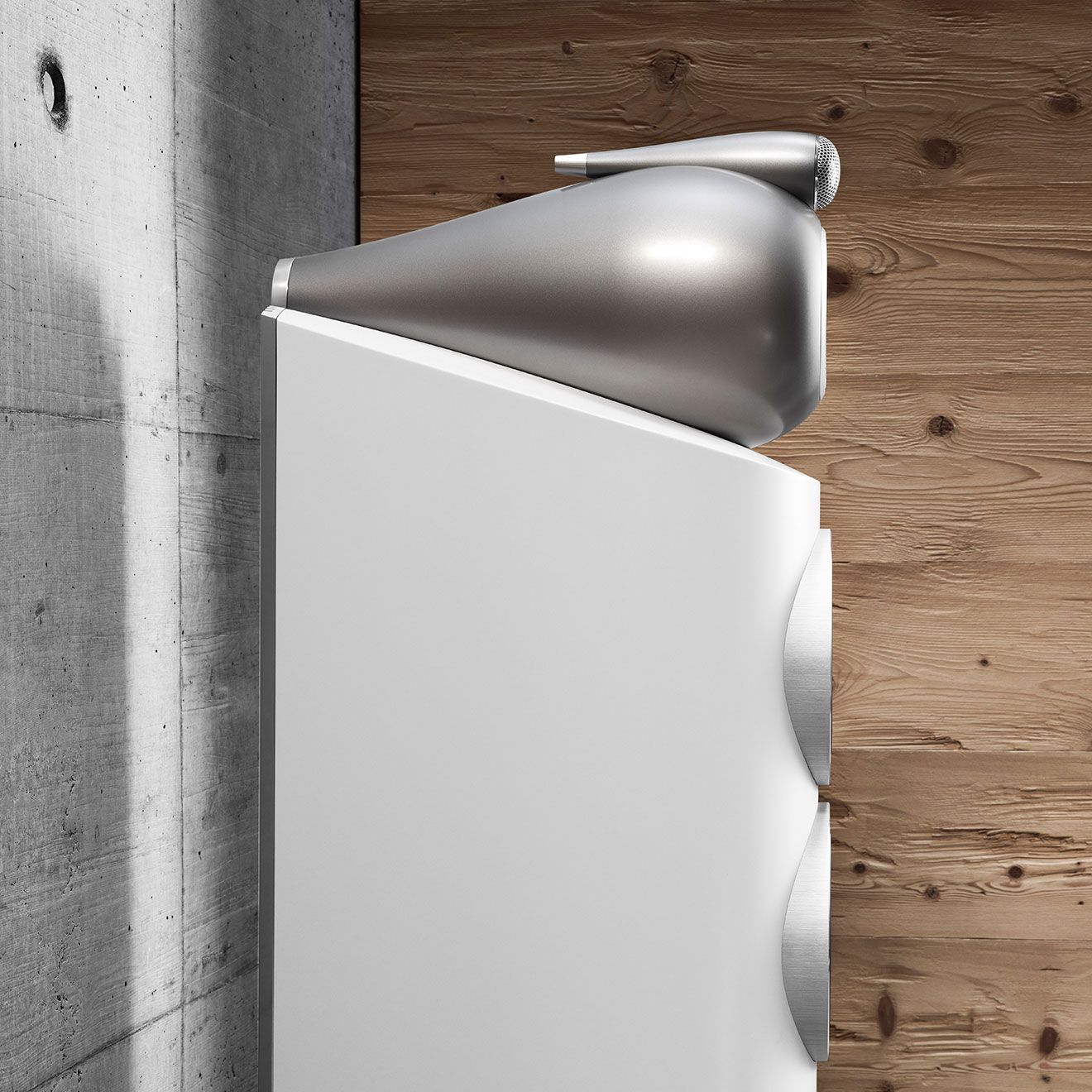

Reverse wrap cabinet
Relocating the curve of the cabinet to the front has a double benefit – it allows stronger joins at the back, while also helping sound dispersion across the curve of the baffle.
Continuum cone
The Continuum cone delivers pristine midrange performance by effectively negating the break-up behaviour that can adversely effect this all-important part of the spectrum.

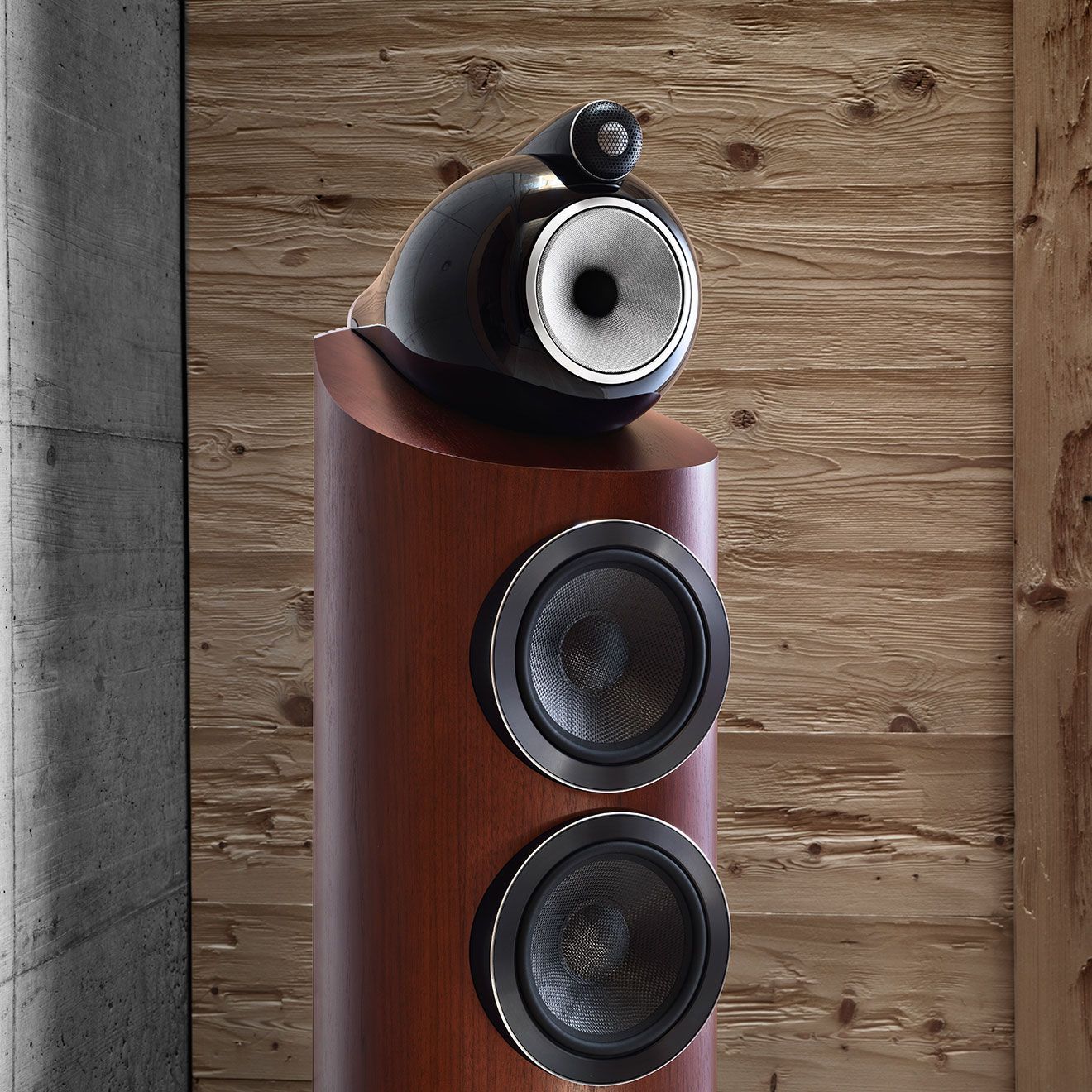

Turbine Head
The Turbine head is the ideal shape for sound dispersion, while its internally ribbed, aluminium construction ensures that it is acoustically inert.
Diamond Dome Tweeters
Incredibly light, yet unbelievably rigid, Diamond is the ultimate tweeter material. Delivering the most revealing, natural treble you will ever hear.
Specifications | |
---|---|
Technical features | Diamond Tweeter ,Anti-resonance plug,Continuum Cone FST ,Turbine head ,Aerofoil cone bass units,Flowport,Optimised Matrix ,Solid body tweeter,Tweeter on top |
Description | 3-way vented-box system |
Drive units | 1x ø25mm (1 in) diamond dome high-frequency,1x ø130mm (5 in) Continuum cone FST™ midrange,2x ø180mm (7 in) Aerofoil cone bass units, |
Frequency range | 16Hz to 35kHz |
Frequency response | 19Hz to 28kHz (+/-3dB from reference axis) |
Sensitivity | 90dB (On axis at 2.83Vrms) |
Harmonic distortion | 2nd and 3rd harmonics (90dB, 1m on axis),<1 % 70Hz - 20kHz,<0.3% 100Hz - 20kHz |
Nominal impedance (min) | 8Ω (minimum 3.0 Ω) |
Recommended amplifier power | 50W - 500W into 8Ω on unclipped programme |
Max. recommended cable impedance | 0.1Ω |
Height: | 1160mm |
Width: | 334mm |
Depth: | 498mm |
Net weight | 65.5kg (144lb) |
Cabinet | Rosenut,Gloss black |

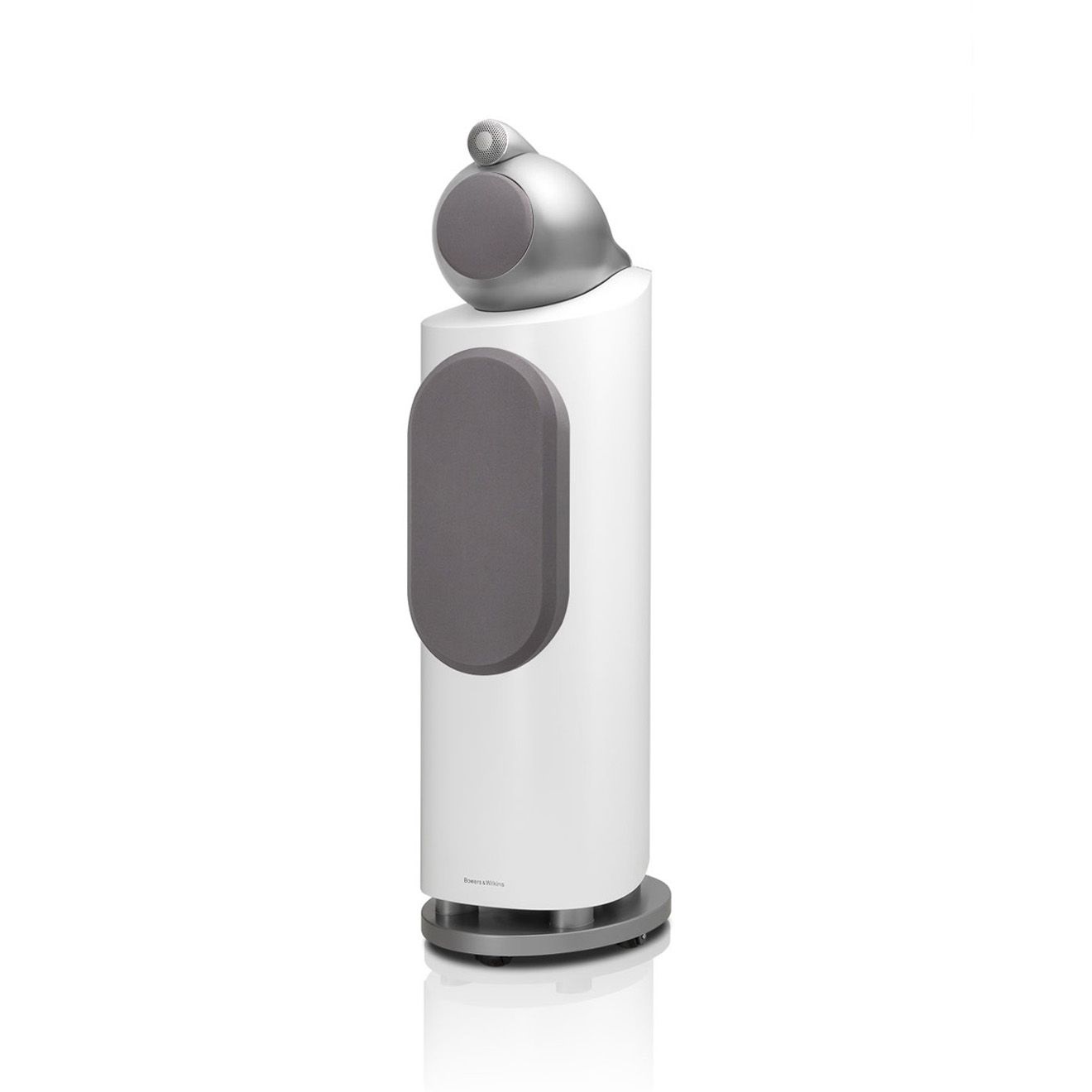

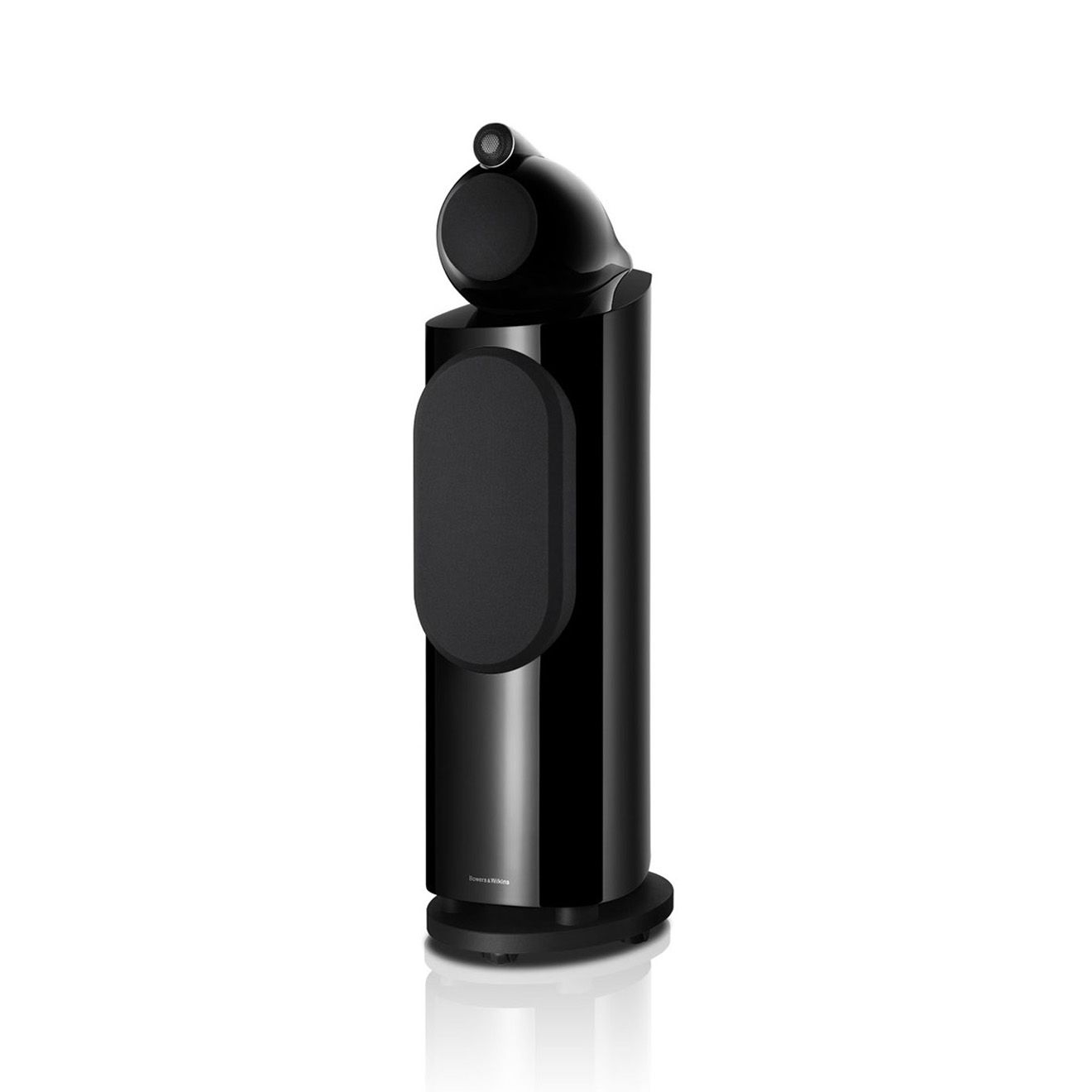

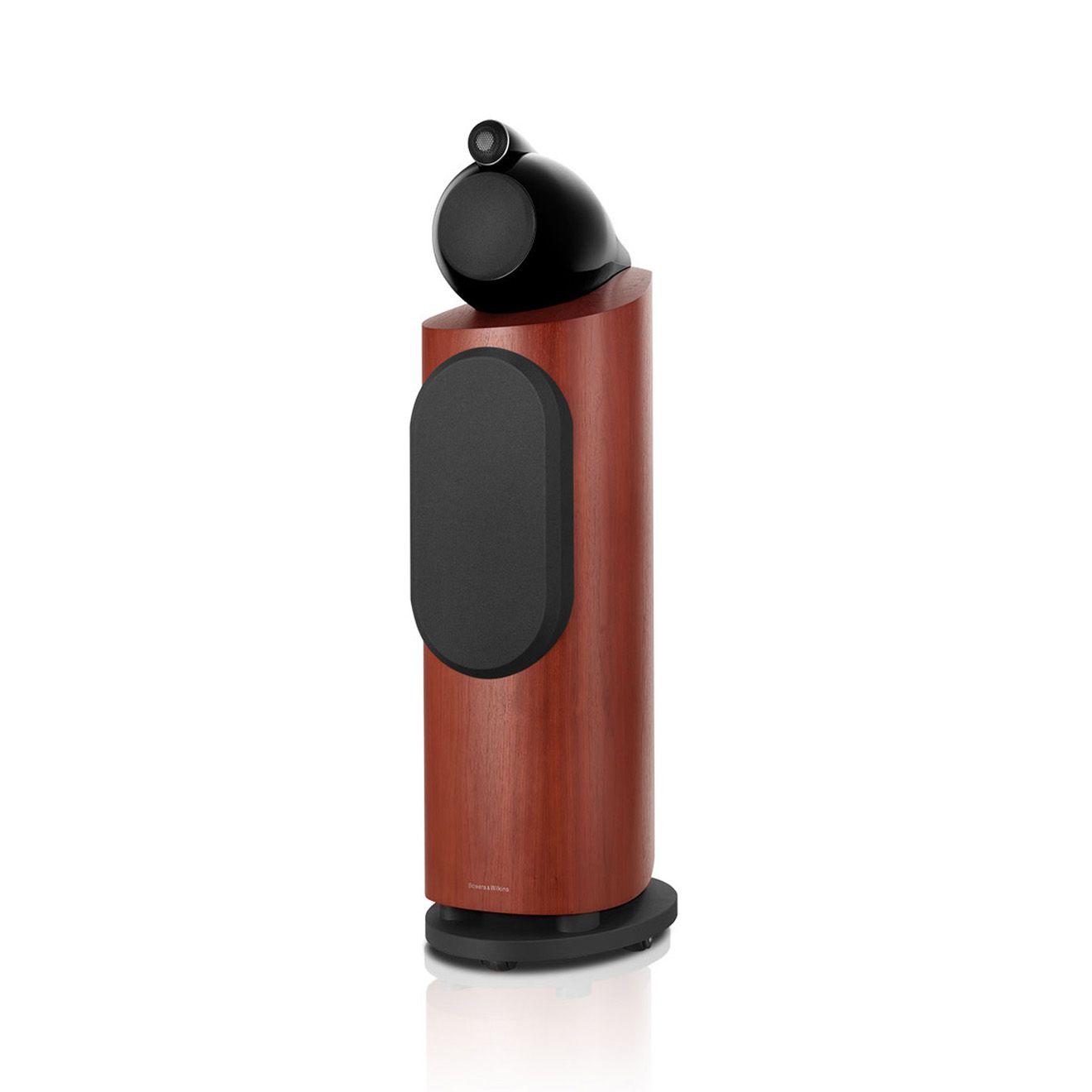

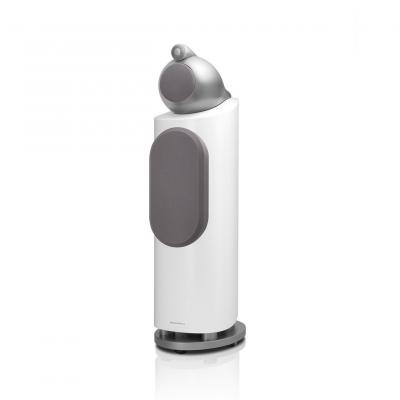

Grille | Black |
