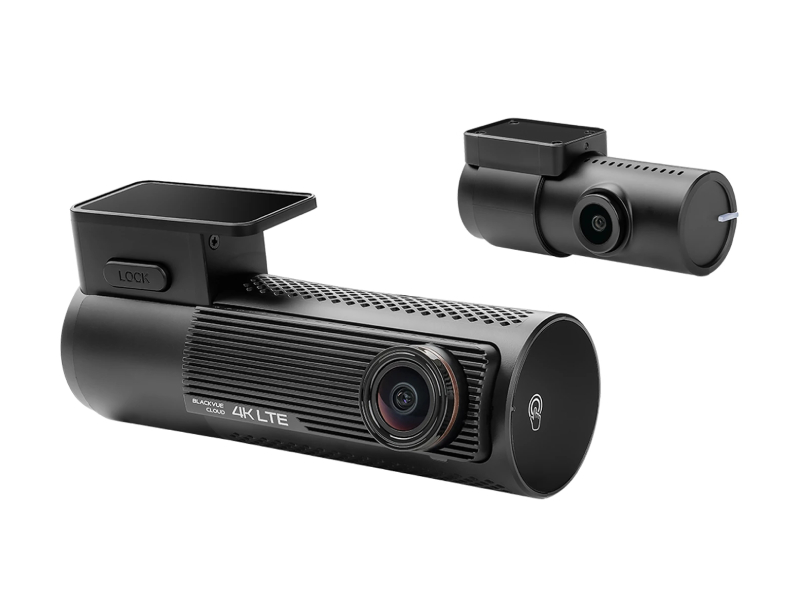

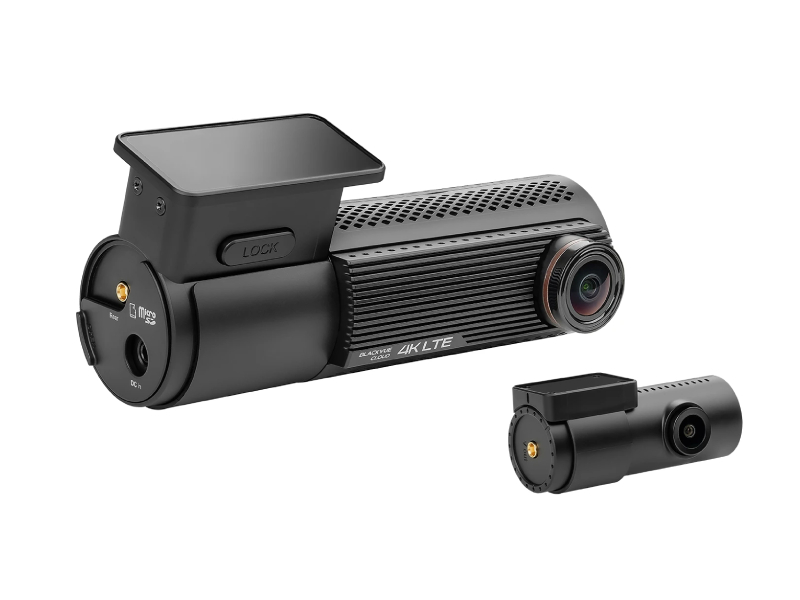

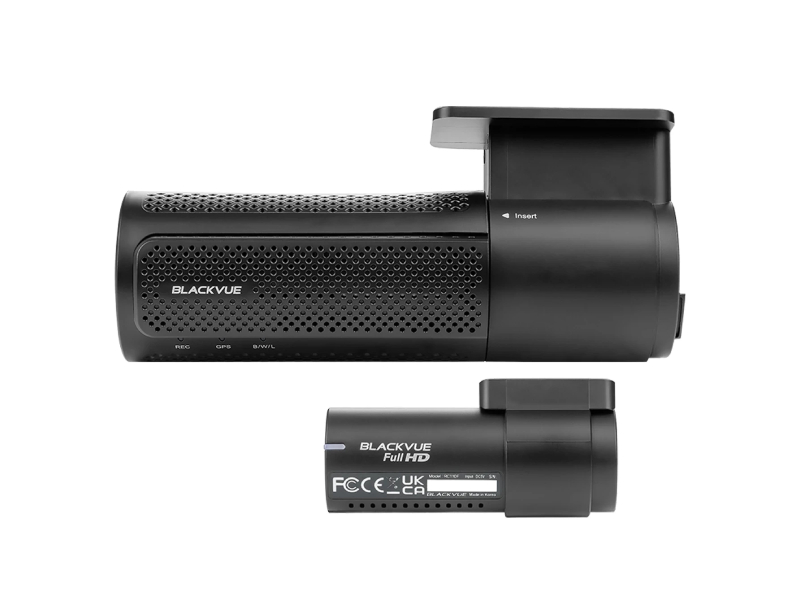

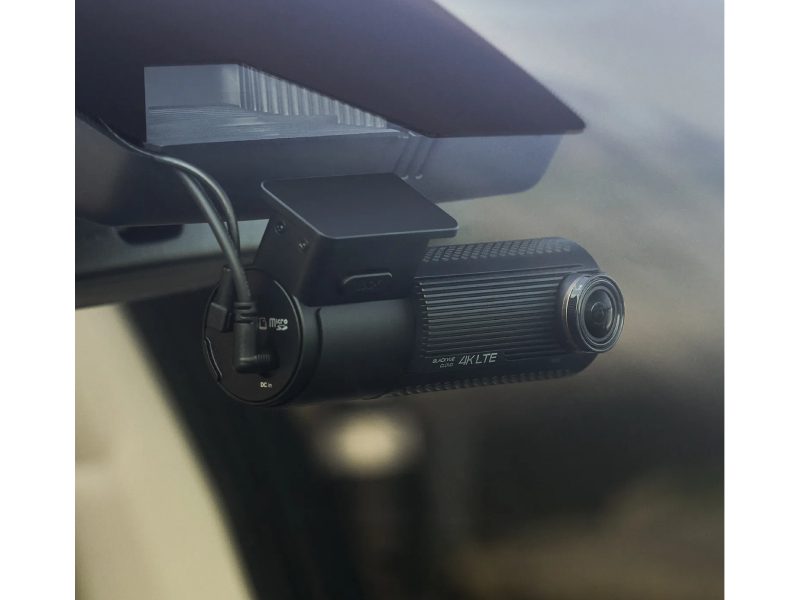

Blackuve DR970X-2CH LTE Plus II 64GB Dash Camera - DR970X-2CHLTE-PLUSII-64
- BlackVue DR970X-2CH LTE Plus II (NORTH AMERICA VERSION)
- 4G LTE band support: B2, B4, B12
- Carrier support: US: T-Mobile; Canada: Rogers, Telus
- SIM Card Not Included.

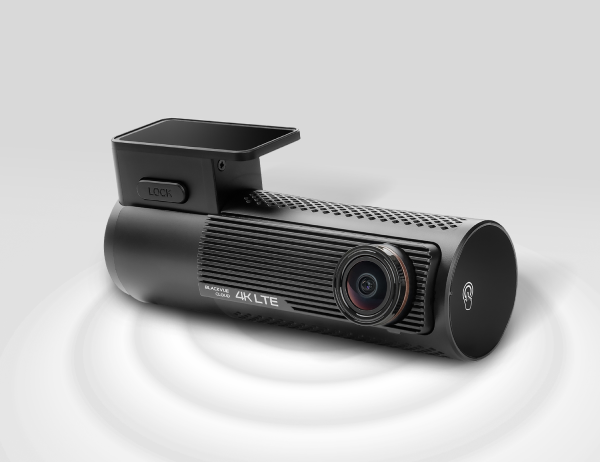

Outstanding 4K HDR Clarity, Stay Connected
Powered by the Best Dash Cam Sensor Fine-tuned by BLACKVUE
STARVIS 2 Front
STARVIS Rear
Cloud Connectivity
Built-in LTE Connectivity
CLOUD CONNECTIVITY
FREE STORAGE
AMAZING FEATURES

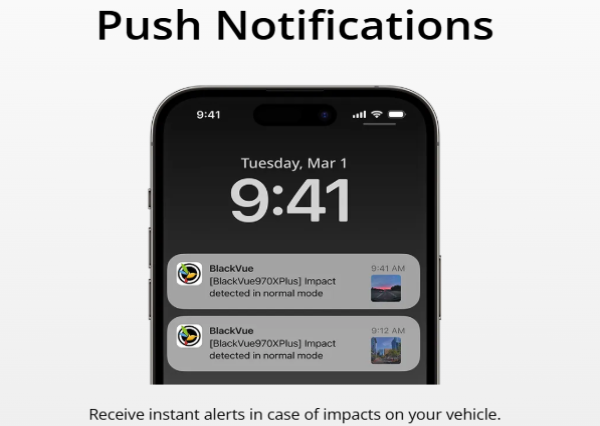

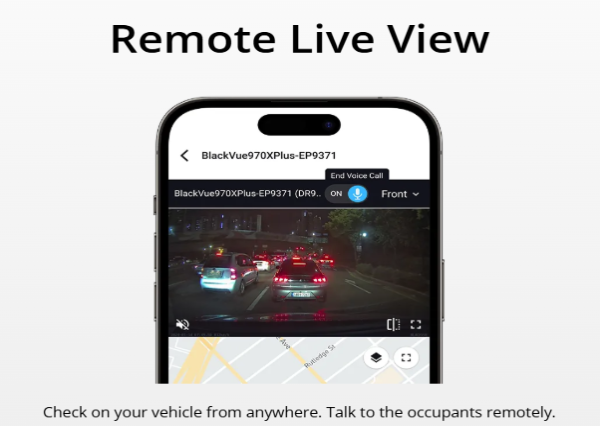

Remote Live View, Push Notifications, Live Event Upload
BlackVue Cloud offers peace of mind with unique features.
Two ways to connect: use the BlackVue LTE Connectivity Module or any 3rd-party Wi-Fi hotspot to connect your BlackVue to the Cloud.
5GB free storage: get an additional 4GB Cloud storage when you connect your dash cam to the Cloud.
EASY INSTALLATION
QUICK SETUP
SIMPLE OPERATION

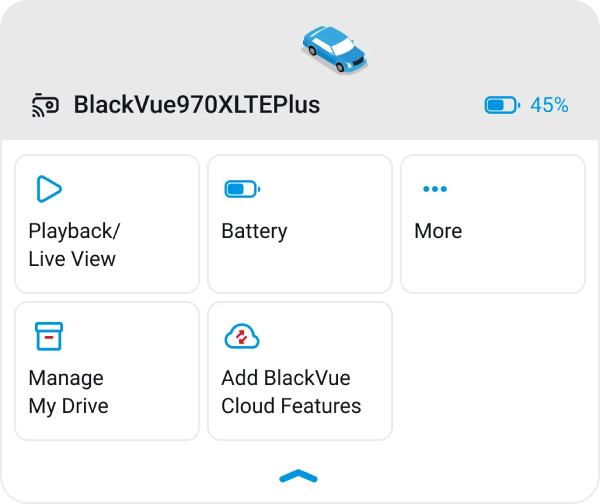

All Features At Your Fingertips
The BlackVue App is designed with simplicity and ease of use in mind. No convoluted menus. Access all the key features from the main screen.

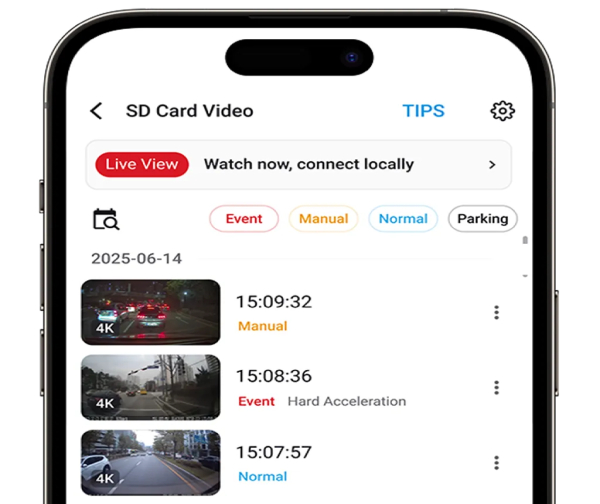

Intuitive Interface: Need to check and download a video to your phone? No problem. Just open the BlackVue App and tap the Playback/Live View button, then browse your videos.
Fast Wi-Fi: lets you download a max quality setting video clip in about 30 seconds (5GHz connection).
SMART EVENT RECORDING
PRE-EVENT RECORDING
Always Get the Full Picture!
With buffered recording, Event clips always include the action that led to the triggering event.

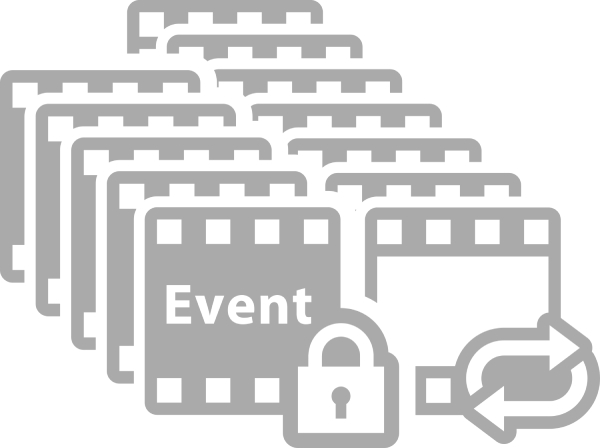

EVENT FILE PROTECTION
With buffered recording, Event clips always include the action that led to the triggering event.
Like every dash cam, DR970X Plus II constantly records in a loop. When the microSD card storage is full, older clips are automatically overwritten by newer footage.
With its Event File Protection function, DR970X Plus II ensures that critical footage is not overwritten by normal driving clips.
Protects up to 50 critical event recordings from overwriting.
PARKING MODE PROTECTION
BUFFERED MODE PROTECTION
The Best Daily Protection with Pre-Event Recording

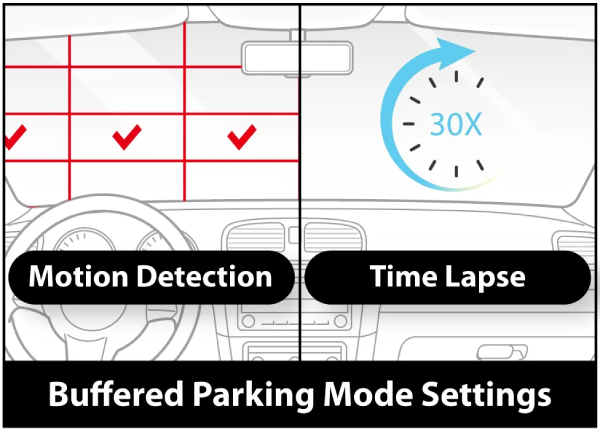

2 standard Parking Mode settings.
- Motion Detection: records a 1-minute buffered video whenever a motion is detected by the front or rear camera. Motion detection areas can be set manually in the app.
- Time Lapse: records constantly at 1 frame per second so each 1 minute video covers 30 minutes of real time. Recommended if you routinely park in busy areas.

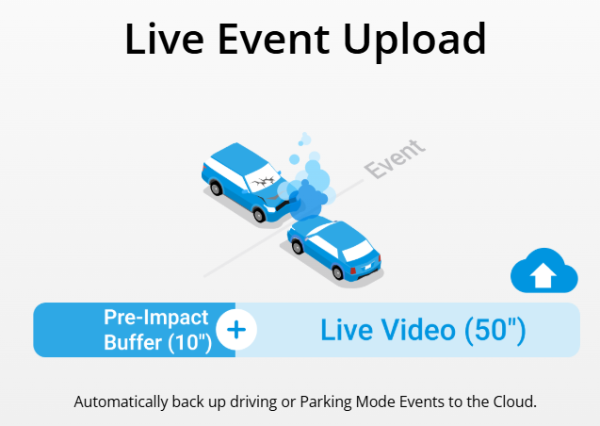

Pre-impact recording: in both modes, the dash cam also records buffered Event clips in case of impact. That means 1-minute clips that start 10 seconds before the detected impact.
Native Parking Mode
Let your BLACKVUE watch over your vehicle 24/7
What’s Included
- Front Camera
- Rear Camera
- Hardwiring Power Cable
- USB-C Power Cable
- USB-C 12V Adapter
- Rear camera connection cable
- MicroSD Card
- Double-sided tape for the mounting brackets
- Pry tool / Trim Remover
- Cable clips (5 EA)
- Alcohol Pad
| PACKAGE INFO | |
|---|---|
| Weight | 0.975kg (2.15lbs) |
| Dimensions | 123(L) x 197(W) x 103(H) mm 4.8(L) x 7.8(W) x 4.1(H) inch |
| MEMORY CAPACITY | 64GB, 128GB, 256GB, 512GB, 1TB |
| Specifications | |
| Model Name | DR970X-2CH LTE Plus II (NA) |
| Channel | 2CH |
| Highlights | Built-in 4G LTE, Sony STARVIS2 image sensors |
| Product Dimensions | Front: Black / 137.6(L) x 60.3(W) x 43(H) mm / 175 g Rear: Black / 67.3(L) x 28(W) x 25(H) mm / 25 g |

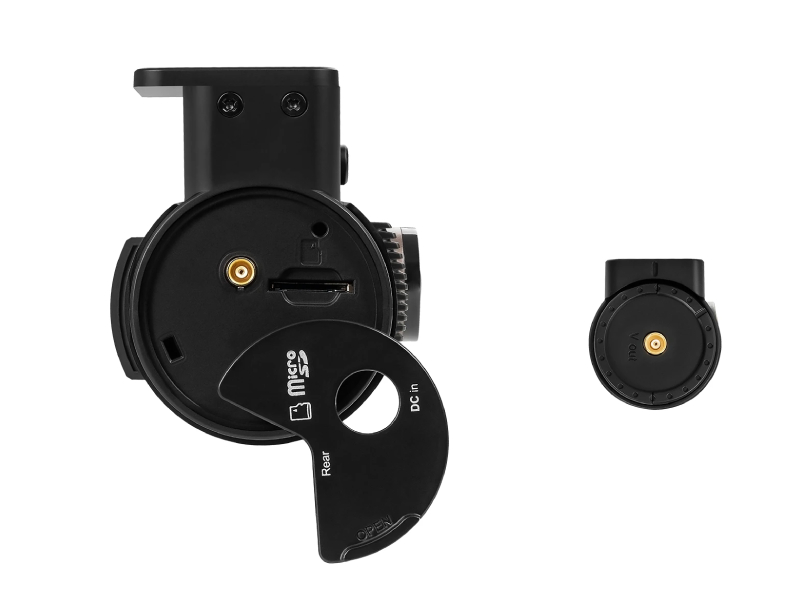

| Rear Camera Connection | Coaxial cable |
| Memory Support | microSD card up to 1TB |
| Recording Modes | Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected). * When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode. |
| Parking Mode | YES (hardwiring cable included) |
| Parking Mode Event Voice Notifications | YES |
| Imaging Sensor | Front: STARVIS2 CMOS sensor (Approx. 8.4 M Pixel) Rear: STARVIS CMOS Sensor (Approx. 2.1 M Pixel) |
| Viewing Angle | Front: Diagonal 146°, Horizontal 125°, Vertical 68° Rear: Diagonal 131°, Horizontal 107°, Vertical 55° |
| Resolution Frame Rate | Front: 4K (3840 x 2160) @ 30 fps Rear: Full HD (1920×1080) @ 30 fps * Frame rate may vary during Wi-Fi streaming. |
| Video Codec | H.265 (HEVC)/H.264 (AVC) |
| Image Quality and Bitrate Front/Rear | Highest (Extreme): 60+10 Mbps Highest: 25+10 Mbps High: 12+8 Mbps Normal: 8+6 Mbps |
| Format Free | YES (Adaptive) |
| Event File Overwrite Protection | YES (up to 50) |
| SD Card Failure Alert | YES |
| Scheduled Reboot | YES |
| Video File Extension | MP4 |
| Wi-Fi | Built-in (802.11 a.b.g.n.ac) |
| Cloud Compatible | YES |
| GPS | Built-in (Dual Band: GPS, GLONASS) |
| Microphone | Built-in |
| Speaker | Built-in |
| Impact Sensor | 3-Axis Acceleration Sensor |

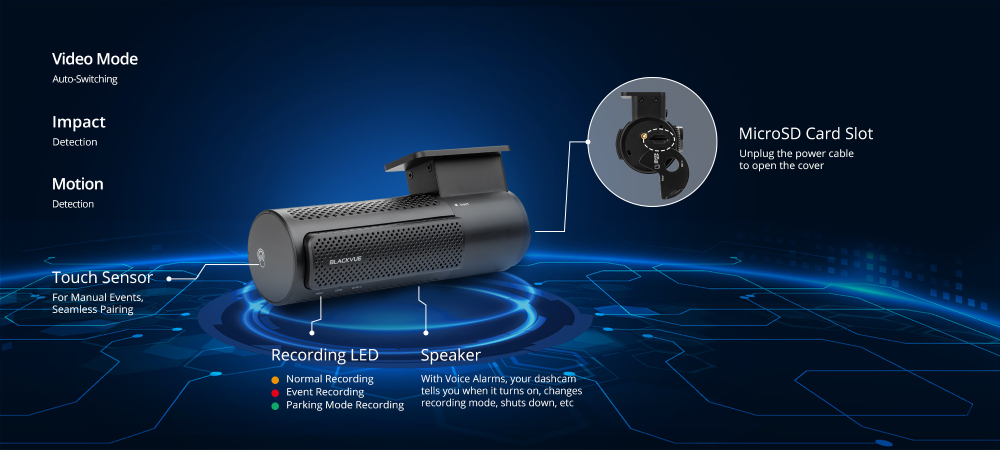

| LED Indicators | Front: Recording LED, GPS LED, B/W/L (Bluetooth/Wi-Fi/LTE) LED, Front Security LED Rear: Rear Security LED |
| Button | Touch Sensor: Pressing the touch sensor triggers manual recording depending on the firmware settings. |
| Operation Temperature | -20 °C − 70 °C (-4 °F − 158 °F) |
| Storage Temperature | -20 °C − 70 °C (-4 °F − 158 °F) |
| High Temp Cut Off | Approx. 70 °C (167 °F) |
| Backup Battery | Built-in supercapacitor |
| Input Power | DC 12V-24V (3 pole DC Plug (Ø3.5d x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC) |
| Power Consumption Hour | Normal Mode (GPS On/Cloud On) : Avg. 590mA/12V Normal Mode (GPS On/Cloud Off) : Avg. 530mA/12V Parking Mode (GPS Off/Cloud On) : Avg. 430mA/12V Parking Mode (GPS Off/Cloud Off) : Avg. 370mA/12V * Actual power consumption may vary depending on use conditions and environment. * Model DR970X-2CH LTE Plus should be used only in circuits that satisfy Limited Power Source. (Maximum power consumption is to be less than 100 VA or 8 A). |
| Certifications | Front: FCC, ISED, CE, UKCA, RCM, Telec, RoHS, WEEE, KC Rear: FCC, ISED, CE, UCKA, RCM, RoHS, WEEE, KC |
| Software | BlackVue Viewer * Windows 7 or higher, Mac Sierra OS X (10.12) or higher |
| Application | BlackVue Application * Android 8.0 or higher, iOS 13.0 or higher |
| Bluetooth | Built-in (V2.1+EDR/4.2) |
| LTE | Built-in SIM card reader (SIM not included) Built-in 4G LTE module compatible with Nano-SIM. Frequency Bands: B2, B4, B12 |
