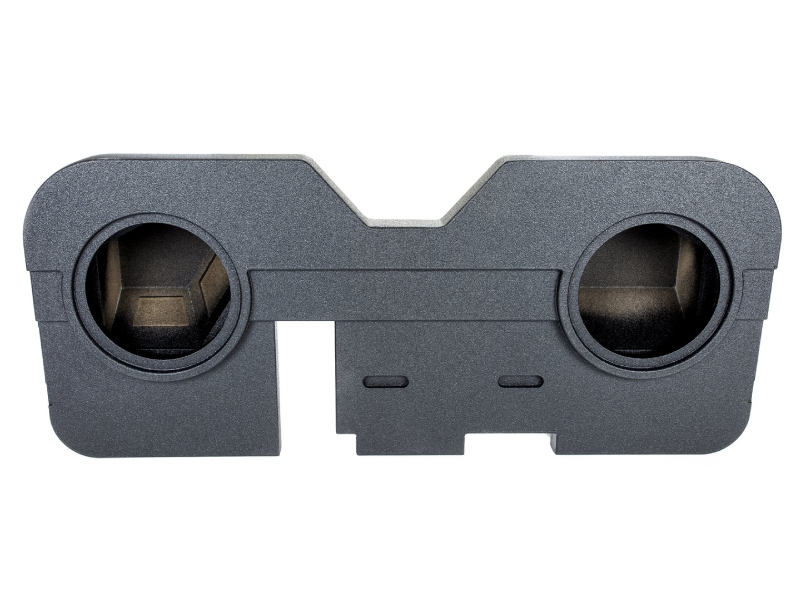

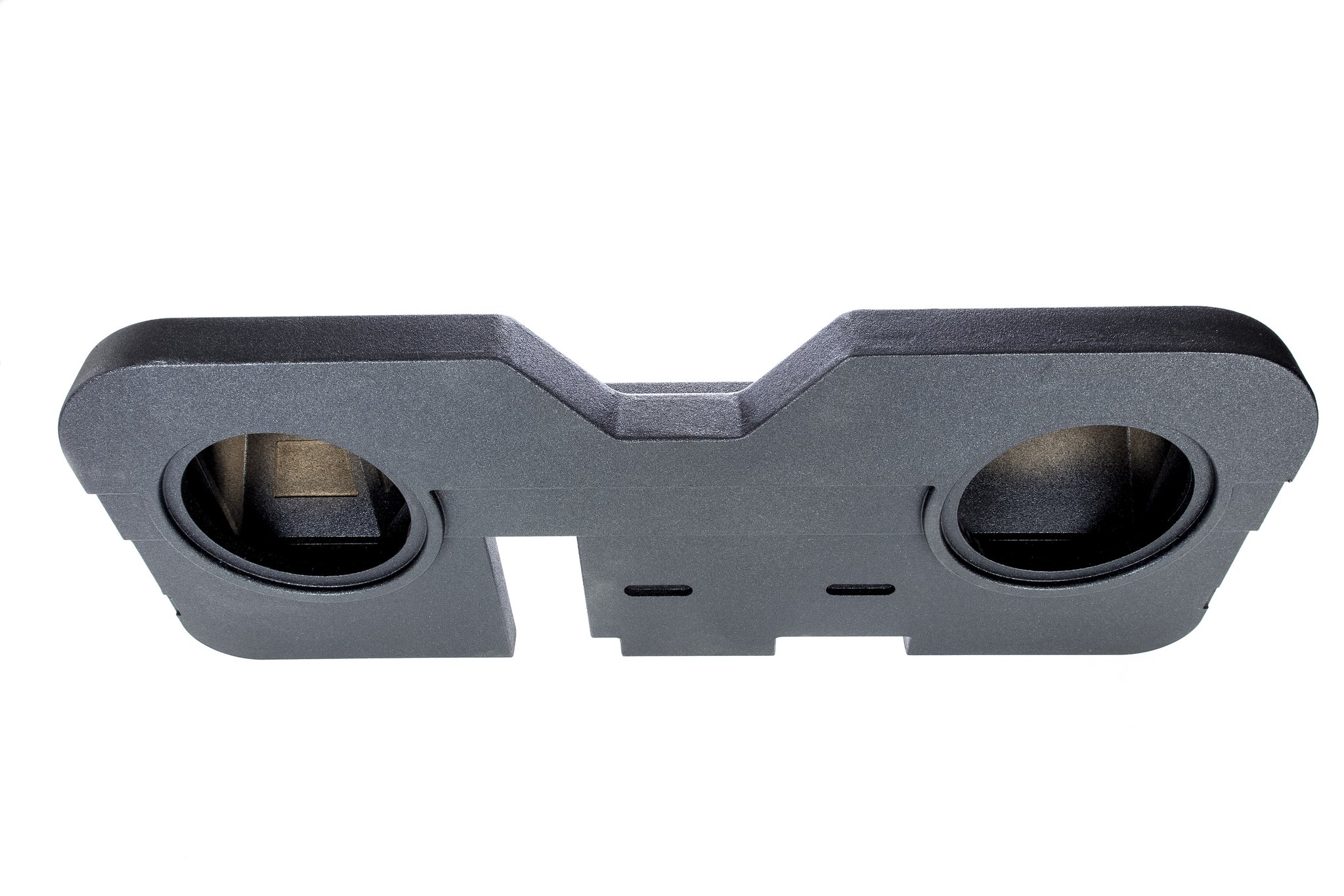

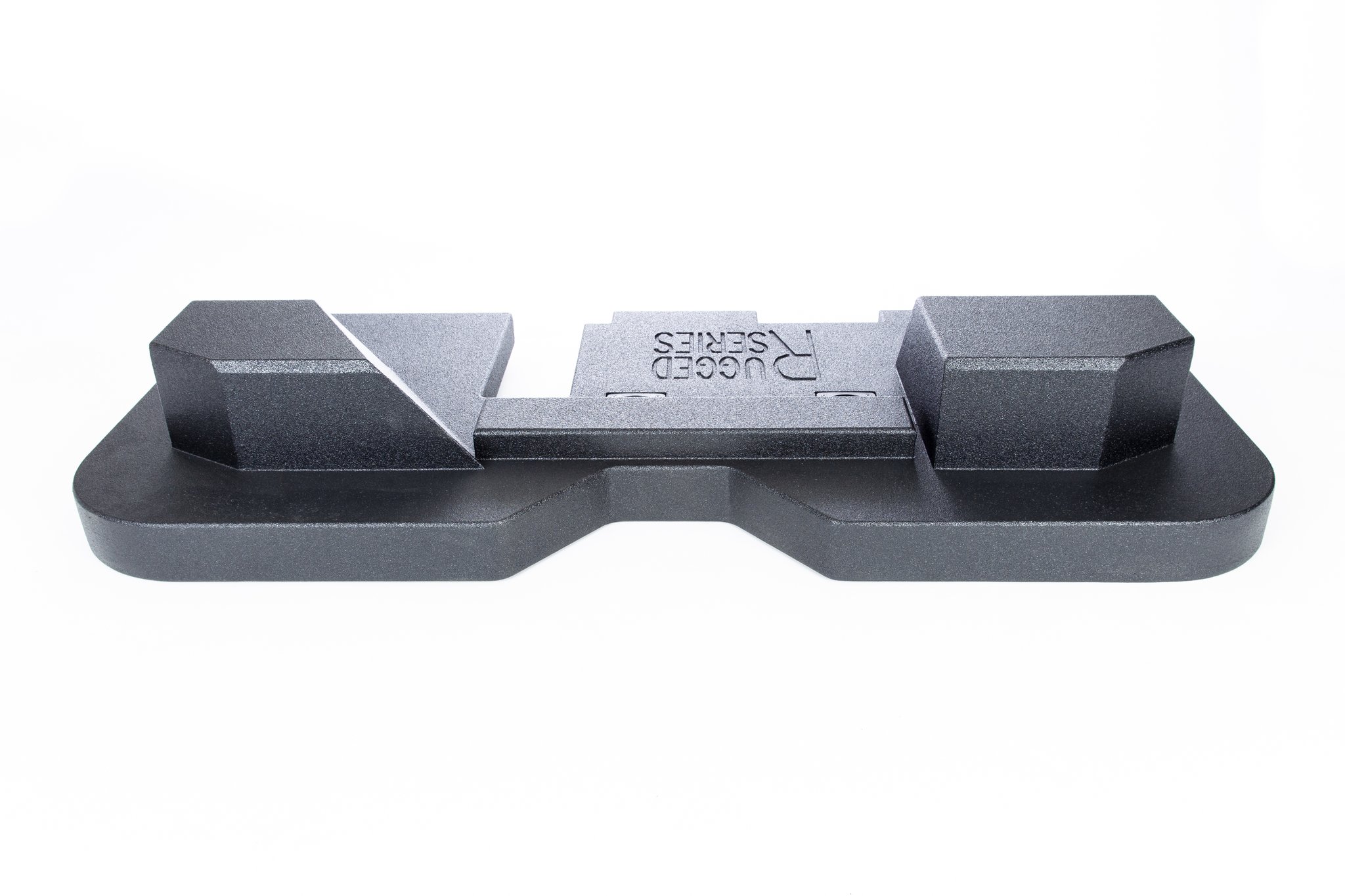

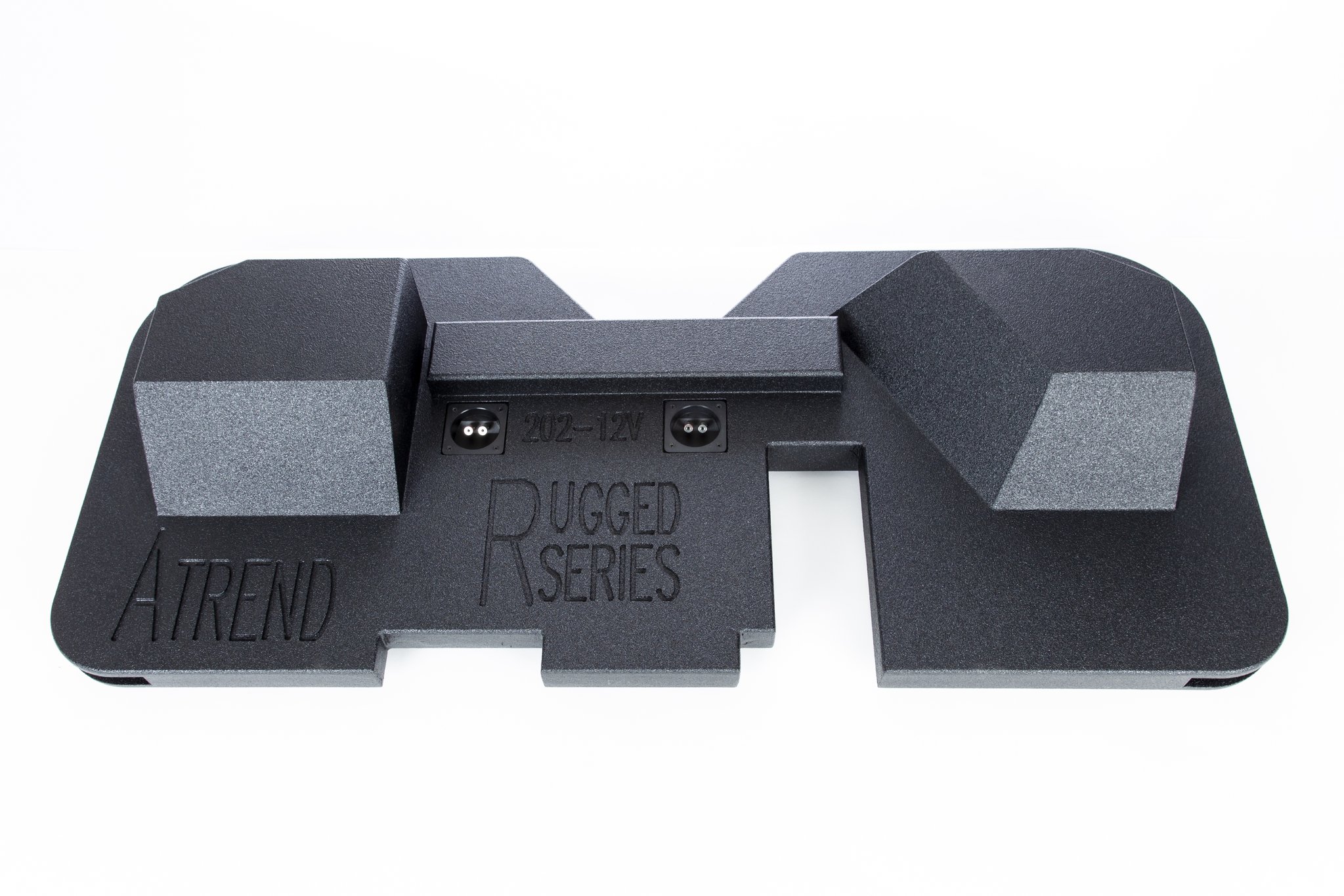

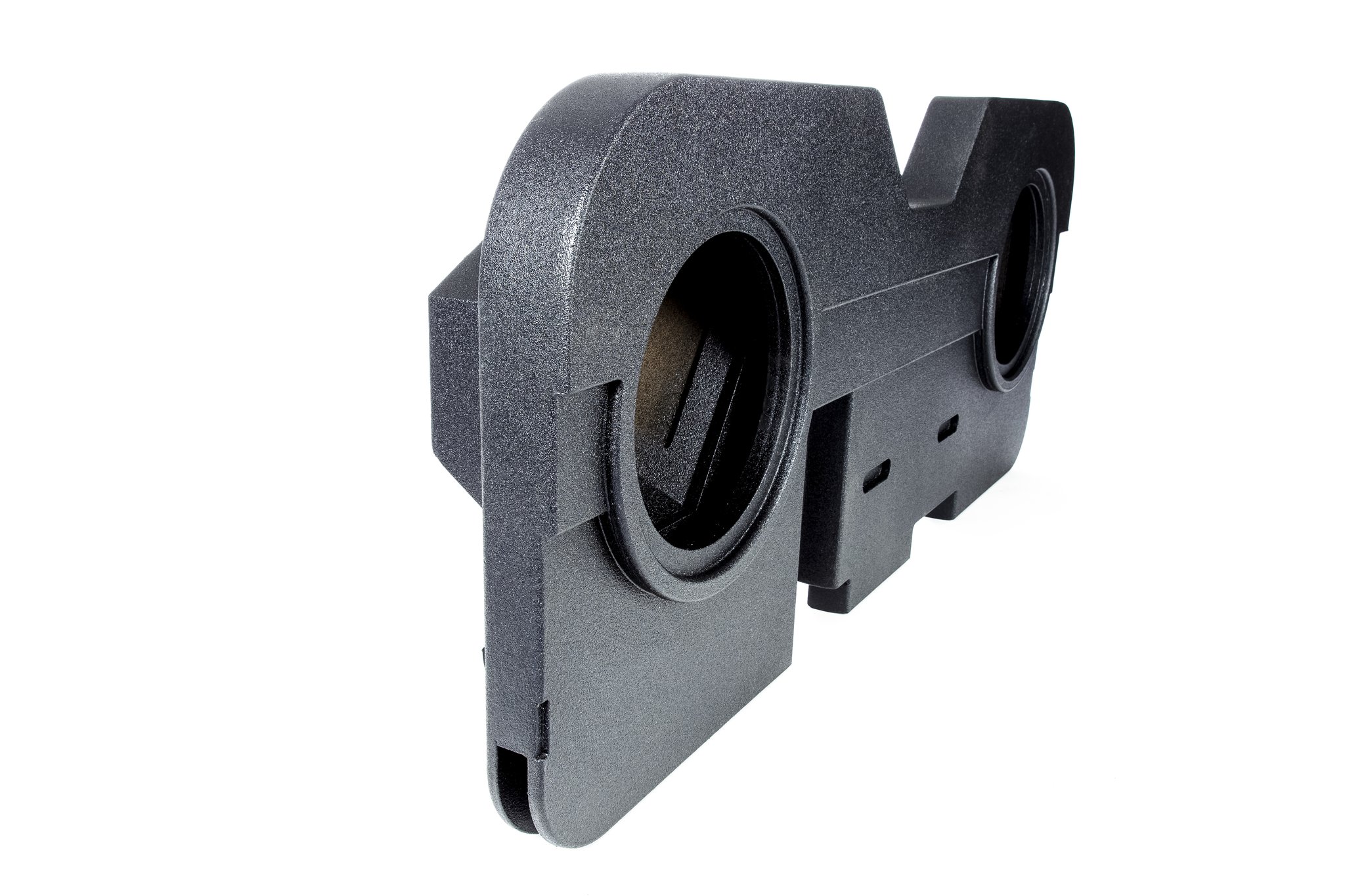

Atrend Dual 12 Inch Rugged Coat Ported Dodge Ram Quad Cab Upfire Enclosure - A202-12V

Model #:A202-12V

Bbox A202-10V Dual 12” Vented Subwoofer / Up-Fire Enclosure Fits 2002-2018 Dodge Ram Quad Cab

  • Accu-Tuned 12” Dual Vented subwoofer enclosure designed for optimum bass response and low-frequency reproduction which is ideal for lower profile sound quality subwoofers.
  • OEM-Fit is designed and engineered specifically for the 2002-2018 Dodge Ram Quad Cab trucks to ensure an OEM fit without impeding the operation of the back seat.
  • High-Grade MDF for Ultimate structural rigidity and no-flex construction.
  • Rugged Liner bed liner coating for increased damping, factory look, and durability.
  • 0.9 Cubic Feet Net Volume divided internal air space per sub is ideal for tight accurate bass reproduction.
  • 41Hz Tuning Frequency for low tight and accurate bass reproduction.
  • Subwoofer Mounting Depth is 8” which is ideal for standard to lower profile subwoofers.
  • Specially Formulated Aliphatic Wood Glue to ensure an airtight seal between all MDF parts with a second application of glue around all internal joints after final assembly.
  • Pneumatic Applied Brad Nails to pull tight and hold the MDF parts during the glue drying process and help assure a no-leak, no-rattle air chamber.

Dimensions Sub Cut Out: 11”, Mounting Depth: 8”, Height: 9”, Width: 57.25”, Depth: 24.75”

Specifications
ConfigurationDual Vented
FinishTuff Coat Sprayliner
Width57.00"
Height25.70"
Depth9.80"
Max Mounting Depth7.50"
Gross VolumePer Sub0.09
Net Volume Per Sub0.09
