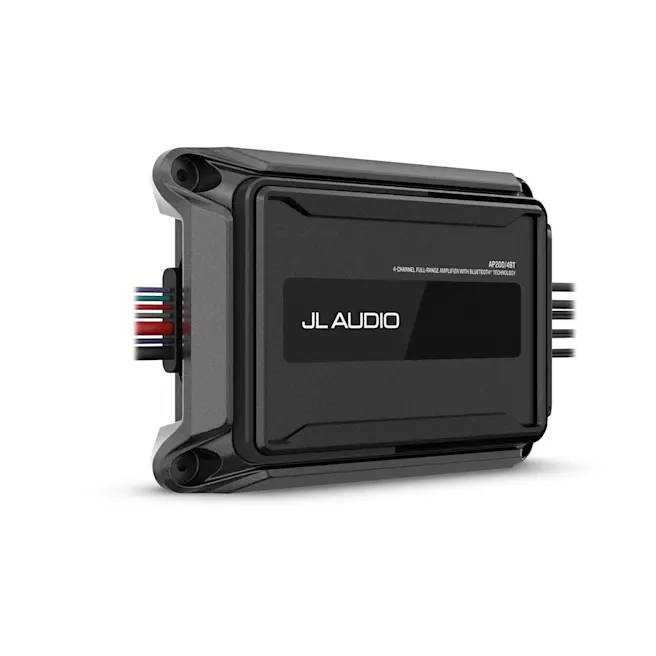

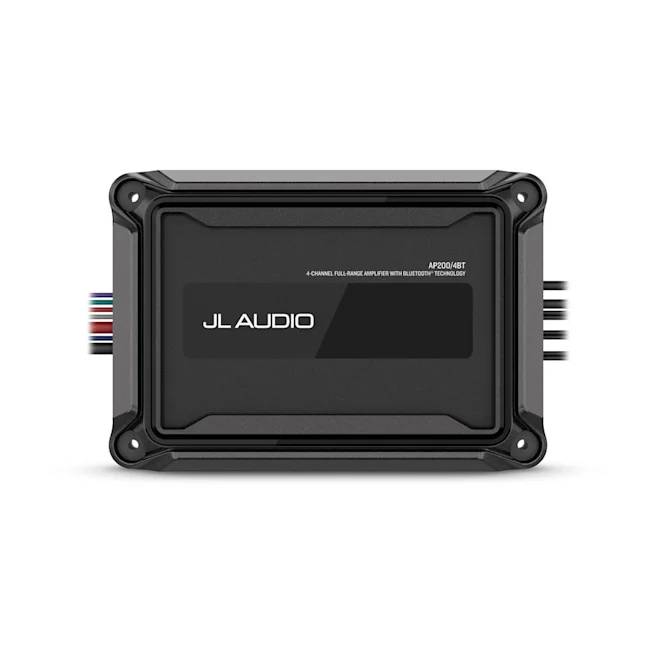

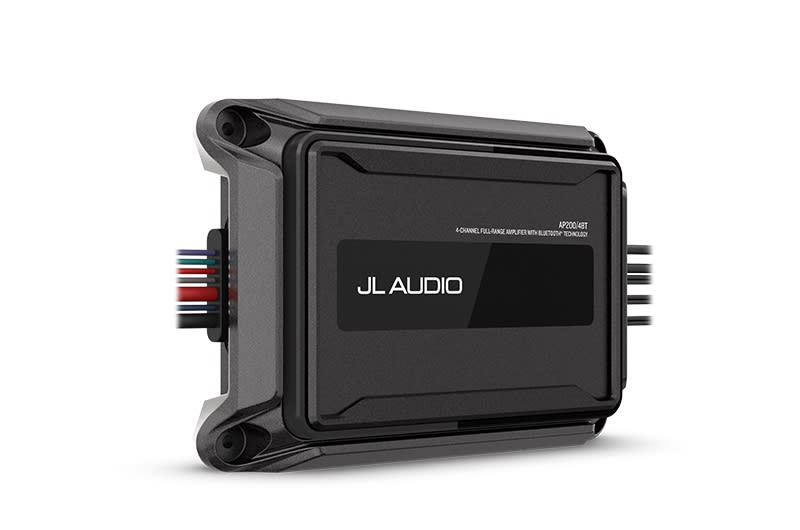

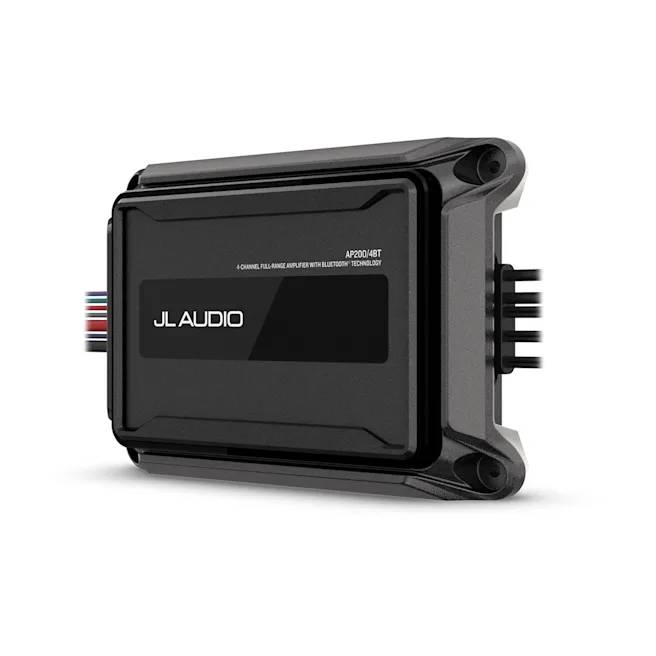

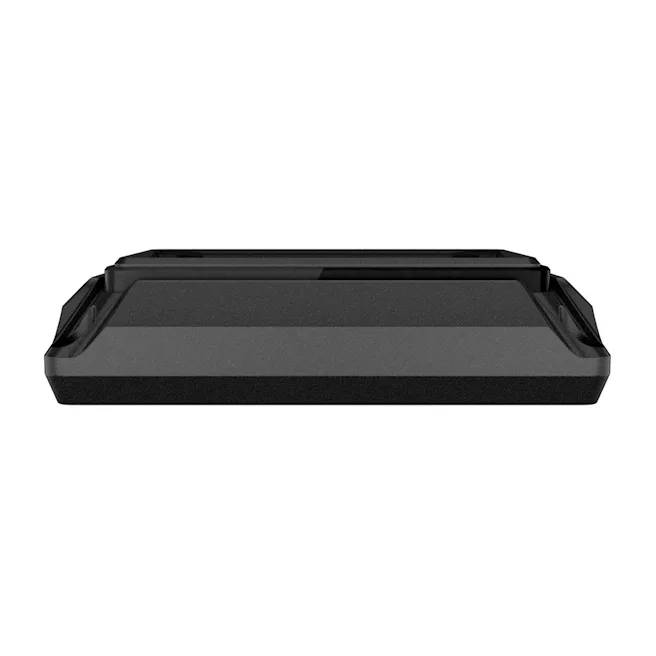

JL AUDIO 4 Channel Compact Marine Amplifier with Bluetooth Technology - AP200/4BT
POWER THE MOMENT
With this tough and ultracompact 4 channel amplifier featuring Bluetooth® technology, you can enjoy every note from every part of your boat.
- EFFICIENT CLASS-D DESIGN
- STREAM AUDIO WITH BLUETOOTH TECHNOLOGY
- IGNITION PROTECTED AND IP67-RATED (EXCLUDING CABLES)

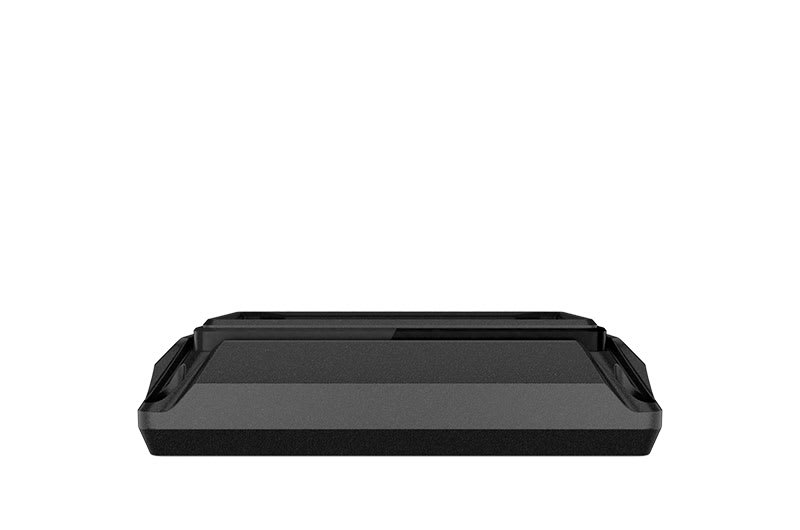

- COMPACT BUILD
CLASS-D AMPLIFIER TECHNOLOGY
The highly efficient Class-D design provides lower battery drain with a higher output than Class-AB amplifiers. This delivers increased power to the connected speakers/subwoofers for an enhanced level of audio performance.
STREAM ON THE GO

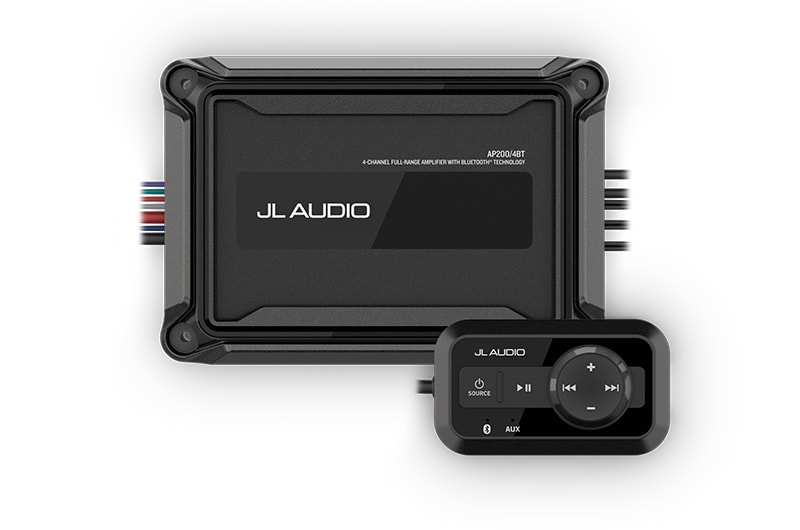

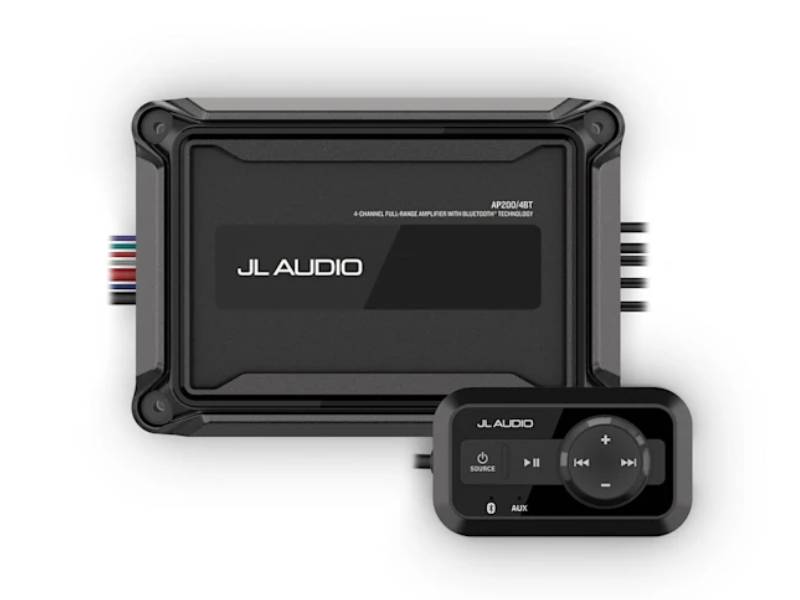

This amplifier pairs with your compatible smartphone for seamless audio streaming and includes a wired remote that can be flush-, surface- or bar-mounted. Its compact size makes it a perfect addition to your small boat, jet ski or overland vehicle.
RUGGED DESIGN

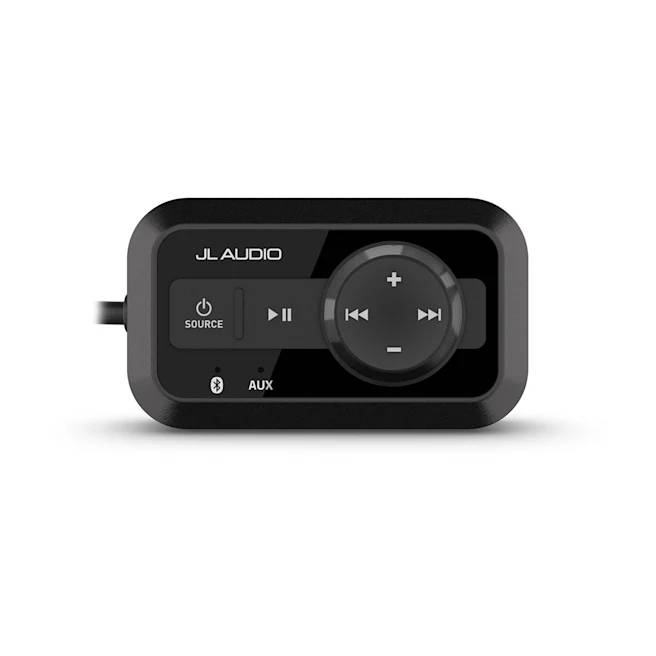

The included remote is IPX7-rated and the amplifier is built to IP67 standards (excluding cables) to withstand abuse in harsh marine environments.
| General | |
|---|---|
| Warranty | 3 years |
| Channels | 4 Channel |
| Physical dimensions (Height) | 1.85" (47 mm) |
| Physical dimensions (Width) | 7.28" (185 mm) |
| Physical dimensions (Depth) | 4.90" (125 mm) |
| Operating voltage | 9-16 VDC |
| Water and dust rating | IP67 |
| Operating temperature range | 4° to 149° F (-20° to 65° C) |
| Audio | |
| Amplifier class | Class D |
| Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD) | 40 W x 4/100 W x 2 (Bridged) |
| Rated continuous (RMS) power (14.4 V input @ 2 Ohm < 1% THD) | 50 W x 4 |
| Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs | >70 dB |
| THD+N @ Rated Power | <1% @ 4 Ω per Channel |
| Frequency response (+0, -1dB) | 20 Hz-20 kHz |
| Input voltage range @ RCA inputs | Switchable from 200 mV-2 V RMS (Low) to 800 mV-8 V RMS (High) |
| Input impedance | 11 kΩ (High) 20 kΩ (Low) |
| Current consumption (Standby) | <1mA |
| Current consumption (Idle) | <700-750mA |
| Fuse rating | 35A |
| Recommended fuse type(s) | AFS, AGU or MaxiFuseâ„¢ |
| Min. copper power/Ground wire gauge | 4 AWG wire |
| Protection circuits | Input under/over voltage Over temperature Output short circuit |
| Signal Processing | |
| Bass boost EQ (0 to +18 dB @ 37 Hz) | Yes |
