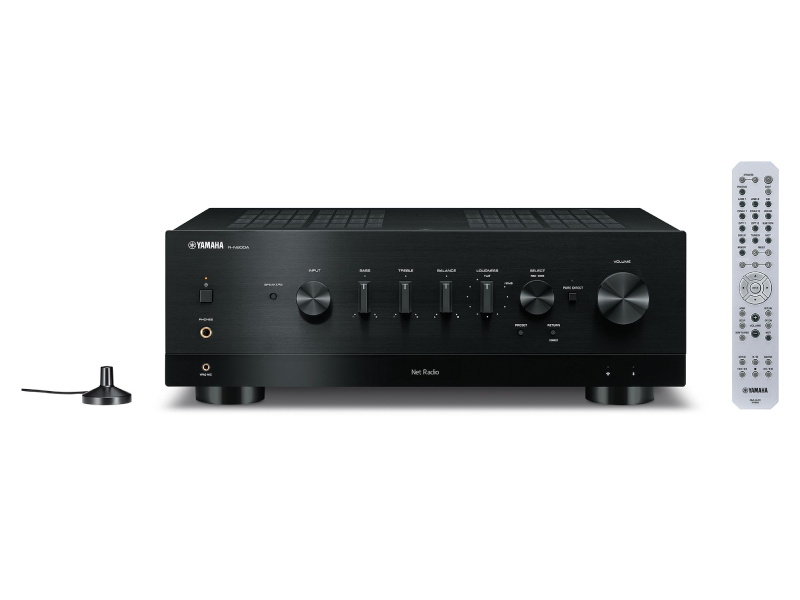

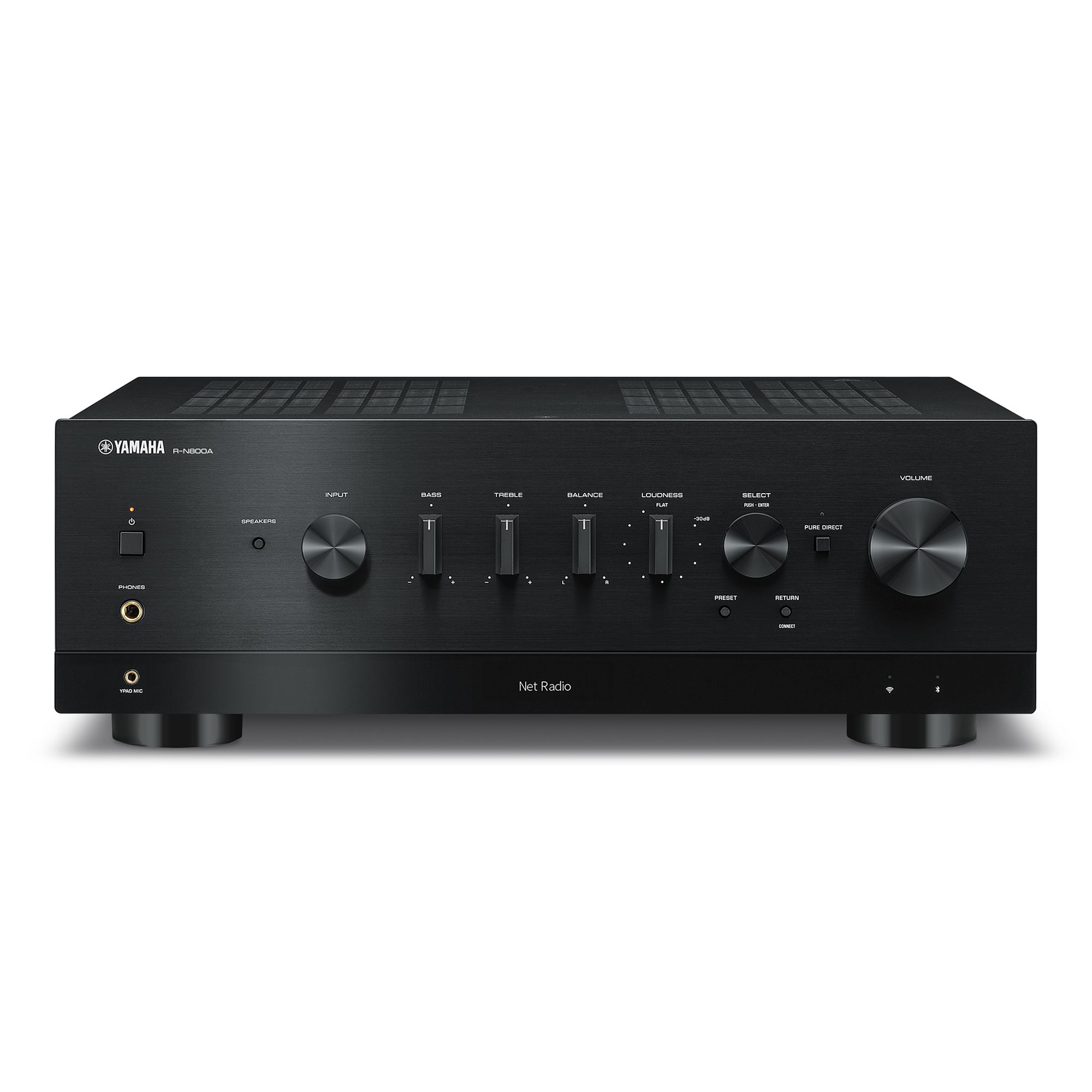

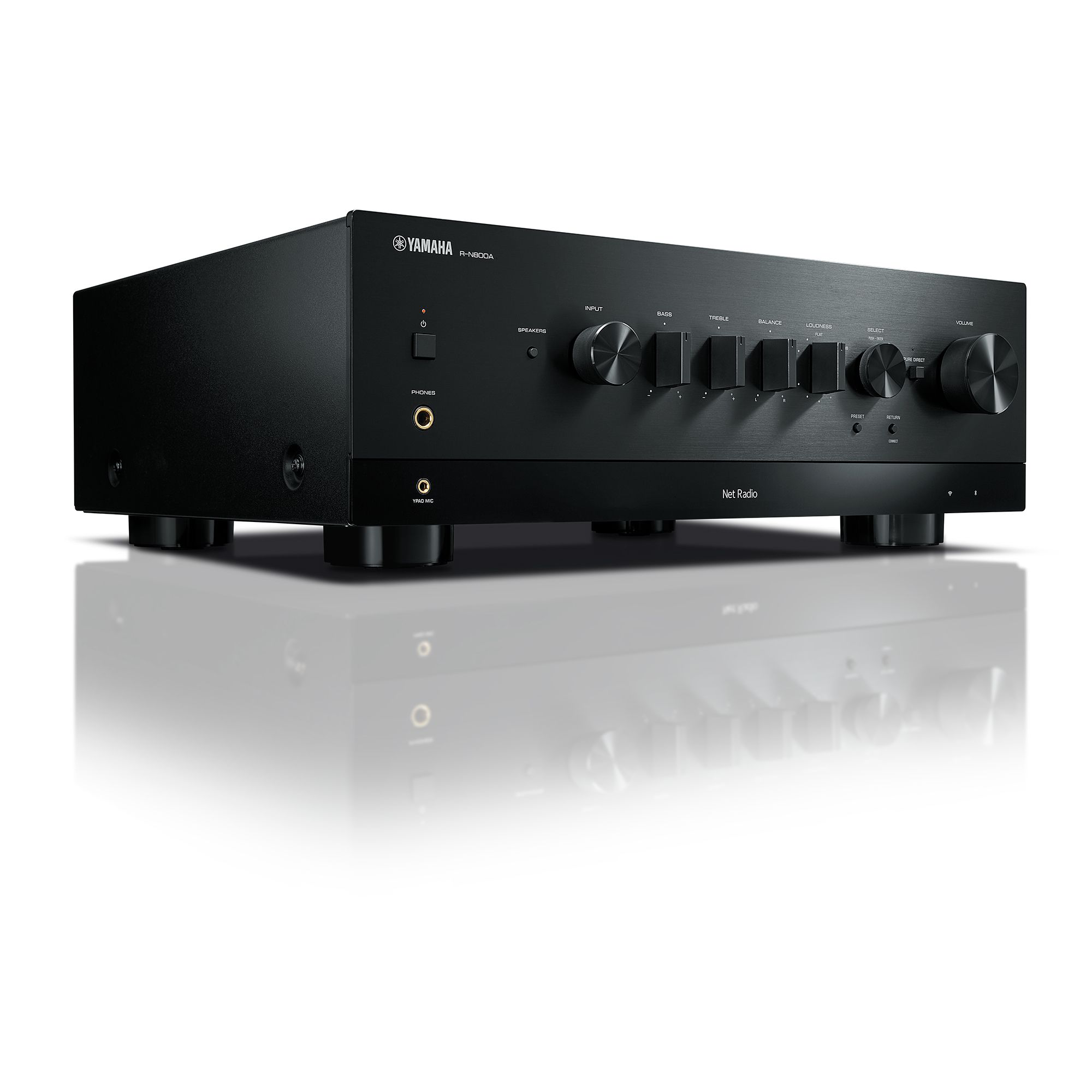

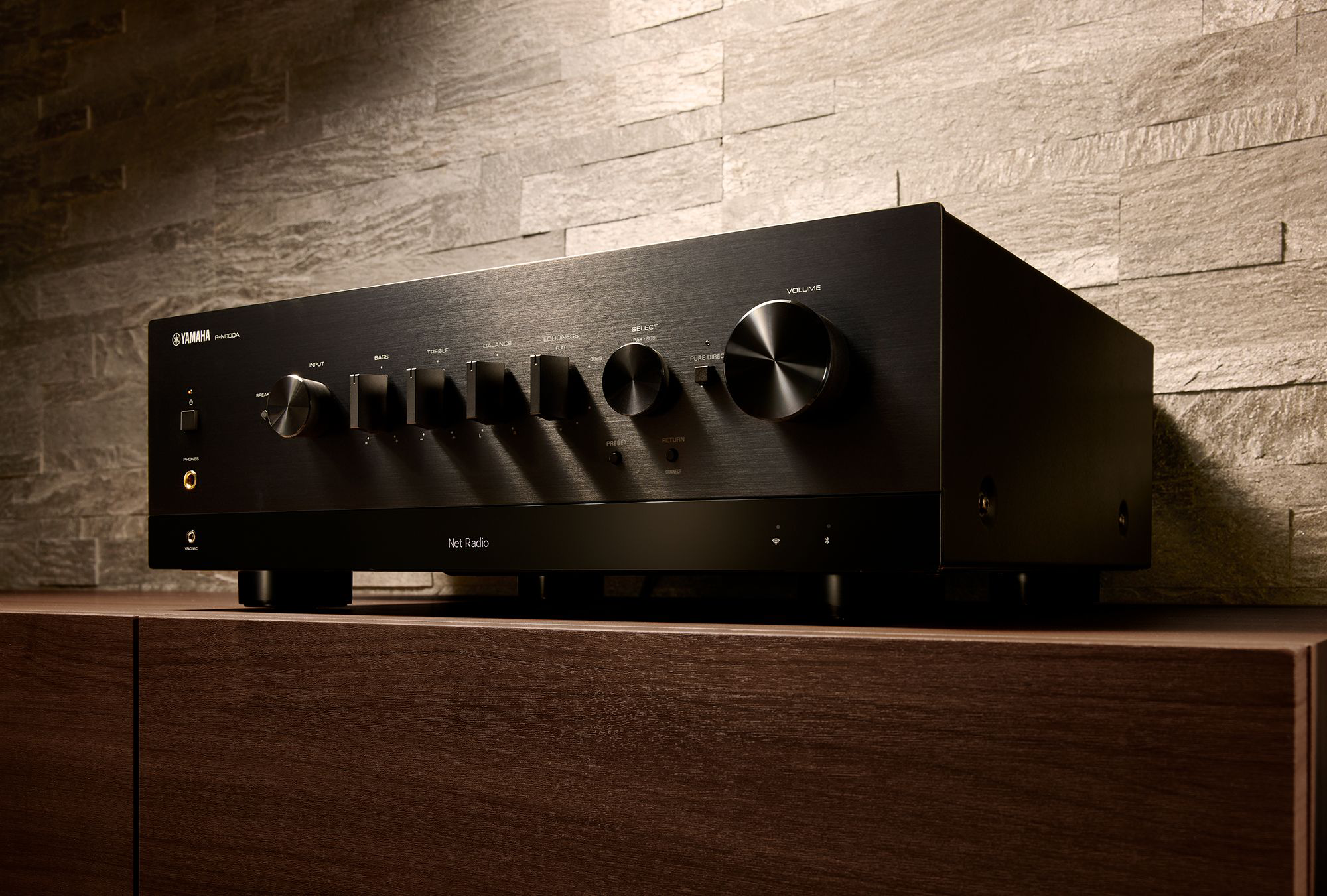

Yamaha Home Audio Network Receiver in Black - RN800A (B)

Model #:RN800A (B)

HIGH-QUALITY SOUND FOR ALL YOUR ROOMS

The R-N800A Network Receiver delivers full-fledged, comprehensive music enjoyment with modern Hi-Fi style. It includes our original YPAO™ sound field correction technology to create an ideal listening environment right in your living room. From streaming services to high-resolution sound sources, you can immerse yourself in a wide range of music sources with superb sound quality and yet a casual style.



TRUE SOUND

This is sound that only Yamaha can realize as the only audio brand in the world that handles everything from the moment a sound is created to the time it reaches the human ear. Simply close your eyes and feel the artist performing right there in front of you, and experience the profound sensation of being truly



SOUND IMAGE

The position of the artist and the instrument, and even the delicate nuances and very atmosphere of the performance space are stunningly reproduced just as they are. The resulting soundstage is so incredibly realistic, you’ll feel as if you were watching the performance unfold right in front of you.

nvironmental factors play an important role in the sonic signature of a room, and with any type of audio. Yamaha’s own YPAO™ automatic calibration technique, refined over decades of use in Home Theater products, has been optimized for the R-N800A to deliver the ideal listening environment, as if you were in a professional audio listening room - without requiring any laborious manual setting adjustments. YPAO™ features precision EQ, which performs exceptionally high-precision equalization with accuracy of up to 192 kHz / 64-bit audio resolution. YPAO™ R.S.C. (Reflected Sound Control) works in tandem to actively control the important early reflection sounds, automatically adjusting and optimizing how the sound is heard in your room, depending on the materials of the walls and the speaker placement. Which means you can enjoy the profound sound and immersive feeling unique to Hi-Fi audio - right in your own living room.



DYNAMICS

As opposed to merely producing powerful sound, we pursue a sense of dynamics that express the contrast between stillness and motion in the music-allowing you to feel the intensely deep emotions in the music and immerse yourself in that musical world.

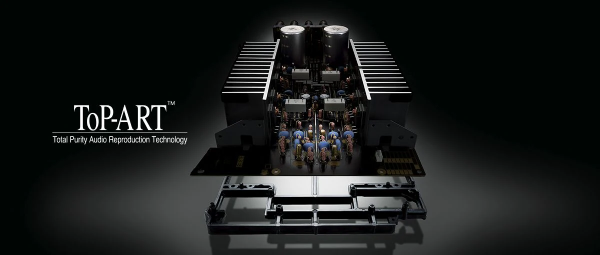

Yamaha boasts over 60 years of history as an audio brand. And the technology of R-N800A comes directly from Yamaha’s legendary Hi-Fi design concept ToP-ART (Total Purity Audio Reproduction Technology), which faithfully maintains the integrity of the audio by combining a meticulously symmetrical left / right circuit layout and signal directness (straightest, shortest signal paths) with a low-vibration chassis of high rigidity, equipped with the special resin frame “Art Base” that absorbs and blocks unnecessary vibration. It maintains sonic purity and dynamism of sound.

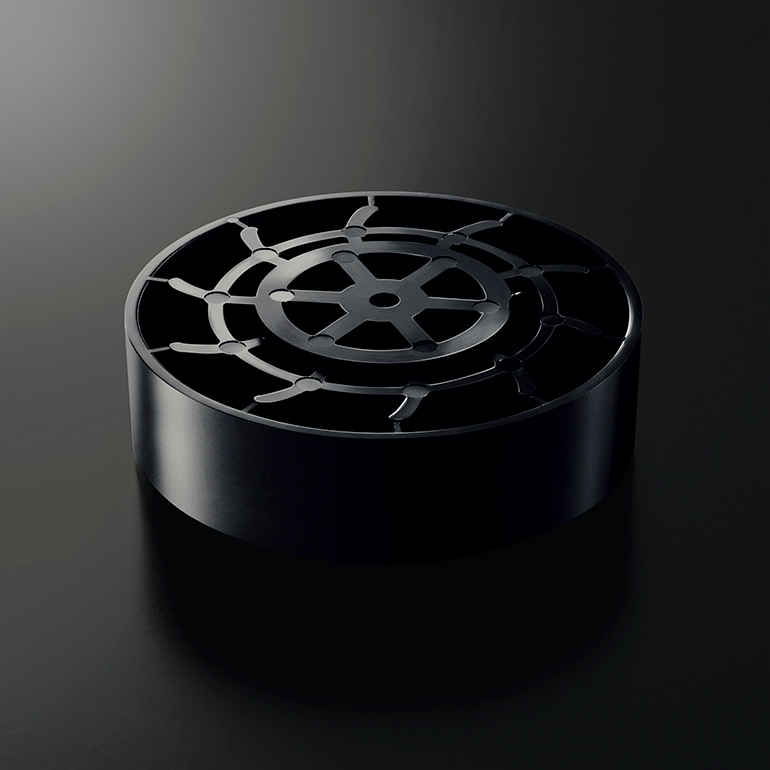

ANTI-RESONANCE FEET

The R-N800A also employs anti-resonance feet designed under a concept of vibration absorption. By arranging thin curved reinforcing bars on the outer periphery and thick straight reinforcing bars in the center, the vibration energy transmitted from the outside of the leg is effectively dispersed and diminished, while maintaining high central rigidity. These make it possible to reproduce a focused sound that lets you fully feel the rhythm and dynamics of the music.



HIGH-PRECISION, HIGH-PERFORMANCE

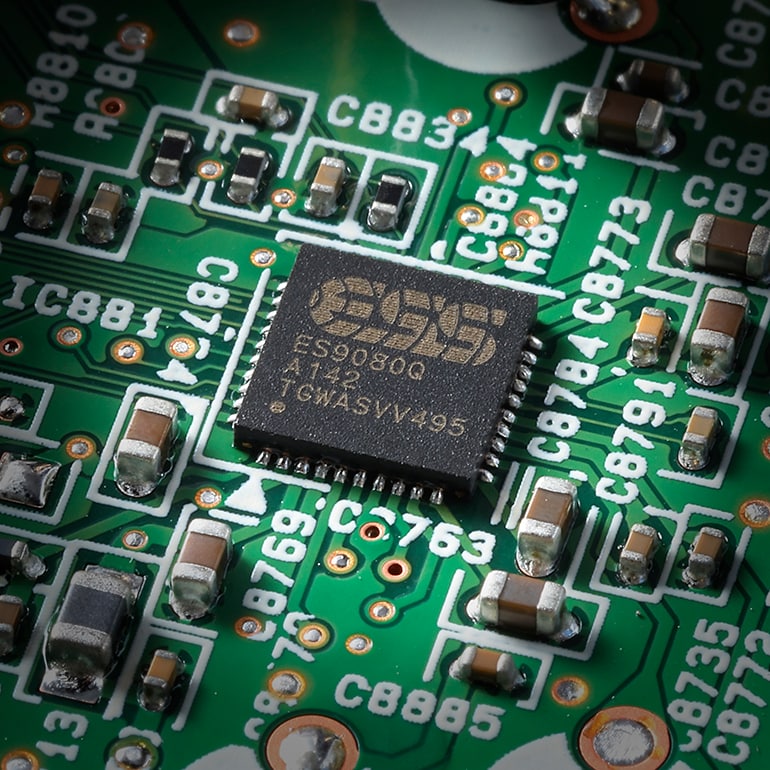

The R-N800A uses the renowned SABRE ES9080Q 384 kHz / 32-bit DAC (from ESS Technology) to deliver superior S/N performance. Combined with Yamaha’s original network module, the unit thoroughly draws out all the sonic merits of high-resolution sound sources, effectively reproducing even the subtle ambience of concert halls and delicate expressive nuances in the sound.

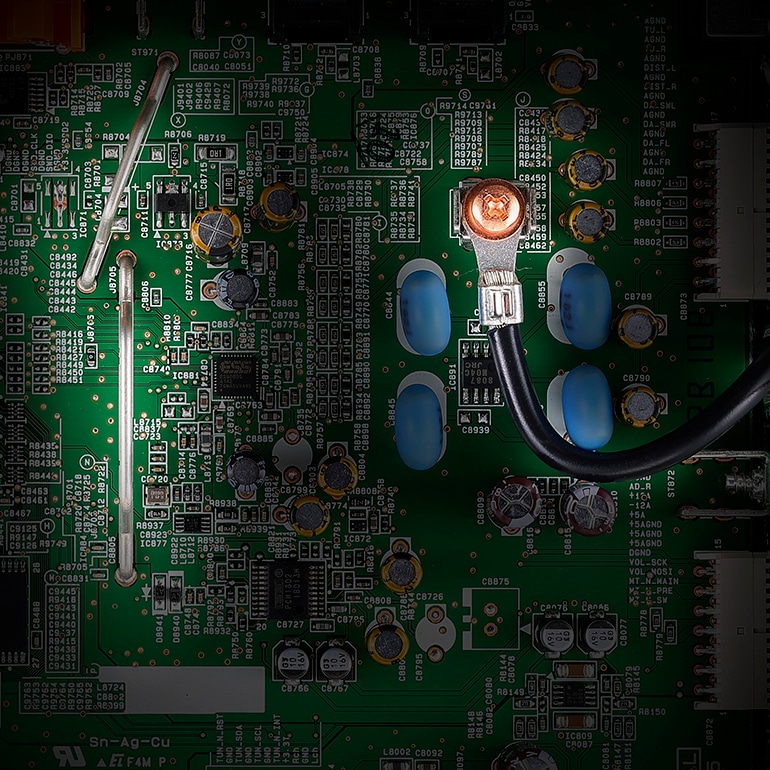

LOW IMPEDANCE CONCEPT

In order to thoroughly eliminate energy loss and degradation of the audio signal, the R-N800A features thick wires for the ground connection a critical feature that establishes the componentry as being truly premium Hi-Fi. In addition, a screw connection is adopted for the output from the power amplifier section in order to strengthen the ground, which is important for audio quality. This gives the R-N800A increased signal-to-noise performance, making it possible to reproduce sound with full clarity.



FULL-FLEDGED MUSICAL EXPERIENCE FROM YOUR SMARTPHONE

The R-N800A is equipped with Yamaha's original MusicCast network system. Moreover, it is compatible with a variety of streaming services such as Amazon Music HD and Spotify, letting you fully enjoy exceptionally high-quality sound unique to today’s high-resolution and lossless sound sources, with complete fidelity. You can also use it to stream Apple Music with Airplay 2. And the MusicCast system lets you easily listen to music anywhere in your home by linking various MusicCast devices with just one app on your smart device.

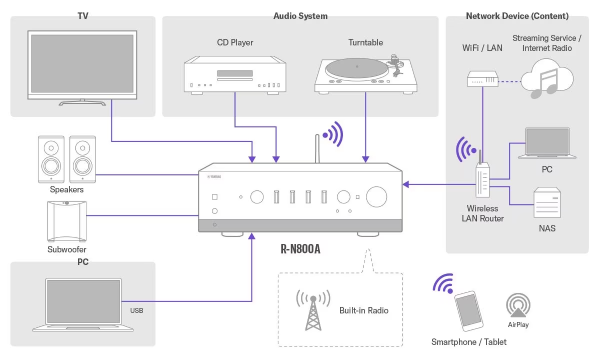

HI-FI QUALITY FOR ALL YOUR MUSIC SOURCES

From audio you’ve stored your PC or a network drive to vinyl records and TV—the R-N800A handles everything, giving you superior sound and drawing out the full sonic splendor inherent in all your entertainment.

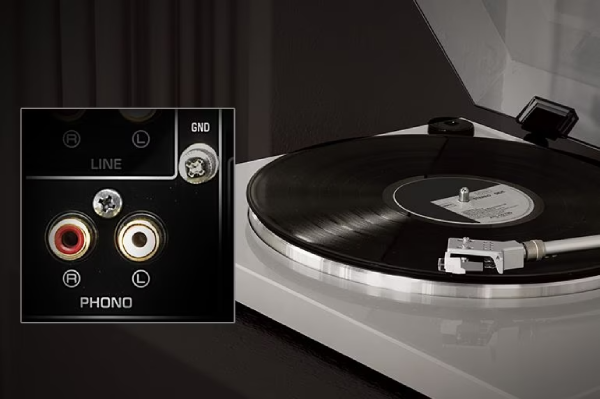

ENJOY YOUR RECORDS, TOO

The comprehensive connectors of the R-N800A include special phono input terminals, letting you easily connect a turntable and enjoy music from your vinyl record collection.

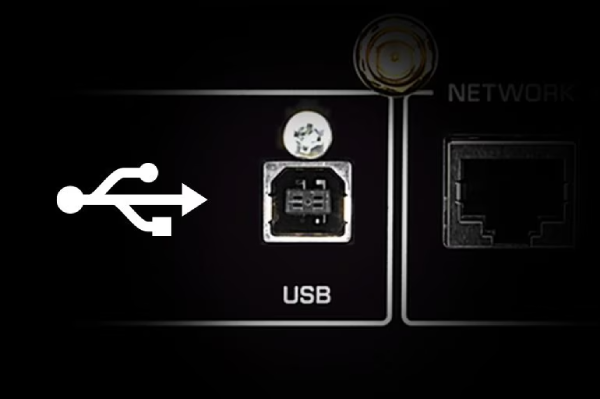

USB DAC FUNCTION

A stable transmission method through asynchronous transmission has been adopted. Moreover, an ultra-precision dedicated crystal clock has been installed to improve signal accuracy. It also supports DSD 11.2MHz native playback and PCM 384kHz playback, letting you enjoy exceptionally high-quality sound that takes full advantage of high-resolution audio sources.

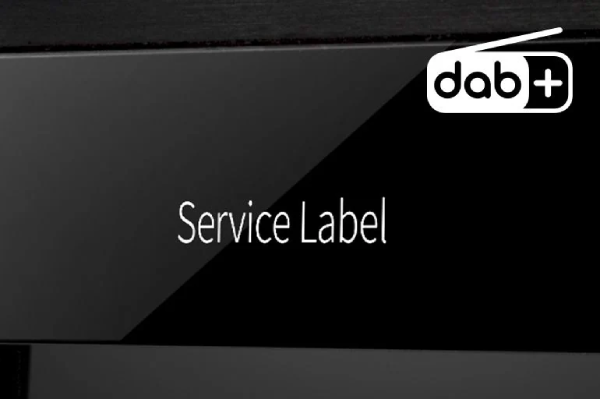

DAB / DAB+ TUNER

DAB and DAB+ are Digital Audio Broadcasting formats that offer a large selection of radio stations with high sound quality. Other benefits include automatic tuning to available stations with a list to choose from, and display of information such as station name. You can preset 40 DAB / DAB+ stations.

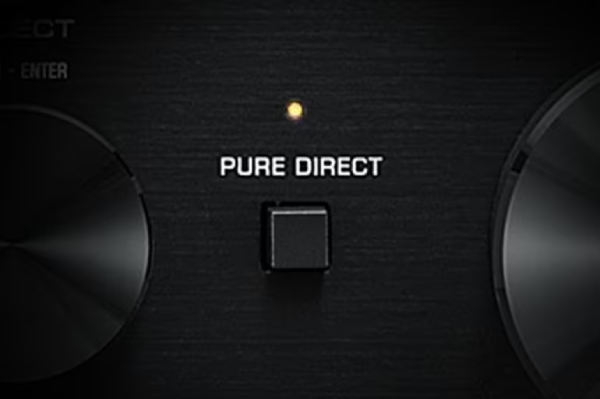

MAXIMUM SOUND PURITY

Pure Direct mode enables the music signals to travel the shortest possible circuit route, bypassing the buffer amp and the tone, loudness and balance controls to virtually eliminate any signal degradation, for the purest sound quality.

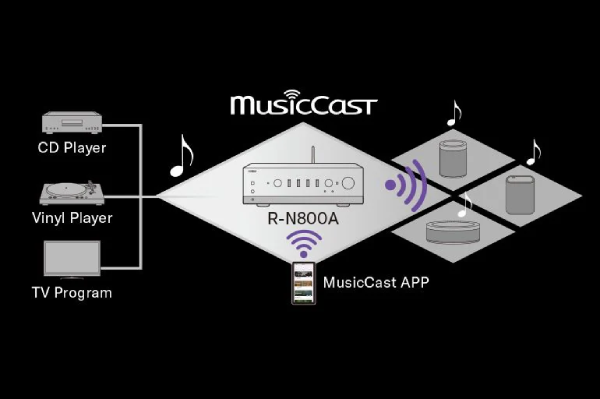

MULTI-ROOM AUDIO - MusicCast

Entertainment content from your records, TV, CDs, and other sources connected to the R-N800A can be sent to other MusicCast devices and enjoyed throughout your home. Moreover, all MusicCast products have been designed first and foremost for superior sound quality. High-res audio formats including Apple Lossless (ALAC) up to 96 kHz, WAV, and FLAC or AIFF up to 384 kHz are supported.



The Yamaha R-N800A delivers music enjoyment with a modern HiFi style. It includes our original YPAO™ technology to create an ideal listening environment. From streaming services to high-resolution sound sources, you can immerse yourself in superb sound quality.

  • Authentic HiFi quality with Top-ART mechanical structure and low impedance concept
  • ESS SABRE ES9080Q Ultra DAC for superior S/N performance
  • YPAO™-R.S.C. (Reflected Sound Control) and precision EQ for ideal listening environment
  • MusicCast lets you stream from your favorite music services
  • High-performance USB DAC function supports DSD 11.2 MHz native playback and 384 kHz playback
  • Original speaker terminals cut from pure brass for highly secure connection
  • Special phono input terminals to enjoy your vinyl record collection.
  • Optical terminal to get your TV sound with HiFi quality

Network section
FM Signal-to-Noise Ratio (Mono/Stereo)69 dB / 68 dB
FM 50dB Quieting Sensitivity (IHF, 1 kHz, 100% Mod., Mono)3 µV (20.8 dBf)
Control (Trigger) OutYes
Subwoofer OutYes
Headphone OutYes
EthernetYes
USB InputUSB DAC (USB B-type)
Phono InputYes
HDMI(ARC)No
Digital InputOptical1, Optical2, Coaxial1, Coaxial2

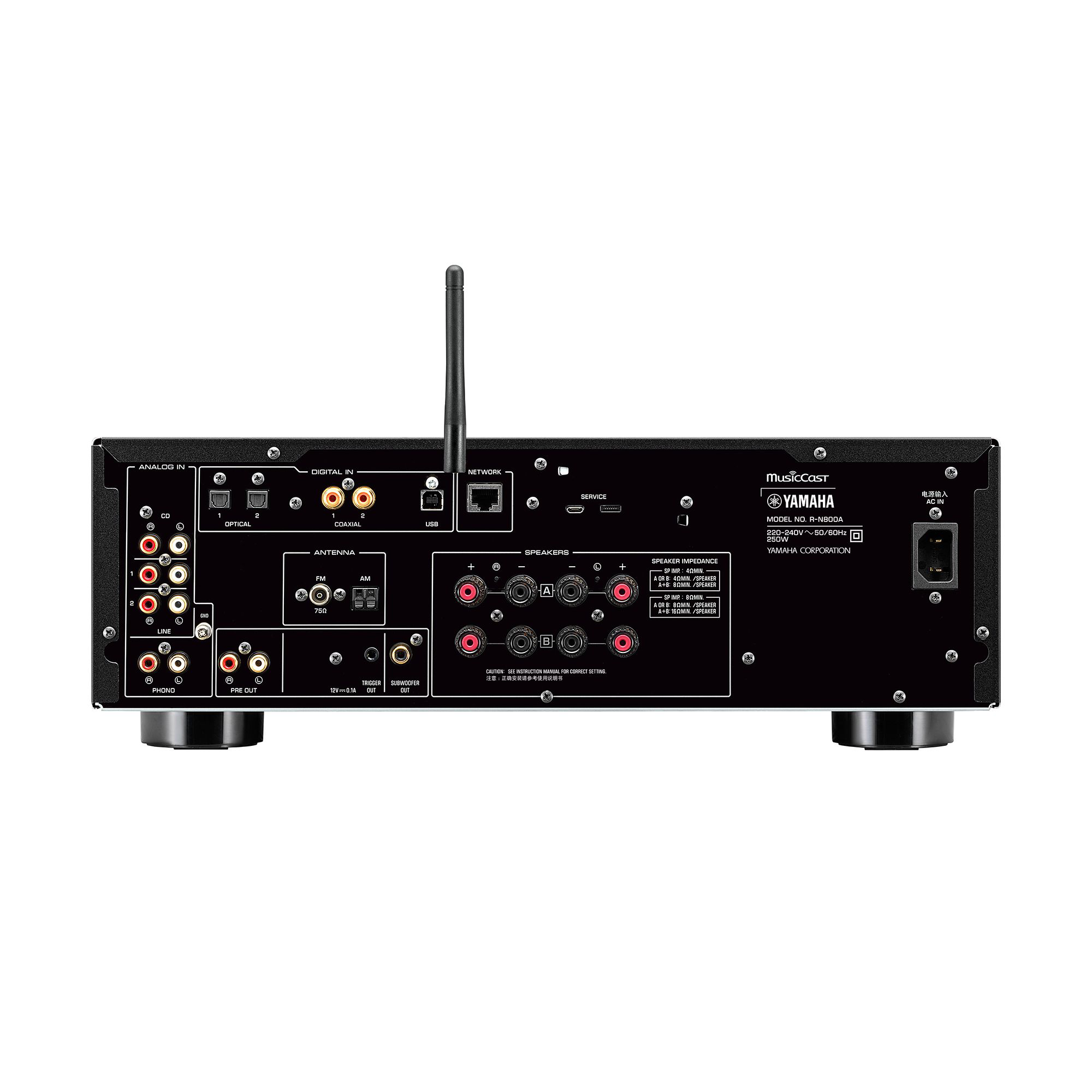

Audio In / OutPhono, CD, line1, line2 / Pre out, Subwoofer out
Signal-to-Noise Ratio (CD)100 dB (Pure Direct ON)
Frequency Response10 Hz-100 kHz 0±1.0 dB, 20-20 kHz0±0.5 (Pure Direct ON)
High Dynamic Power/Channel (8/6/4/2 ohms)140 / 170 / 220 / 290 W
Rated Output Power[20 Hz-20 kHz 0.07 % THD] 100 W+100 W (8 ohms) 120 W + 120 W (6 ohms)
AirPlayYes
BluetoothYes (SBC / AAC)
Wi-FiYes
File FormatMP3, WMA, MPEG-4 AAC, WAV, FLAC, AIFF, DSD
Weight11.4 kg; 25.2 lbs
Dimensions (W x H x D)435 x 151 x 395 (with antenna up: 435 x 232 x 395)+ 17-1/8" x 6" x 15-1/2" (with antenna up: 17-1/8" x 9-1/8" x 15-1/2")
Standby Power Consumption0.1 W (Network standby on/ Wi-Fi connection 1.8 W)
ToP-ARTYes
Pure DirectYes
