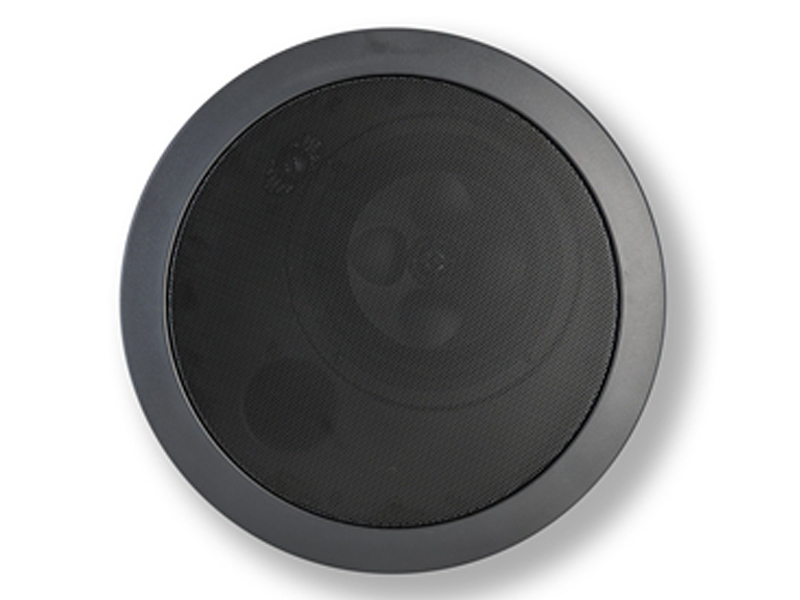

Klipsch IN-CEILING SPEAKERS IC525TB

Model #:IC525TB , UPC #:743878019704
$649.00 / Pair

Klipsch IN-CEILING SPEAKERS IC525TB

Model #:IC525TB , UPC #:743878019704
$649.00 / Pair

Many of the world's most recognized brands including Ron Jon Surf Shop and Bloomingdale's use our commercial speakers to create unique memorable experiences for their customers. Do the same for your business with our intermediate IC-525-T 70-volt speaker.

  • Easy to install and adjust settings
  • Compact design simplifies low-ceiling mounting
  • Deep bass with less compression
  • Horn-loaded for clear sound in any location
  • Multi-tap transformer for distributed audio
  • Includes tile bridge for installation in any ceiling
  • Pairs well with our CA surface mount speakers

Works with Klipsch KPH-525 Pendant Housing for high/no suspended ceiling installs

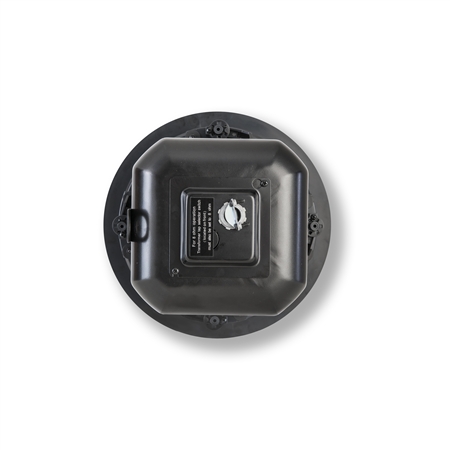

The IC-525-T packs proven materials and wide dispersion horn technology into an installer-friendly UL-certified (2043 and 1480) in-ceiling speaker with an integrated back can and multi-tap transformer.

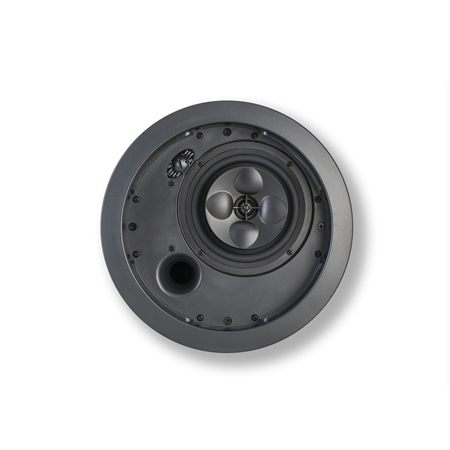

A two-way design the speaker features a 5.25-inch woofer and 1-inch titanium diaphragm compression driver mated to a round Tractrix® Horn with XT technology for smooth response with constant directivity. The 1-inch Tractrix port provides deeper fuller bass with less compression and distortion.

For distributed line applications the IC-525-T features a 70/100 volt multi-tap transformer. A single rotary switch for the 8-ohm bypass and multi-tap setting is conveniently located on the front baffle.

The speaker's included tile bridge allows for easy installation in a suspended ceiling or wherever additional reinforcement of the ceiling material is required. A mudring kit (part # 1010413) can be purchased separately to further simplify drywall installations.

For areas with too high or no suspended ceilings, the addition of the Klipsch KPH-525 Pendant Housing with the IC-525-T provides an alternative, high-aesthetic sound solution.



Specifications
FREQUENCY RESPONSE:65-20k Hz +/- 4dB
SENSITIVITY:89dB 2.83 V/1M
POWER HANDLING:65 watts (16.5V) cont.
MAXIMUM ACOUSTIC OUTPUT: 104dB @ 1M
NOMINAL IMPEDANCE:8 ohms, min 4.2 ohms; switch set in 8 ohm position
ENCLOSURE TUNING: Vented via a 1" Tractrix port
INPUT CONNECTIONS: Terminal Strip
COVERAGE ANGLE: 105 degrees
DIRECTIVITY INDEX:6.5 dB
DIRECTIVITY FACTOR (Q): 4.5
CUTOUT DIMENSIONS: 9.125" (23.18 cm) diameter
OVERALL DEPTH: 8.5" (21.59 cm)
MOUNTING DEPTH:8.313" (21.12 cm)
OVERALL WIDTH:10.75 (27.31 cm) diameter
THRU HOLE WIDTH:9" (22.86 cm) diameter
WEIGHT: 8.25 lbs.
FINISHES: Black and white
TRANSDUCERS: 5.25" woofer, 1" titanium diaphragm compression driver on a 3.5" round XT modified Tractrix Horn
TRANSFORMER TAPS:70V: 30W, 15W, 7.5W, 3.8W 100V: 30W, 15W, 7.5W
BUILT FROM:2008
